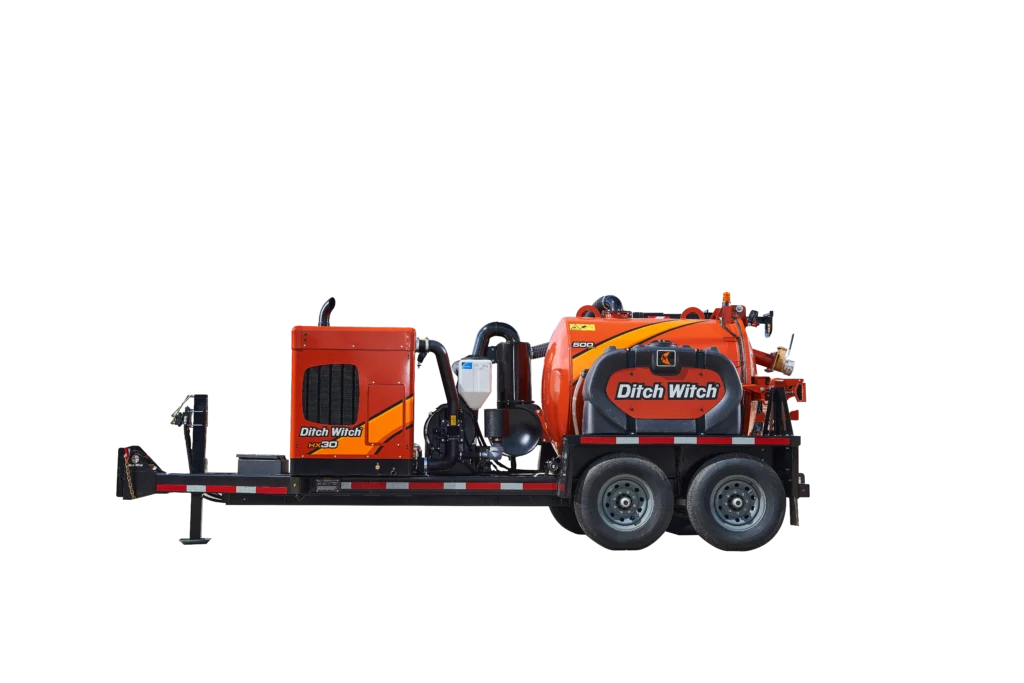

Ditch Witch HX30 Vacuum Excavator
Trailer Vacs
The powerful Ditch Witch HX30 vacuum excavator features a 24.8-hp Kubota diesel engine for advanced performance and productivity on any mid-sized potholing, soft-excavation or cleanup tasks. Customer-driven features meet the needs of the operators who use the machine daily, with reduced operator fatigue and a low-profile design, which scales down unit height without compromising ground clearance. This industry-leading machine offers best-in-class filtration and features a patent-pending design for optimized air flow and increased efficiency.
Equipment Features
Featured Content
The HX30 is equipped with a 500- or 800-gal (1893- or 3028-L) debris tank for any size cleanup job.
The HX30 is available with two size options.
-
- 800-gallon configurations include:
-
- A standard version equipped with a 200-gal freshwater tank and a 20K GVWR trailer.
-
- 800-gallon configurations include:
-
- 500-gallon configurations include:
-
- A heavy version equipped with a 200-gal freshwater tank and a 14K GVWR trailer.
-
- 500-gallon configurations include:
All trailer configurations are NATM compliant and are offered with an optional toolbox.

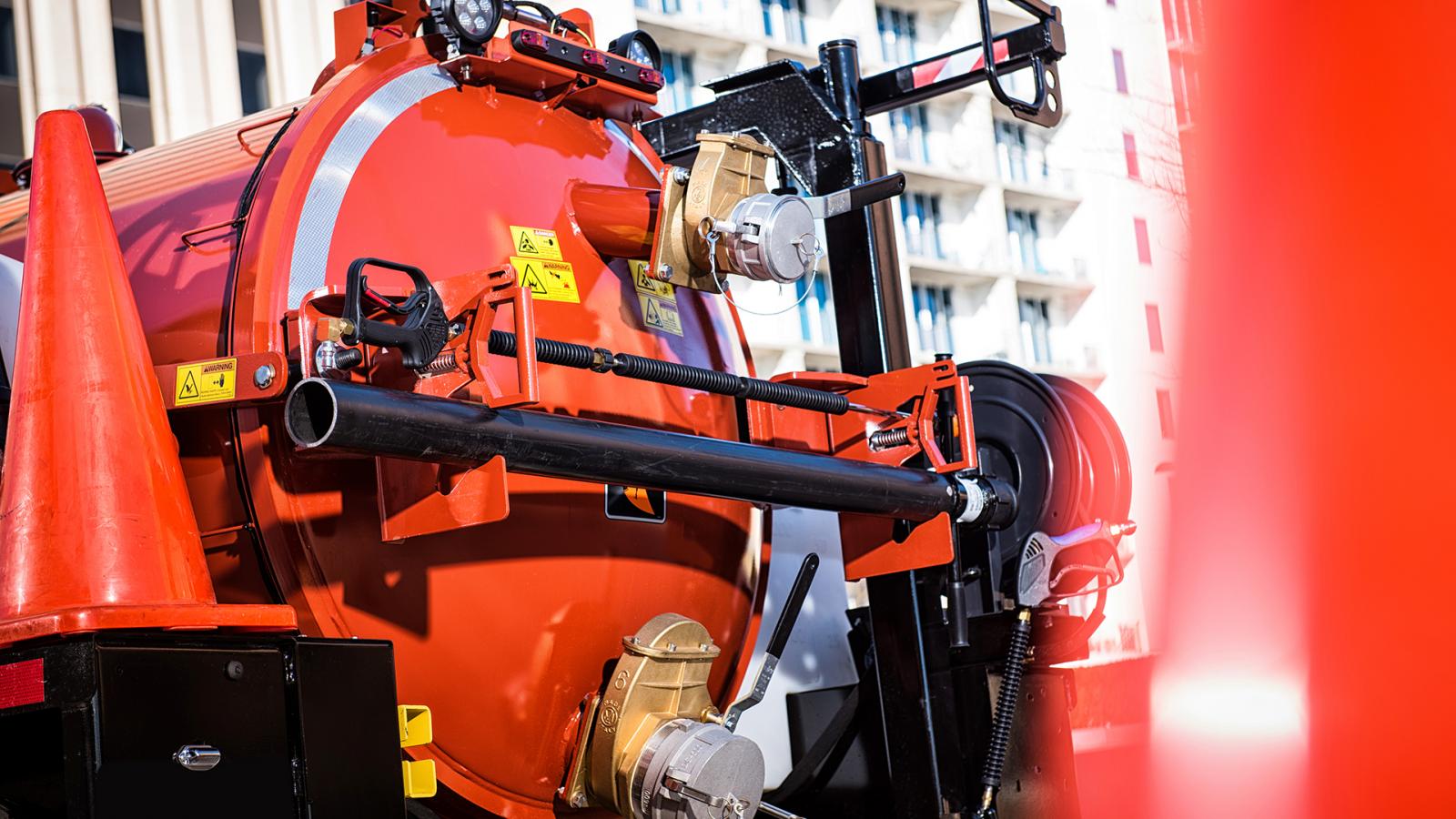

An optional jib boom is available on both HX30 model versions, and has exclusive dual articulation, providing the widest range of motion in the industry. A hose restraint helps control the unit’s hose from jumping while working.
An optional power boom is available on the heavy version of the 800-gal HX30 model and features an advanced design that reduces manual labor for the operator. The hydraulically-powered boom offers 330-degree rotation and includes a self-locking gear, acting as a boom brake, to restrain motion of the boom and maintain its desired position.
The machine can be configured to accommodate operator controls on either the left or right side to meet each contractor’s individual needs.
Vacuum System
US
Metric
Air flow
512 cfm
14.5 m³/min
Vacuum, Max
15 in Hg
381 mm Hg
Vacuum tank capacity
500/800 gal
1893/3028 L
Tank outlet valve size
6 in
152 mm
Filter type
Washable polyester
Filter area
73 ft²
6.8m²
Suction hose
3in
102 mm
Battery
SAE reserve capacity rating
110 min
SAE cold crank rating @ 0°F (-18°C)
800 amps
Electrical system
12V
Dimensions (800 Gal Spoils / 400 Gal Water)
Length
269.4 in
6.84 m
Width
96 in
2.43 m
Height
88.7 in
2.25 m
Weight, empty
8,538 lb
3873 kg
Trailer GVWR
24,000 lb
10,886 kg
Hydraulic System
US
Metric
Flow rate
3.6 gpm
14 l/min
Pressure
2,500 psi
172 bar
Drive type
12V DC
Tank lift cyclinder size (2)
3 in
76 mm
Tilt angle, max
45°
Dimensions (500 Gal Spoils / 200 Gal Water)
US
Metric
Length
232.1 in
5.9 m
Width
96 in
2.44 m
Height
84.2 in
2.14 m
Weight, empty
6,853 lb
3108 kg
Trailer GVWR
14,000 lb
6350 kg
Water System
US
Metric
Water tank capacity
200/400 gal
757/1514 L
Water pump flow
4.2 gpm
15.9 l/min
Water pump pressure, max
3,000 psi
207 bar
Clutch type
Electric pump clutch w/auto de-clutch feature
Hose reel (locking)
50 ft
15.3 m
Antifreeze system
50/50 water/antifreeze mix
The construction-grade HX30 features a durable, narrow design for easy navigation in urban or congested areas.
Featuring a low-profile design, the machine’s full unit height is reduced. This eases maneuverability and allows the unit to fit in height-restrictive areas, without compromising ground clearance so operators can more easily avoid ground-level obstacles.
An exclusive, hose-storage design allows operators to store the hose flat and straight inside the unit frame?a direct customer-driven enhancement. The vac door also features convenient storage for unit tools, including the vac tube and digging lance.
Patent-pending, advanced door linkage automates lockout when fully opened, without requiring any additional effort from the operator.
The HX30 now has hydraulic controls located at the rear of the units, leaving less opportunity for damage to the unit and enhancing operator visibility.
An optional dual work light features two LED floodlights in the back of the vac unit for use in dark or night conditions.
Dimensions (800 Gal Spoils / 200 Gal Water)
US
Metric
Length
269.4 in
6.84 m
Width
96 in
2.43 m
Height
85 in
2.16 m
Weight, empty
8538
3873
Trailer GVWR
20,000 lb
4536 kg
The HX models feature improved serviceability as all maintenance points are more accessible with a liftoff power pack door design.
Standard on the HX30 is a cyclonic filtration system that minimizes filter cleaning frequency, while providing superior filtration, resulting in increased productivity.
An optional spare tire with a carrier allows easy access to a spare when needed, reducing downtime.
The HX30 has a compact footprint capable of meeting the needs of large-production jobs.
Powered by a 24.8-hp (18.5-kW) Kubota diesel engine, the unit provides optimal suction power and water pressure for any mid-sized underground construction job or other non-hazardous cleanup tasks.
The HX30 provides 66 percent more fuel capacity than its predecessor for improved productivity and fewer refueling stops during the workday.
New, patent-pending make/break seal design optimizes air flow for increased efficiency, and simplified plumbing.
A standard, cyclonic three-stage filtration system cleans the air before it reaches critical components. It is comprised of the debris tank, cyclonic filter and 0.5-micron washable vacuum filter – offering the industry’s best filtration for maximum protection of key components.
Featuring outstanding suction and water pressure, the HX30 is equipped with an efficient 512-cfm (14.5-m3/min) blower, and a powerful water system with water-pressure capacity of 3,000 psi (207 bar) and 4.2-gpm (16-L/min) flow.
Power
US
Metric
Engine
Kubota® D1105
Fuel
Diesel
Cooling medium
Liquid
Aspiration
Natural
Number of cylinders
3
Manufacturer’s gross power rating
24.8 hp
18.5 kW
Emissions compliance
EPA Tier 4
EU Stage IIIB
Rated speed
3,000 rpm
Fuel tank capacity
25 gal
94.6 L
Noise Level
Sound power
104 dBA
Sound pressure
77 dBA
Ditch Witch HX30 Vacuum Excavator
The Ditch Witch HX30 is built for utility crews, municipalities, and contractors who need a compact, productive vacuum excavator for potholing, soft excavation, valve box cleanout, and non-hazardous jobsite cleanup. Available through Ditch Witch West, this Ditch Witch vacuum trailer gives crews the capacity, suction, and water pressure needed for mid-sized underground construction work across Alaska, Arizona, California, Hawaii, Montana, Oregon, and Washington.
For crews comparing new vacuum excavators or narrowing their search to trailer vacs, the HX30 is a practical fit when maneuverability, tank capacity, and daily service access all matter.
Ditch Witch HX30 Specs and Jobsite Fit
The Ditch Witch HX30 specs are designed around productive excavation without moving into a larger truck-mounted unit. The HX30 includes a 24.8-hp Kubota diesel engine, 512 CFM airflow, 15 in Hg maximum vacuum, and a water system rated up to 3,000 psi with 4.2 GPM flow.
Configuration options include:
- 500- or 800-gallon debris tank capacity
- 200- or 400-gallon freshwater tank capacity
- 14K, 20K, or 24K GVWR trailer configurations
- 3-inch suction hose
- 6-inch tank outlet valve
- Washable polyester filtration with 73 sq. ft. filter area
- Optional jib boom or power boom on select models
That range gives contractors room to match the machine to utility exposure, restoration limits, towing requirements, and crew workflow.
Why Choose the HX30 Vacuum Excavation Trailer?
The HX30 works well for contractors who need a vacuum excavation trailer that can handle frequent potholing, urban utility work, and cleanup in tighter areas. Its low-profile design helps crews work around congested streets, jobsite access limits, and height-restricted areas.
The filtration system is also a key consideration. The HX30 uses a cyclonic three-stage filtration system to help protect core components and reduce filter cleaning frequency. For crews running daily excavation routes, that can mean fewer interruptions and better uptime.
Ditch Witch West can also help crews compare the HX30 with larger truck vacs, available used vacuum excavation equipment, and related underground construction equipment.
Support, Parts, and Locations
Choosing the right machine is only part of the decision. Ditch Witch West supports contractors with equipment service, Ditch Witch parts, used equipment, and financing options. Crews can also contact a Ditch Witch West location to discuss availability, attachments, service intervals, and whether the HX30 is the right fit for their work.
Talk to Ditch Witch West About the HX30
The Ditch Witch HX30 is a strong fit for utility crews that need reliable vacuum excavation performance in a trailer-mounted package. Contact Ditch Witch West to check available inventory, compare purchase options, or schedule parts and service support for your equipment.
Is the Ditch Witch HX30 better for air or hydro excavation?
The HX30 is commonly used for hydro excavation, with a water system rated up to 3,000 psi. For crews comparing air vacuum excavation systems and hydro options, soil type, utility sensitivity, backfill needs, and local job specs should guide the decision.
What size jobs is the Ditch Witch HX30 best suited for?
The HX30 is built for mid-sized potholing, soft excavation, and cleanup work. It is a strong fit for utility exposure, municipal maintenance, fiber and telecom projects, and infrastructure crews that need trailer-mounted mobility.
Where can I get HX30 parts and service?
Ditch Witch West provides parts and service support through locations across the western U.S., including Alaska, Arizona, California, Hawaii, Montana, Oregon, and Washington.
