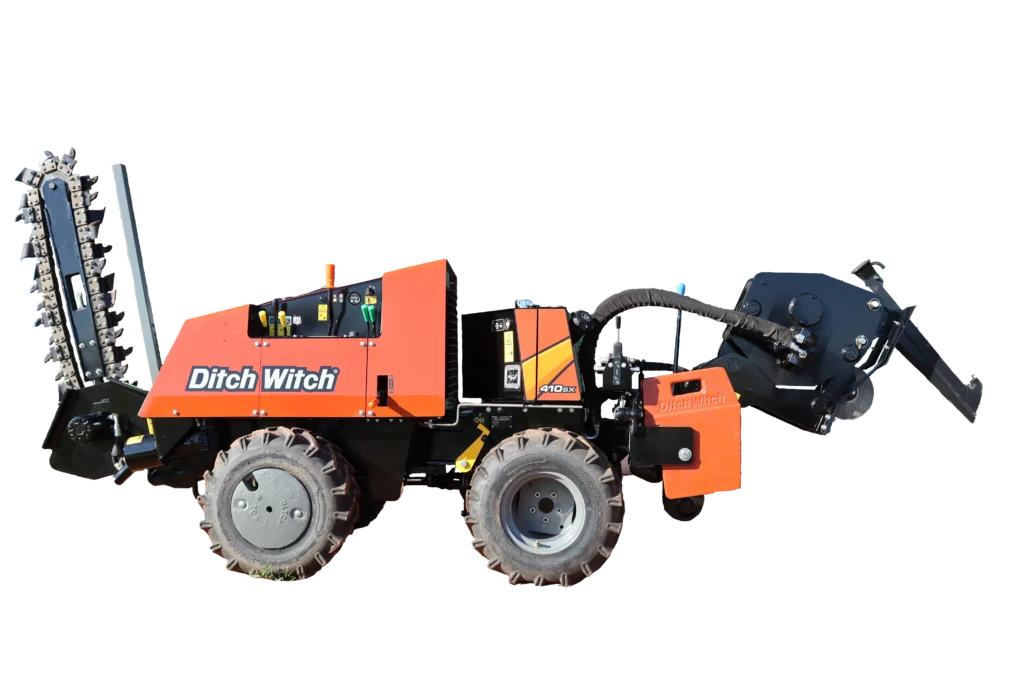

Ditch Witch 410SX Vibratory Plow
Trenchers
The Ditch Witch 410SX is the most outstanding articulated-steer vibratory drop plow in its horsepower class. With dozens of innovative features, including a plow vibrator with automatic blade centering, the 410SX quickly and efficiently installs communication lines, natural gas and water services, or a complete underground sprinkler system without digging a trench. Need a trench? The 410SX can do that, too.
Equipment Features
Featured Content
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
Battery
U.S
Metric
SAE cold crank rating @ 0°F (-18°C)
800 amps
Dimensions
U.S
Metric
Height, max
63.5 in
1.61 m
Length
w/out plow and trencher
118 in
3 m
w/plow only
151 in
3.8 m
Width, max
56 in
1.42 m
Angle of approach
21°
Angle of departure
17°
Wheelbase
46 in
1.17 m
Plow cover depth, max
26 in
660 mm
Weight
Basic unit w/18-in blade and 36-in chain
3,910 lb
1773 kg
Fluid Capacities
U.S
Metric
Fuel tank
8.5 gal
32.2 L
Hydraulic reservoir
12.7 gal
48.1 L
Optional front-mounted trencher attachment features an auger for fast spoils removal.
Vibratory plow trolley automatically centers itself when the plow blade is raised from the ground; a manual lock secures the trolley during transport.
Articulated-frame steering enables maneuvering around trees and other obstacles.
Oscillating rear axle keeps four-wheel drive engaged, for excellent traction and drawbar.
Operation
U.S
Metric
Ground drive speed, max
Forward
2.9 mph
4.6 km/h
Reverse
1.5 mph
2.5 km/h
Material installation diameter, max
Pull blade
3 in
75mm

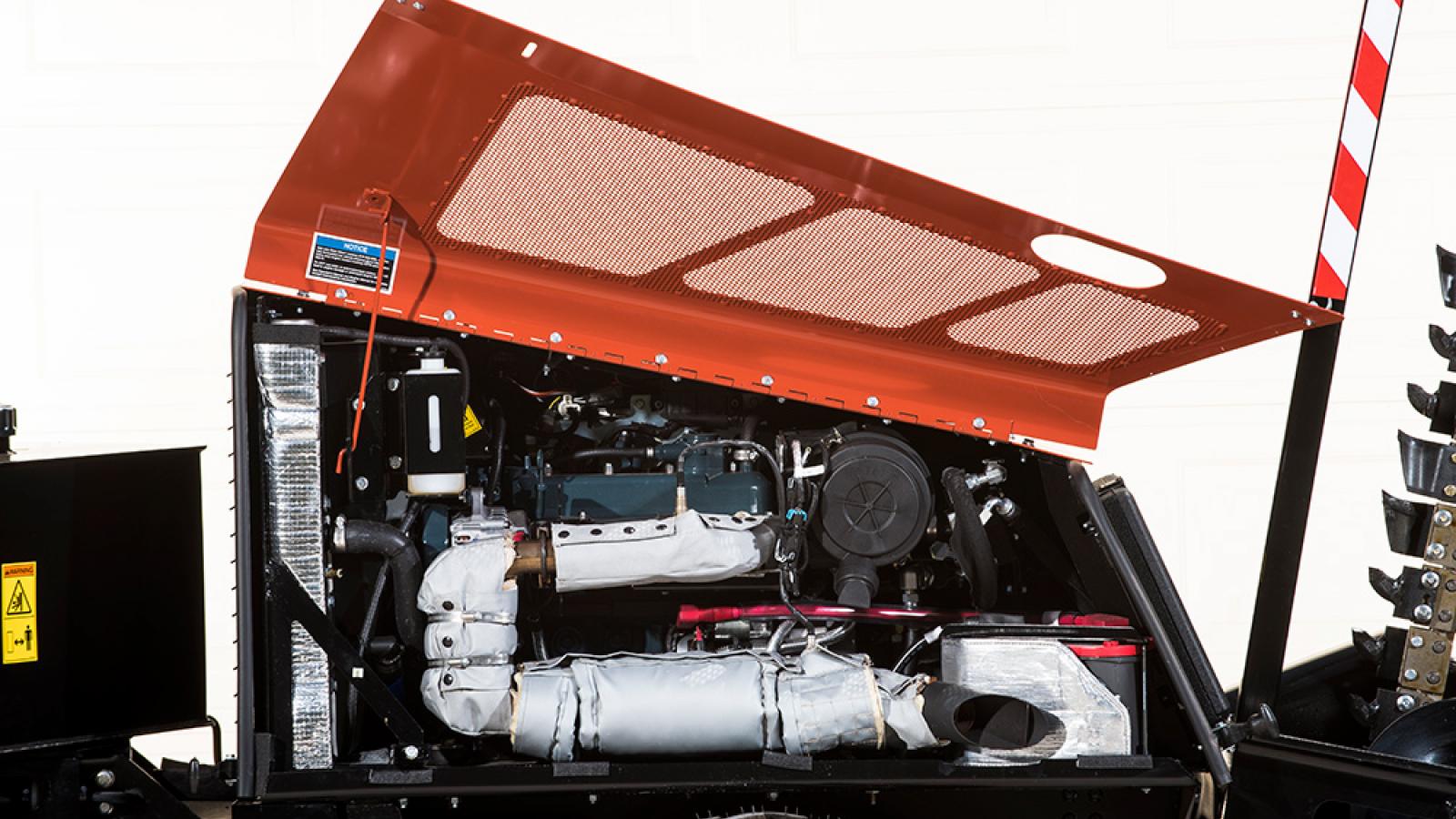

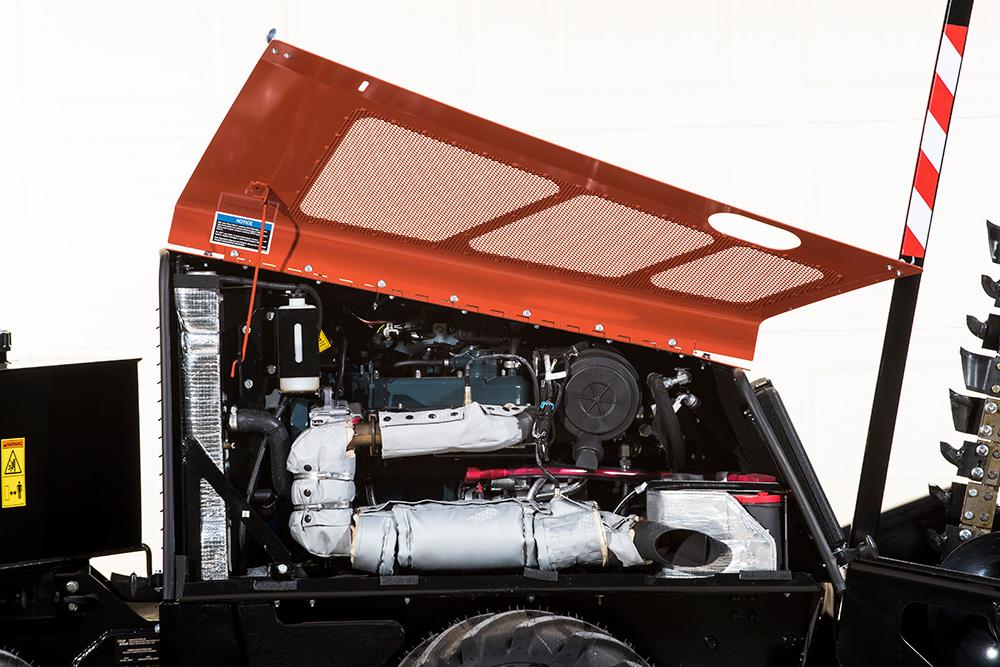

Emissions-compliant engine is enclosed for quiet operation and vibration-isolated to reduce operator fatigue.
49.6-gross-hp (37-kW) Kubota® gas engine provides the power you need for the most demanding conditions.
Power
U.S
Metric
Engine
Kubota® WG1605-G-E3
Fuel
Unleaded gasoline
Cooling medium
Liquid
Aspiration
Natural
Number of cylinders
4
Displacement
93.79 in3
1.537 L
Bore
3.11 in
79 mm
Stroke
3.09 in
78.4 mm
Rated speed
3,600 rpm
Manufacturer’s gross power rating (per SAE J1995)
49.6 hp
37 kW
Emissions compliance
EPA LSI
Drive type
Ground
Hydrostatic
Plow/trencher/auxiliary
Hydrostatic gear pump
Tires, max
26 x 12-12
Hydraulic System
U.S
Metric
Ground drive
Pressure
4,000 psi
276 bar
Flow rate
18 gpm
68 l/min
Attachment
Pressure
3,000 psi
207 bar
Flow rate
20.3 gpm
77 l/min
Auxiliary
Pressure
2,000 psi
138 bar
Flow rate
8.4 gpm
31.8 l/min
Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
Operator station features easily accessible, easy-to-understand, color-coded controls; one lever controls ground speed, direction and steering.
When attachment or ground drive is engaged, operator-presence system stops the engine if operator releases the control.
