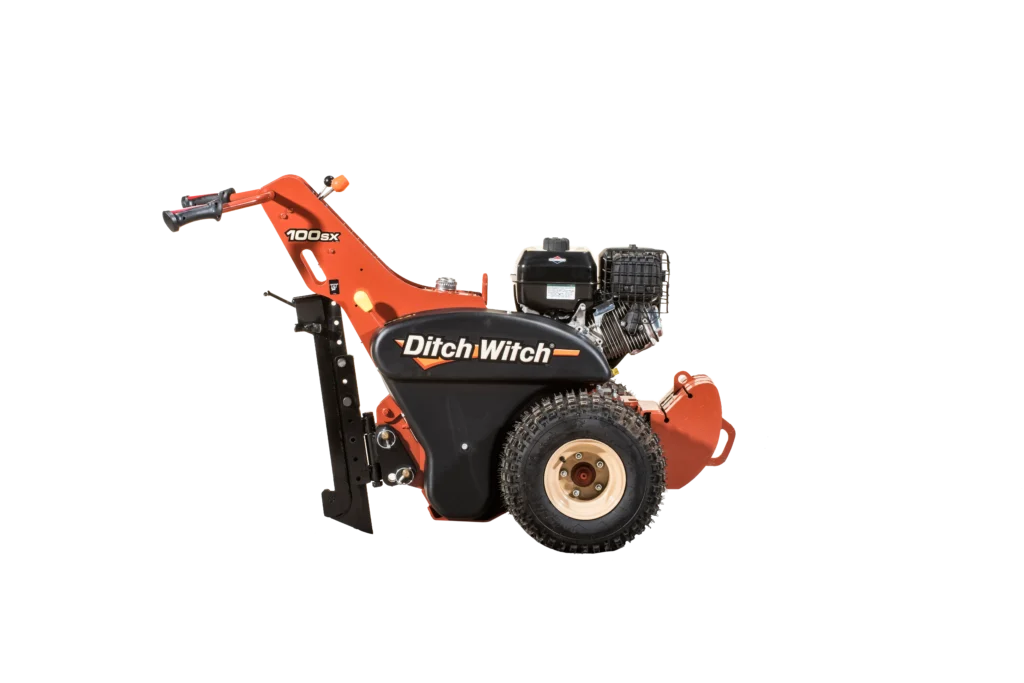

    100SX
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Hydraulic System



    Hydraulic System

    U.S
    Metric





    Ground drive





    Pressure
    2,500 psi
    172 bar



    Flow rate
    2.2 gpm
    8.3 l/min

  • Productivity
    100SX
    Productivity

    Feed and pull blades available for installing cable, pipe and other material.

    Hydrostatic ground drive provides greater traction, maneuverability and durability.

    Minimal maintenance requirements; easy access to service points.

  • Power
    100SX
    Power
    A reliable, 13.5-hp (10-kW) Briggs & Stratton XR2100 Series gas engine delivers the power you need without assaulting your ears.
  • Power



    Power

    U.S
    Metric





    Engine
    Briggs & Stratton® XR 2100 Series




    Fuel
    Gasoline




    Cooling medium
    Air




    Aspiration
    Natural




    Number of cylinders
    1




    Displacement
    25.6 in3
    420 cm3



    Bore
    3.54 in
    90 mm



    Stroke
    2.6 in
    66 mm



    Rated speed
    3,600 rpm




    Manufacturer's gross power rating (per SAE J1940)
    13.5 hp
    10 kW



    Drive type





    Ground
    Hydrostatic




    Plow
    Belt w/hand clutch




    Tires





    Max
    18 x 11-8




    Min
    16 x 6.5-8


  • Dimensions



    Dimensions

    U.S
    Metric





    Height, min/max
    40 in
    1.02 m



    Length, min
    67 in
    1.7 m



    Width





    Max
    35 in
    889 mm



    Min
    32.5 in
    825.5 mm



    Ground clearance, max
    4.1 in
    104 mm



    Plow cover depth, max
    12 in
    305 mm



    Basic unit weight
    720 lb
    326 kg

  • Operation



    Operation

    U.S
    Metric





    Ground drive speed, max





    Forward/reverse
    92 fpm
    28 m/min



    Material installation diameter, max





    Pull blade
    0.88 in
    22 mm



    Feed blade
    0.5 in
    13 mm



    Material bend radius, max/min





    Feed blade
    1 in
    25 mm



    Plow blade width





    Max
    0.77 in
    20 mm



    Min
    0.38 in
    10 mm



    Plow blade depth





    Max
    12 in
    305 mm



    Min
    6 in
    152 mm

  • Fluid Capacities



    Fluid Capacities

    U.S
    Metric





    Fuel tank
    1.8 gal
    6.8 L



    Hydraulic reservoir
    3.5 gal
    13.2 L



    Dimensions are dependent on plow blade size, tire size and selection of trencher options. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.



  • Rugged Design
    100SX
    Rugged Design

    Versatile plow blade can bury pipe and cable with cover of 6, 8, 10, or 12 inches (150, 200, 250, or 305 mm).

    Compact size allows access through a standard yard gate.

    Designed to install power and communications lines up to 1 inch (25 mm) in diameter and natural gas, water service and sprinkler systems up to 0.75 inches (19 mm) in diameter.

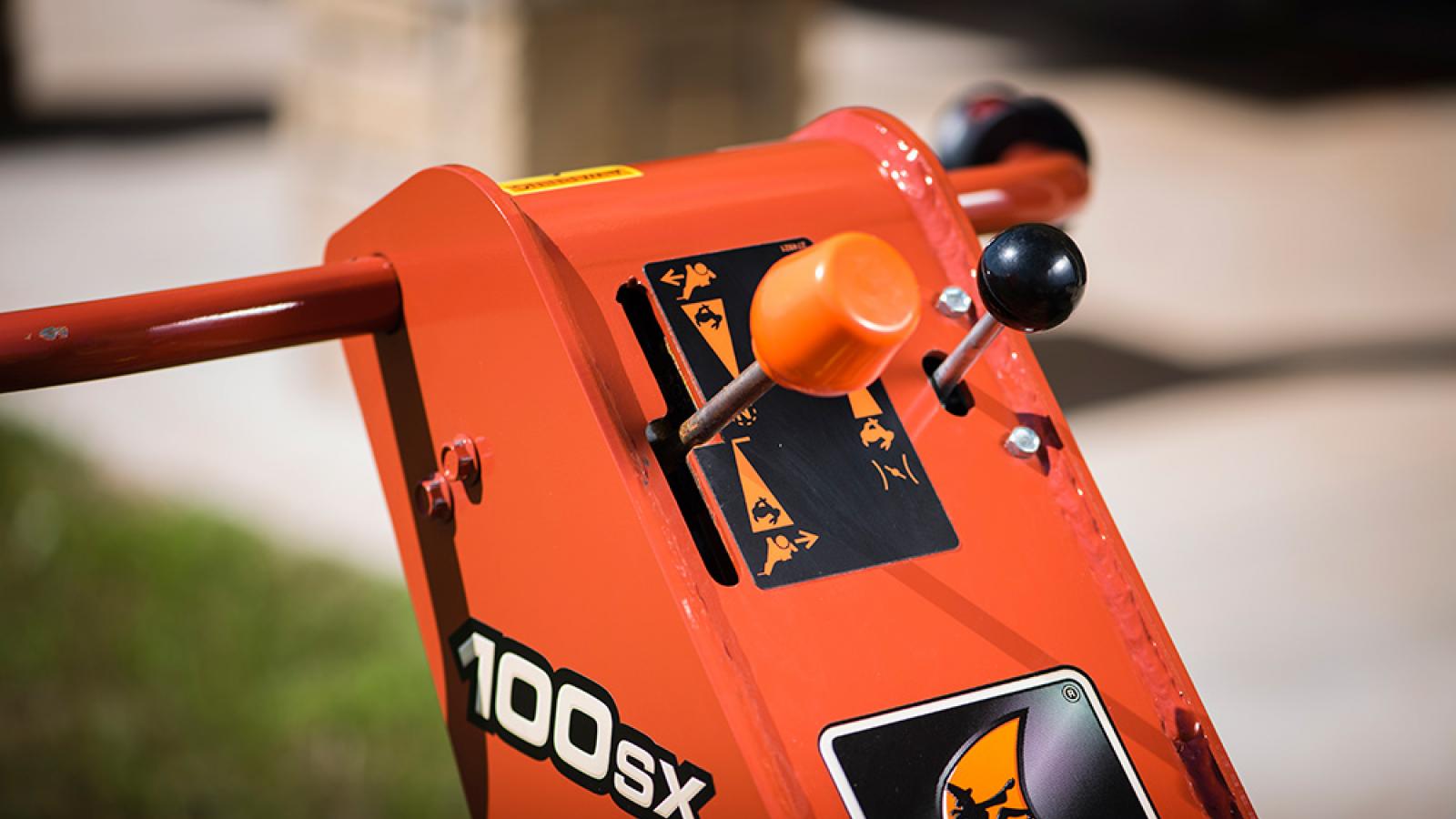

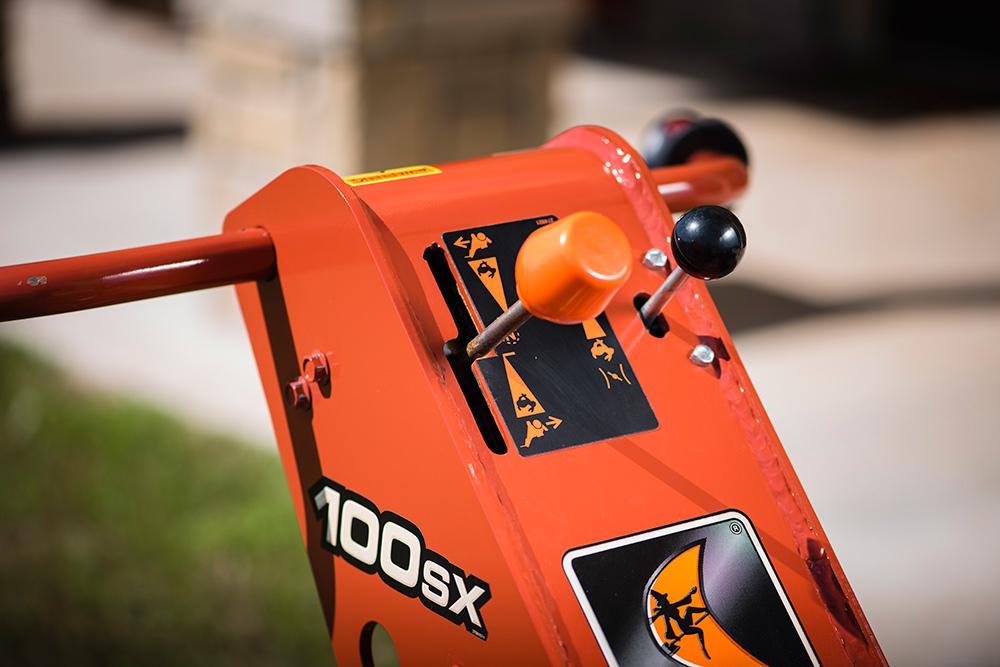

    All controls are accessible from the operator's position for easy operation.

    Self-propelled design for better maneuverability.
