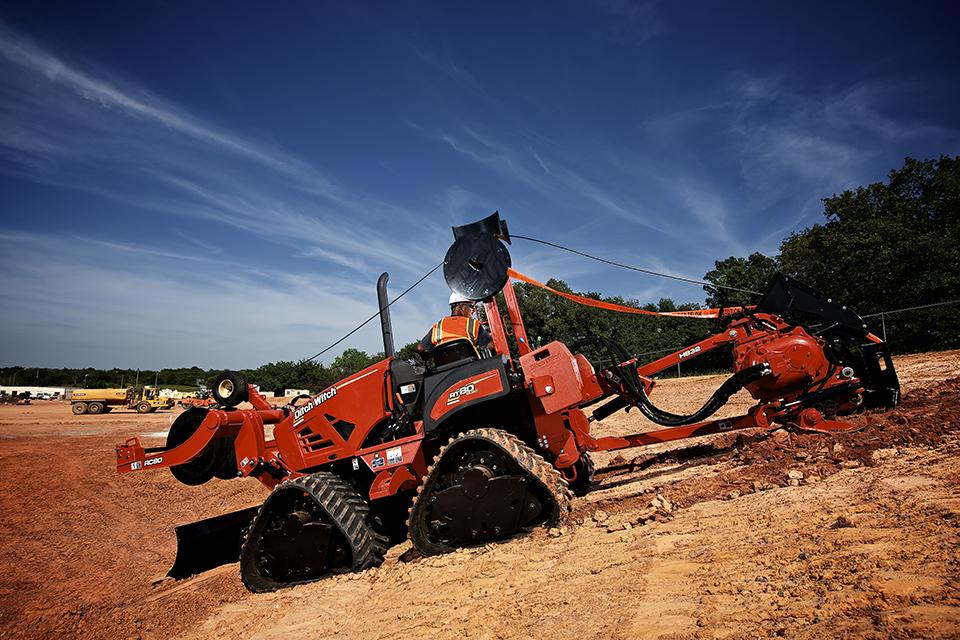

    RT80 Quad
    Ease of Use

    Removable side panels provide easy access to all engine compartment maintenance points.

  • Battery



    Battery

    U.S
    Metric





    Group
    78U




    SAE reserve capacity rating
    110 min




    SAE cold crank @ 0°F (-18°C)
    800 amps




    Auxiliary power outlet
    12V, 10 amps




    Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.



  • Power (Tier 4)



    Power (Tier 4)

    U.S
    Metric





    Engine
    TD3.6L4




    Fuel
    Diesel




    Cooling medium
    Liquid




    Injection
    Direct




    Aspiration
    Turbocharged




    Number of cylinders
    4




    Displacement
    221 in3
    3.6 L



    Bore
    3.86 in
    98 mm



    Stroke
    4.72 in
    120 mm



    Engine manufacturer's gross power rating (SAE J1995)
    74 hp
    55.4 kW



    Rated speed
    2,500 rpm




    Emissions compliance—highly regulated countries
    EPA Tier 4
    EU Stage IIIB



    Emissions compliance—less regulated countries
    EPA Tier 4i
    EU Stage IIIA

  • Power Train



    Power Train

    U.S
    Metric





    Ground drive transmission
    Hydrostatic




    Differentials
    Planetary front and rear w/standard rear steering




    Parking brake
    Manual lever disc brake




    Tracks
    450 x 86 x 36, rubber track, chevron pattern




    Attachment drive transmission
    Hydrostatic, electric rotary knob, speed infinitely variable from zero to maximum


  • Power
    RT80 Quad
    Power

    Turbocharged Deutz® Tier 4 diesel engine with 74 gross hp (55.4 kW) and a compact footprint enable the RT80 Quad to do big jobs in small places. A Tier 4i engine is also available in less regulated countries.

  • Hydraulic System @ 2,500 RPM (Tier 4)



    Hydraulic System @ 2,500 RPM (Tier 4)

    U.S
    Metric





    Ground drive pump capacity
    35 gpm
    132 l/min



    Ground drive pump and pressure





    Forward/reverse
    6,000 psi delta
    380 bar



    Attachment pump capacity
    33 gpm
    125 l/min



    Attachment pump and relief pressure





    Forward/reverse
    5,500 psi
    380 bar



    Auxiliary pump capacity





    Front pump
    7.1 gpm
    27 l/min



    Rear pump
    6.2 gpm
    23 l/min



    Auxiliary pump relief pressure
    3,000 psi
    207 bar

  • Superior Support
    RT80 Quad
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Fluid Capacities



    Fluid Capacities

    U.S
    Metric





    Fuel tank
    30 gal
    114 L



    Engine oil
    8.4 qt
    8 L



    Hydraulic reservoir
    12 gal
    45 L



    Hydraulic system
    19 gal
    72 L

  • Noise Level



    Noise Level

    U.S
    Metric





    Operator
    92 dBA sound pressure per ISO 6394


  • Productivity
    RT80 Quad
    Productivity

    Tremendous axle capacity for a best-in-class static load rating of 39,000 lb (17,690 kg) and best-in-class 35,215 lb (13,944 kg) of breakout for plowing applications.

    Three-speed, shift-on-the-fly ground drive is superior to competitors’ two-speed ground drives, giving you more options as jobsite conditions and requirements change.

    Standard rear steering feature gives the RT80 Quad a tighter turn radius and better maneuverability on tight jobsites, while our innovative chevron-pattern tread puts more power on the ground for maximum productivity.

    Whether you're plowing or trenching, standard cruise control enables you to maintain optimal performance in many ground conditions.

  • Rugged Design
    RT80 Quad
    Rugged Design

    Backfill blade arm has the same heavy-duty design as the Ditch Witch RT115 Quad, for added strength and durability.

    Electronic potentiometers give the operator precise control of the ground drive speed and attachments.

  • Dimensions



    Dimensions

    U.S
    Metric





    Height
    103 in
    2616 mm



    Nose to rear mount length
    112.3 in
    2852 mm



    Length, transport
    139 in
    3530 mm



    Wheelbase
    63 in
    1600 mm



    Width
    90 in
    2286 mm



    Angle of approach
    31°




    Thread
    72 in
    1829 mm



    Rear axle to attachment mount holes
    16.8 in
    427 mm

  • Operation



    Operation

    U.S
    Metric





    Forward speed





    Low
    1.5 mph
    2.4 km/h



    Medium
    3.3 mph
    5.2 km/h



    High
    4.7 mph
    7.5 km/h



    Reverse speed





    Low
    1.1 mph
    1.7 km/h



    Medium
    2.5 mph
    4 km/h



    High
    2.7 mph
    4.3 km/h



    Vehicle clearance circle (SAE) wall to wall w/backfill blade





    Front steer only
    33.5 ft
    10.2 m



    Front and rear steer
    21.5 ft
    6.5 m



    Ground clearance
    15.3 ft
    387 mm



    Basic unit weight
    11,580 lb
    5253 kg



    Allowable tractor weight, max, 2 post
    19,100 lb
    8864 kg



    Allowable tractor weight, max, 4 post
    20,370 lb
    9240 kg



    Front counterweight (optional)
    1,650 lb
    750 kg

  • Backfill Blade



    Backfill Blade

    U.S
    Metric





    Blade width
    80 in
    2030 mm



    Blade height
    14 in
    355 mm



    Lift height above ground
    25.2 in
    640 mm



    Blade drop below ground
    10.9 in
    276 mm



    Swing angle, max





    Left/right
    30°




    Tilt angle





    Up/down
    16°
