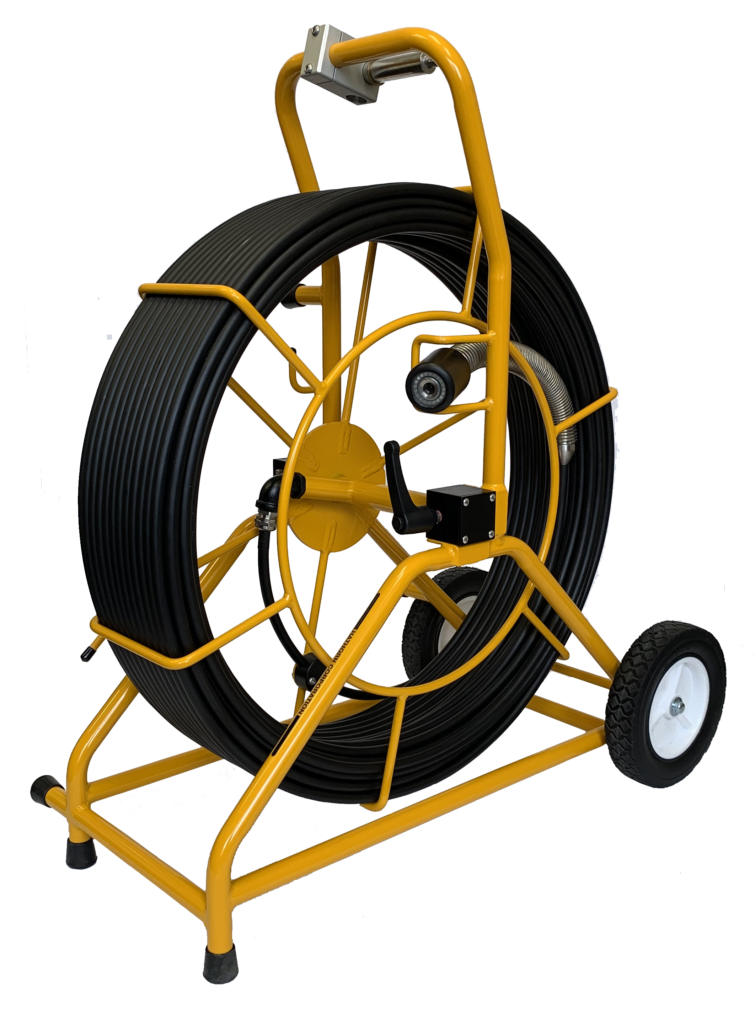

Hathorn Standard Camera Reels
Inspection Cameras
Standard Reel Inspection cameras are designed to work with all Hathorn® control modules past present and future!
| Water Resistance - Battery Cradle | IP65 |
|---|---|
| Size & Type | Compatible with all Hathorn control modules. H12+ recommended for best picture and options |
| Water Resistance - Reel Hub | IP64 |
| Push Rod | HDPE push rod with coax core - multiple lengths and thicknesses |
| Sonde Frequency | High power 512Hz or 640Hz (available only with H12+ controller) |
| Water Resistance - Camera & Rod | IP67 to 60psi |
| Storage Temperature | -4˚F to 140˚F (-20˚C to 60˚C) |
| Operating Temperature | 14˚F to 122˚F (-10˚C to 50˚C) |
Featured Content
Features
- Mini reels are available in two camera head sizes, 1” and 1.23″, self-leveling or straight view
-
200FT Industry-leading HDPE premium push rod
-
Municipal Grade standard camera reels are built North American Tough
-
Footage counter equipped
-
High Power 512hz sonde control or 640Hz (only available H12+ controller)
-
Compatible with all Hathorn control modules
-
Easy to carry, 33lbs
Easy to Use
-
Footage counter and reset
-
Push around 1.5″ elbows
-
Push up to 200ft / 60m in a 6″ pipe
-
Includes 512Hz sonde
Portable
-
Easy to carry at only 33 lbs
Versatile
-
Compatible with all Hathorn control modules
-
Self-levelling camera heads available
-
Three camera sizes available
Rugged
-
Genuinely North American made
-
Butt-welded steel frame construction
-
Industry-leading HDPE premium cables
Mini Reels
| Catalog Number | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Max. Pipe Well Lit | LBS. | Dimensions |
|---|---|---|---|---|---|---|---|---|
| MN-2100 | 1″ | No | 200ft. | 3/8″ | 1.5″ | 3″ | 33lbs. | 24″x18″x10″ |
| MN-2123-SL / MN-2123 | 1.23″ | Avail. | 200ft. | 3/8″ | 2″ | 6″ | 33lbs. | 24″x18″x10″ |
| MN-2135 | 1.35″ | No | 200ft. | 3/8″ | 1.5″ | 6″ | 33lbs. | 24″18″x10″ |
Mid Reels
| Catalog Number | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | LBS. | Dimensions | Max Pipe Well Lit |
|---|---|---|---|---|---|---|---|---|
| MR-2123-SL / MR-2123 | 1.23″ | Avail. | 200ft. | 0.400″ | 2″ | 42lbs. | 29″x18″x15″ | 6″ |
| MR-2168-SL / MR-2168 | 1.68″ | Avail. | 200ft. | 1/2″ | 3″ | 42lbs. | 29″x18″x15″ | 12″ |
| MR-2143-SL / MR-2143 | 1.43″ | Avail. | 200ft. | 0.400″ | 3″ | 42lbs. | 29″x18″x15″ | 10″ |
Large Reels
| Catalog Number | Camera Head | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Max Pipe Well Lit | LBS. | Dimensions |
|---|---|---|---|---|---|---|---|---|
| LR-4168-SL / LR-4168 | 1.68″ | Avail. | 400ft. | 1/2″ | 3″ | 12″ | 65lbs. | 33″x19″x16″ |
| LR-3168-SL / LR-3168 | 1.68″ | Avail. | 300ft. | 1/2″ | 3″ | 12″ | 55lbs. | 33″x19″x16″ |
| LR-2168-SL / LR-2168 | 1.68″ | Avail. | 200ft. | 1/2″ | 3″ | 12″ | 45lbs. | 33″x19″x16″ |
| LR-4143-SL / LR-4143 | 1.43″ | Avail. | 400ft. | 1/2″ | 3″ | 10″ | 65lbs. | 33″x19″x16″ |
| LR-3143-SL / LR-3143 | 1.43″ | Avail. | 300ft. | 1/2″ | 3″ | 10″ | 55lbs. | 33″x19″x16″ |
| LR-2143-SL / LR-2143 | 1.43″ | Avail. | 200ft. | 1/2″ | 3″ | 10″ | 45lbs. | 33″x19″x16″ |
Extra Large Reels
| Catalog Number | Camera | Self Leveling | Rod Length | Rod Size | Min 90º Elbow | Max. Pipe Well Lit | LBS. | Dimensions |
|---|---|---|---|---|---|---|---|---|
| XLR-5568 / XLR-5568-SL | 1.68″ | Avail. | 500ft. | 5/8″ | 3″ | 12″ | 90lbs. | 33″x19″x16″ |
| XLR-5168 / XLR-5168-SL | 1.68″ | Avail. | 500ft. | 1/2″ | 3″ | 12″ | 75lbs. | 33″x19″x16″ |
Features
-
Mid reels are available in three camera head sizes, 1.23″, 1.43” and 1.68”, self-leveling or straight view
-
200FT Industry-leading HDPE premium push rod
-
Municipal Grade standard camera reels are built North American Tough
-
Footage counter equipped
-
High Power 512hz sonde control or 640Hz (only available H12+ controller)
-
Compatible with all Hathorn control modules
-
Industry-leading HDPE premium cables
-
Easy to carry, 42lbs
Easy to Use
-
Footage counter and reset function
-
Push around 2″ elbows
-
Push up to 200′ in a 12″ pipe
-
Includes 512Hz sonde
Portable
-
Ultra-sturdy 6″ wheels to make transportation easy
-
Weighs only 42 lbs
Versatile
-
Compatible with all Hathorn control modules
-
Self-levelling camera heads available
-
Three camera sizes available
Rugged
-
Genuinely North American made
-
Butt-welded steel frame construction
-
Industry-leading HDPE premium cables
Features
- Large reels are available in 3camera head sizes, 1.23″, 1.43” & 1.68”, self-leveling or straight view
-
200-500FT Industry-leading HDPE premium push rod
-
Municipal Grade standard camera reels are built North American Tough
-
Footage counter equipped
-
High Power 512hz sonde control or 640Hz (only available H12+ controller)
-
Compatible with all Hathorn control modules
Easy to Use
- Footage counter and reset
-
Push around 3″ elbows
-
Push up to 500′ in a 12″ pipe
-
Includes 512Hz sonde
Portable
-
Ultra-sturdy 8″ wheels to make transporting easy
Versatile
-
Compatible with all Hathorn® control modules
-
Self-levelling camera heads available
-
Three camera sizes available
Rugged
-
Genuinely North American made
-
Butt-welded steel frame construction
-
Industry-leading HDPE premium cables
