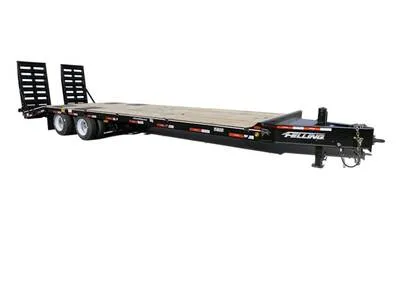

Felling FT-50-3 LP
Deck-Over Low Profile Equipment Trailers
Low Pro Tag
The Low Profile Deck-Over tag design delivers a 33″ loaded deck height, providing operators with load versatility and ease of use with loading low-clearance equipment. Constructed with fabricated/ engineered main frame beams which are pierced for the cross members to be inserted through, producing the lower deck height.
| Cargo Capacity | 50,000 lbs |
|---|---|
| Axle Capacity, Rear | 25,000 lbs oil bath |
| Deck Height | Appx: 33" loaded, 35" unloaded |
| Width | 102" OD |
| Length | Hitch: Center of Coupler to Headboard, Appx |
| Mainframe | Engineered fabricated Hi-tensile grade 80 main frame beams with grade 80 Jr-I cross-members |
| Deck Thickness | Type: white oak 2" nom |
| Hitch/Type | 3" adjustable lunette eye/pintle, (C) 66,000 lb plate mount (3/4" bolt) |
| Suspension | 49· spread (spring), 9700 hutch |
| Tires, Rear Specification | 235/75R 17.5 H, 8 bolt (17.5 x 6.75) hub pilot |
| Electrical | Plug: 7 Pole semi |
| GVWR | 60,700 lbs |
| Weight | 10,700 lbs |
| Gross Axle Weight Rating, Rear | 54,480 lbs |
| Lighting | LED lights (peterson), sealed wiring harness (sealco) |
| Safety Features | 1/2" Safety Chains, Grade 70 |
| Color Option | Trailer: Felling Black # CCA945378 (White Felling Decal) | stripe: white |
| Brake System Type | Air, ABS 2S/1M, meritor WABCO (parking breaks on all axles) |
Featured List
- Engineered Fabricated Hi-Tensile Grade 80 Main Frame Beams with Grade 80 Jr-I Cross-Members
- Self Cleaning 5" x 3" Angle Iron Beavertail
- 5' x 20" Self Cleaning 5" X 3" Angle Iron Spring Assist
| Literature | View Link |
|---|
