    FT5
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • POWER



    POWER








    Engine
    Honda® GX160




    Fuel
    Gasoline




    Cooling medium
    Air




    Number of cylinders
    1




    Displacement
    9.9 in3
    162 cm3



    Bore
    2.7 in
    69 mm



    Stroke
    1.8 in
    46 mm



    Gross power @ 3,600 rpm
    5.5 hp
    4.1 kW

  • FLUID MIXING SYSTEM



    FLUID MIXING SYSTEM








    Drilling fluid/mixing tank capacity
    200 gal
    760 L



    Maximum flow rate to drilling unit
    18 gpm
    68 l/min

  • FLUID CAPACITIES



    FLUID CAPACITIES








    Fuel tank
    1 gal
    3.6 L



    Engine oil
    0.6 qt
    0.6 L







  • DIMENSIONS



    DIMENSIONS

    U.S
    Metric





    Length
    73 in
    1.85 m



    Length, with hose and valve
    84 in
    2.13 m



    Height
    53.5 in
    1.36 m



    Width
    32 in
    813 mm



    Weight, empty
    402 lb
    182 kg



    Weight, full of water
    2,071 lb
    939 kg

  • FT5

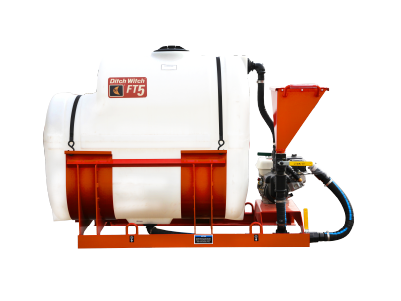

    The compact FT5 makes short work of the mixing process. Designed to support smaller HDD systems, the FT5 also supports your need to get the job done right and right on time.

    Venturi wet hopper allows excellent mixing of fluids; the hopper's steeper sides help speed up mixing cycles.

    Narrow tank can be positioned side-by-side with a drill unit on a trailer, making the equipment easy to transport to the jobsite.

    200-gallon (757-L) capacity is large enough to get the job done, and just the right size for transporting on small truck or trailer configurations.

    Simplicity of design and multiple configuration options accommodate a variety of setups.
