Ditch Witch FM25X Fluid Management
Fluid Management

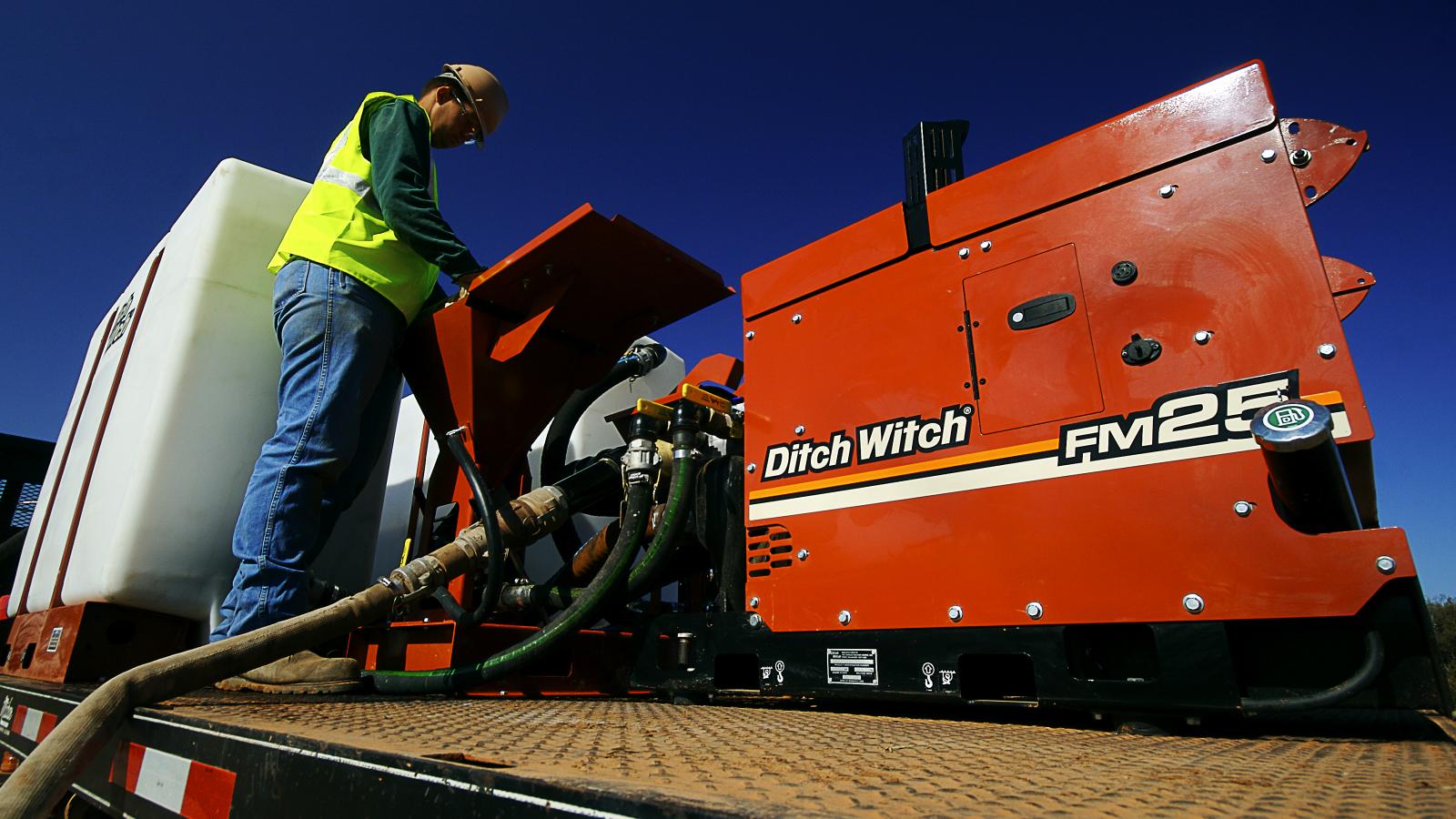

With its innovative line of fluid mixing systems, the Ditch Witch organization set the standards for efficiency in the horizontal directional drilling industry. The latest addition to this family is the FM25, a reliable, low-maintenance drilling fluid mixing system that makes short work of the mixing process.
Equipment Features
Featured Content
Fluid Capacities
Fuel tank
9.2 gal
35 L
Engine lubrication oil, including filter
4.2 qt
4 L
Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
Fluid/Mixing System
Centrifugal pumps
2
Suction port diameter
3 in
76 mm
Discharge port diameter
3 in
76 mm
Fluid pressure, max
50 psi
3.4 bar
Pump discharge rate, max (each pump)
300 gpm
1100 l/min
Flow rate to boring unit
0-200 gpm
0-750 l/min
Drilling fuid tank capacity (nominal, each tank)
500/1,000 gal
1893/3785 L
Solids addition rate w/metering plate
30 lb/min
14 kg/min
Solids addition rate w/out metering plate
75 lb/min
34 kg/m
Mixing hopper capacity (each hopper)
1 ft3
28 L
Typical tank mixing time
7-10 min
Simple design and multiple configuration options accommodate a variety of setups and make transport easy.
25-hp (18.7-kW) Kubota® diesel engine provides the power to support even the largest Ditch Witch directional drilling systems.
Venturi wet hopper has steeper sides that allow fast, thorough fluid mixing.

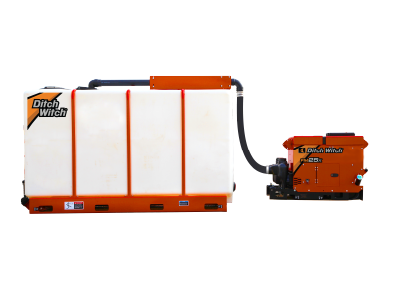

Choice of one or two hoppers, either a 500-gallon (1893-L) or 1,000-gallon (3785-L) tank, and a fuel fill on both sides, allows flexible setup configurations on a trailer or truck.
Optional accessories, including an anti-siphon tank fill and an umbrella kit, enhance the FM25’s versatility.
Power
Engine
Kubota® D1105
Fuel
Diesel
Cooling medium
water
Injection
Indirect
Aspiration
Natural
Number of cylinders
3
Displacement
68.5 in3
1.12 L
Bore
3.07 in
78 mm
Stroke
3.09 in
78.4 mm
Manufacturer’s gross power rating (per SAE JT1995)
25 hp
18 kW
Rated speed
3,000 rpm
Dimensions
U.S.
Metric
Mixing system w/two 500-gallon tanks
Length
175 in
4.45 m
Width
92 in
2.34 m
Height
Tank assembly w/out fill pipe
68 in
1.73 m
Tank assembly w/ fill pipe
75 in
1.91 m
Weight, empty
2,350 lb
1070 kg
Weight, full of water
10,650 lb
4830 kg
Mixing System w/two 1,000-gallon (nominal) tanks
Length
205 in
5.21 m
Width
96 in
2.44 m
Height
Tank assembly w/out fill pipe
72 in
1.83 m
Tank assembly w/ fill pipe
80 in
2.03 m
Weight, empty
3,450 lb
1570 kg
Weight, full of water
19,850 lb
9000 kg
