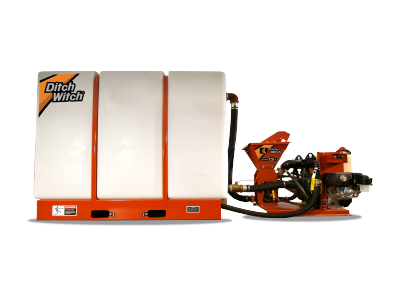

Ditch Witch FM13X FLUID MANAGEMENT
Fluid Management
With new design features, improved drilling fluid flow, increased durability and faster mixing cycle and yield times, the FM13X will help keep costs down and productivity up.
Equipment Features
Featured Content
Sound Pressure – 92 dbA
Sound Power – 105 dbA
Flow rate – 3.6 gpm
Pressure – 2,500 psi
Air flow – 512 cfm
Vacuum, max – 15 in Hg
Length – 180 in
Width – 42 in
Height (Tank assembly w/out fill pipe) – 72 in; Height (Tank assembly w/fill pipe) – 80 in
Mixing unit – 450 lb
Weight, empty – 1,050 lb
Weight, full of water – 9,383 lb
Length – 100 in
Width – 20 in
Height – 69 in
Weight, empty – 450 lb
Weight, full of water – 4,253 lb
Centrifugal pumps (Suction port diameter) – 3 in; Centrifugal pumps (Discharge port diameter) – 3 in
Fluid pressure, max – 50 psi
Pump discharge rate, water, max – 270 gpm
Flow rate to boring unit, max – 220 gpm
Drilling fluid tank capacity – 400/500/950 gal
Solids addition rate, w/metering plate – 30 lb/min; Solids addition rate, w/out metering plate – 75 lb/min
Mixing hopper capacity (each hopper) – 1 ft³
Typical tank mixing time – 7-10 min
Length – 150 in
Width – 31 in
Height (Tank assembly w/out fill pipe) – 68 in; Height (Tank assembly w/fill pipe) – 75 in
Mixing unit – 450 lb
Weight, empty – 550 lb
Weight, full of water – 5,180 lb
Engine – Honda® GX390; Fuel – Gasoline
Cooling medium – Air
Number of cylinders – 1
Displacement – 23.7 in³
Bore – 3.46 in; Stroke – 2.52 in
Manufacturer’s net power rating – 11.7 hp
Rated speed – 3,600 rpm
Emissions compliance – EPA Phase 3
