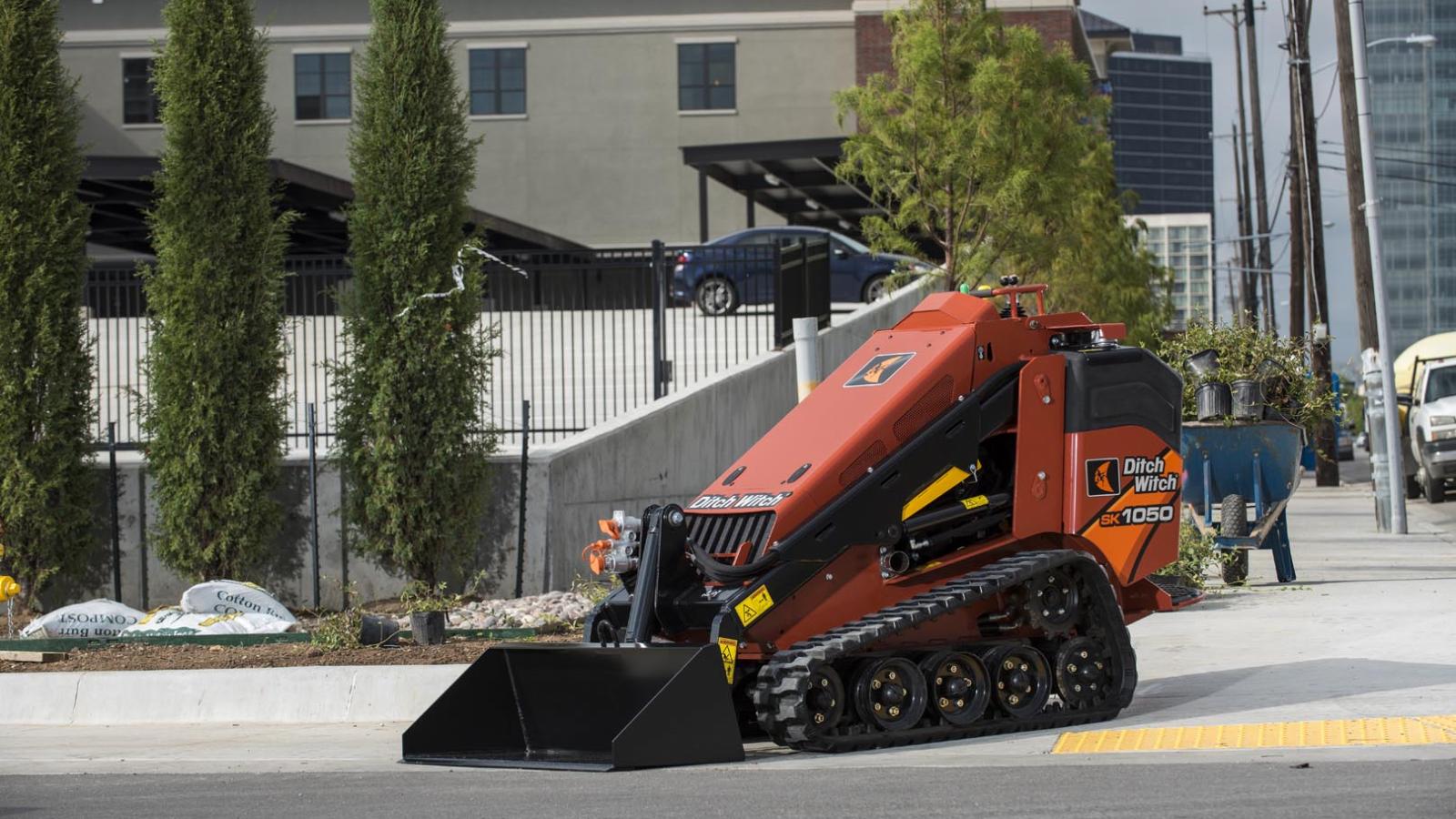

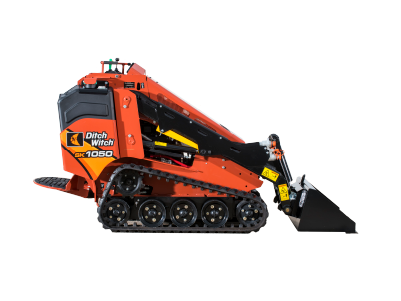

Ditch Witch SK1050 MINI SKID STEER
Mini Skid Steers
Ideally suited for a variety of demanding jobsites, the Ditch Witch SK1050 mini skid steer improves versatility and productivity by directing more hydraulic power to the attachment. The durable, construction-grade design eases operator maintenance for improved ROI, and outperforms all other working machines in its class. Designed specifically for the hardworking operator in mind, the best-in-class, spring-supported operator platform improves comfort for long hours on the job.
Equipment Features
Featured Content
DIMENSIONS (STD)
U.S
METRIC
Operating height, max std. bucket
105 in
2667 mm
Overall height of machine
57 in
1450 mm
Overall length of machine, std. bucket
105 in
2670 mm
Overall length of loader, no attachment
86 in
2190 mm
Machine weight (no attachment, fluids full)
3,435 lb
1558 kg
Hinge pin height, max
83 in
2108 mm
Wheelbase/track length
43 in
1092 mm
Track width
42 in
1065 mm
Ground clearance, min
Center
7.4 in
188 mm
Side
3.7 in
94 mm
Rated operating capacity
35% of tipping capacity
1,062 lb
482 kg
Angle of departure
27°
BATTERY
SAE reserve capacity rating
110 min
SAE cold crank @ 0°F (-18°C)
800 amps
Electrical system
12V
POWER
U.S
METRIC
Engine
Yanmar 3TNV88C
Fuel
Diesel
Gross power rating (SAE J1995)
36.9 hp
27.5 kW
Emissions compliance
EPA Tier 4 Final
EU Stage IIIA
Number of cylinders
3
Displacement
100.1 in³
1.64 L
Bore
3.46 in
88 mm
Stroke
3.54 in
90 mm
Rated speed
3,000 rpm
Designed specifically with the hardworking operator in mind, the SK1050 is equipped with a best-in-class, 332-in2 (843-cm2) operator platform for outstanding comfort and productivity during long hours on the job.
A spring-supported platform is integrated directly into the machine for enhanced durability and comfortability on the job.
Ergonomic operator’s station comes standard with dual-lever ground drive controls and an optional joystick, allowing the operator to control each track independently for improved maintenance and mobility on difficult jobsite conditions.
Incorporating customer feedback, the machine features a repositioned muffler now on the side, allowing exhaust to escape without affecting operator comfort.
An LCD display with programming improvements provides direct visibility into engine diagnostics.
An easy-to-use auxiliary-control foot pedal allows operators to maintain hydraulic flow to the attachment while freeing their hands to control depth and ground speed.
NOISE LEVEL
Operator ear sound pressure
89 dBA
Exterior sound power
103 dBA
Built for heavy-duty operation, the robust design of the lift arms, rollers and undercarriage, improves overall machine longevity and ROI.
A high-drive track system includes bolt-on, interchangeable rollers—a Ditch Witch exclusive—for longer lasting performance.
Easy access to the machine undercarriage helps keep the machine in proper worker order.
With no daily maintenance points and no grease zerks, ease of maintenance is improved and total cost of ownership (TCO) reduced.
Low-maintenance gauge track-tensioning system features a grease cylinder for easy adjustment and track removal, improving track life and reducing downtime.
A standard hydraulic brake improves operator engagement and disengagement.
Equipped with a 37-hp Tier 4 Yanmar® diesel engine, the SK1050 directs 30 hp to the attachment, giving operators the power to tackle an assortment of challenging tasks.
The SK1050’s attachment horsepower, combined with 13.9 gpm auxiliary flow and 3,625 psi (250 bar), results in quicker jobsite cycle times, making your crews more efficient.
Standard auto-throttle reduces engine throttle when stepping off the platform for greater fuel efficiency.
The machine is capable of 4.7-mph (7.6-km/h) ground drive speed both forward and in reverse, improving jobsite cycle times and decreasing overall labor costs.
FLUID CAPACITIES
U.S
METRIC
Fuel tank capacity
10.5 gal
40 L
Engine oil, w/filter
5 qt
4.7 L
Hydraulic reservoir capacity
9.2 gal
35 L
The SK1050 accepts many attachments to suit a variety of hardscape, landscape, utility, plumbing and irrigation jobs, making it one of the most versatile machines on the market.
Industry-leading power to the attachment provides unbeatable productivity, especially when operating hydraulic attachments, and increases jobsite cycle times.
Advanced attachment-latching system for simple, secure connection of the attachments.
HYDRAULIC SYSTEM
U.S
METRIC
Auxiliary circuit
Double gear pump
Flow rate
13.9 gpm
52.6 L/min
Pressure
3,625 psi
250 bar
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
OPERATION
Ground drive speed
Forward/reverse
4.7 mph
7.6 km/h
Ground pressure* (ISO/CD 16754)
9-in (230-mm) tracks
4.9 psi
0.34 bar
* Includes machine weight, 175-lb (80-kg) bucket, and 165-lb (75-kg) operator
Best-in-class, 83-inch (2.1-m) hinge-pin height enables more flexible and efficient loading and unloading at a wide range of dump heights and improved operating capacity ensures the machine can withstand maximum weight at maximum height.
1,062-lb (482-kg) rated operating capacity with exceptional stability allows operators to effectively maneuver jobsites while carrying heavier loads.
At 3,625 psi (250 bar), the SK1050 provides more hydraulic pressure to the attachment than comparable industry models, also leading to increased cycle times—saving time and money.
When enabled, standard auto-throttle reduces engine RPM after periods of sustained inactivity for better fuel economy.
