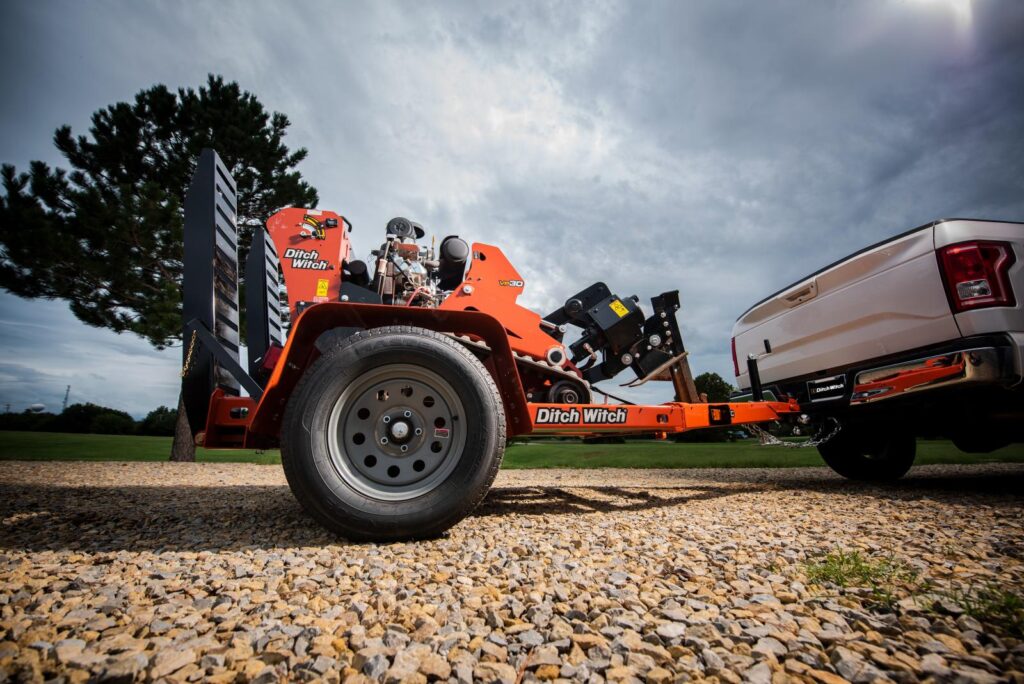

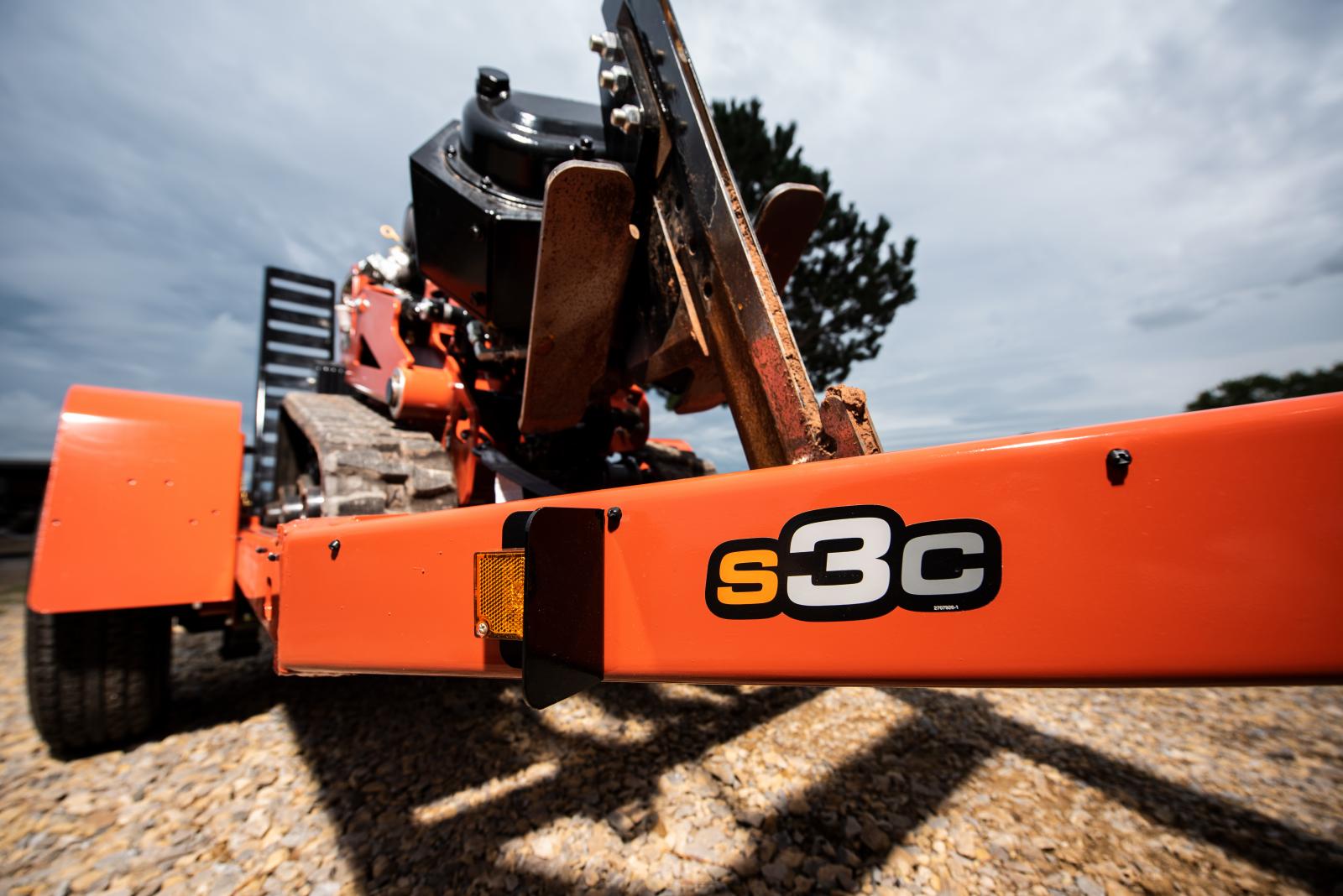

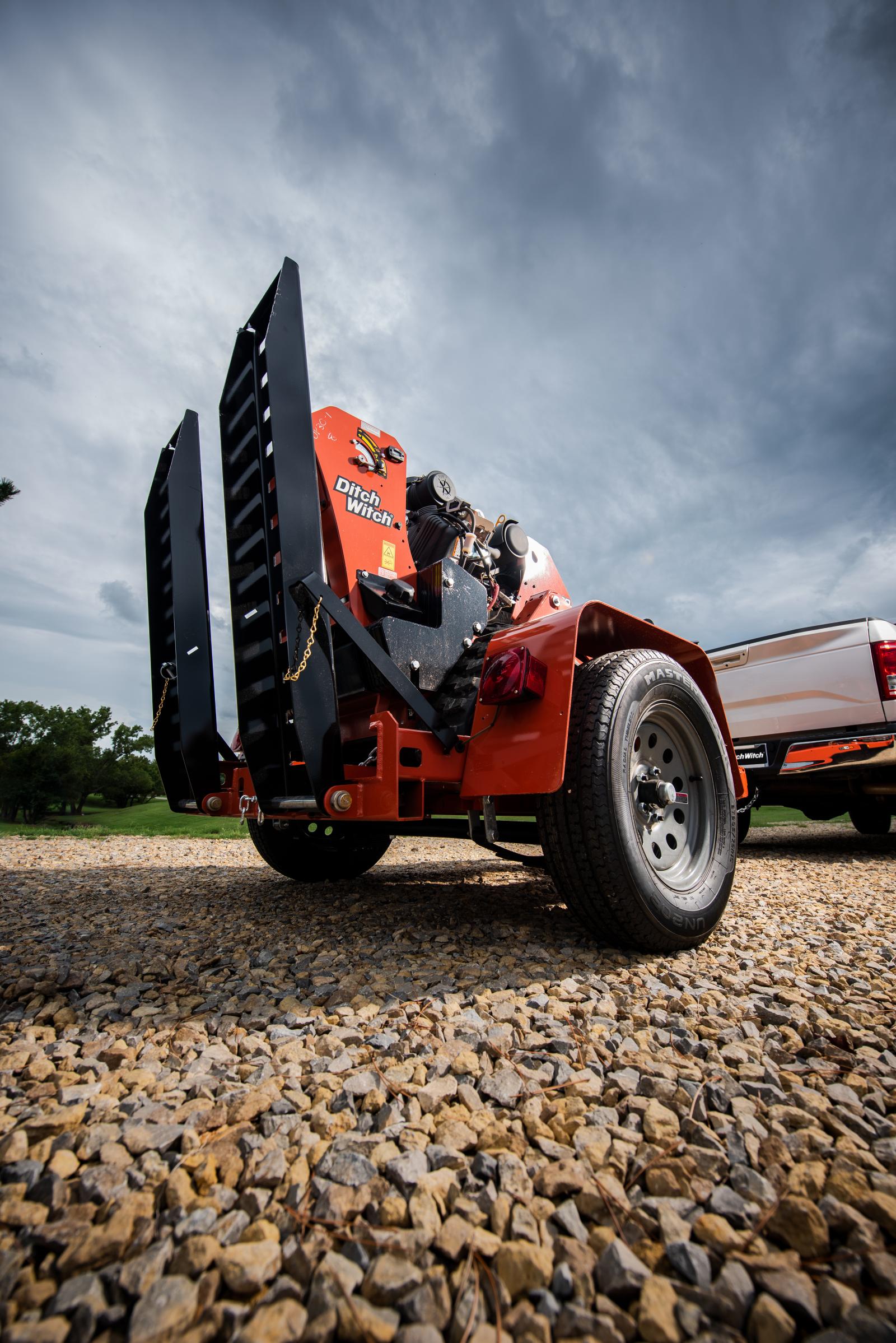

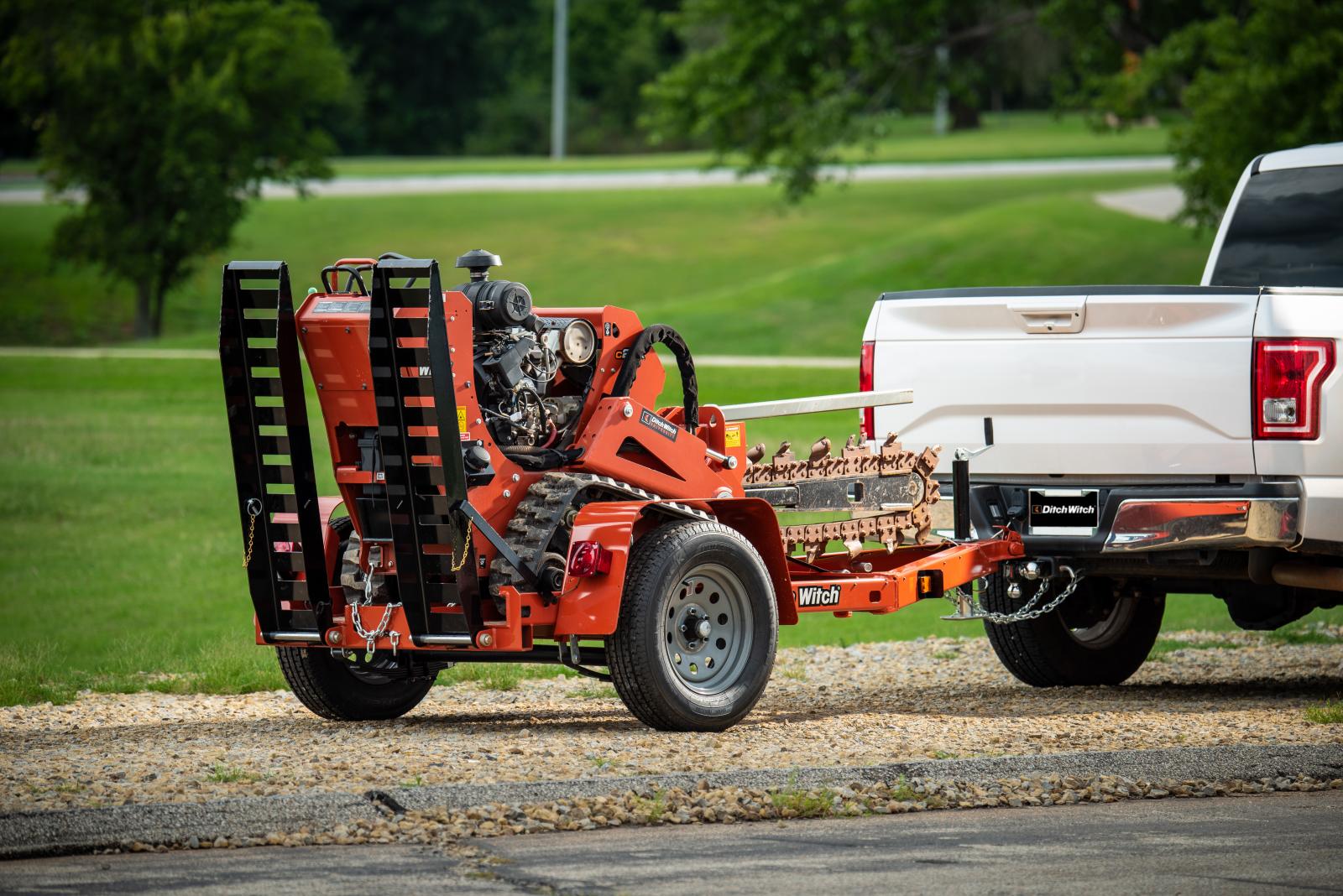

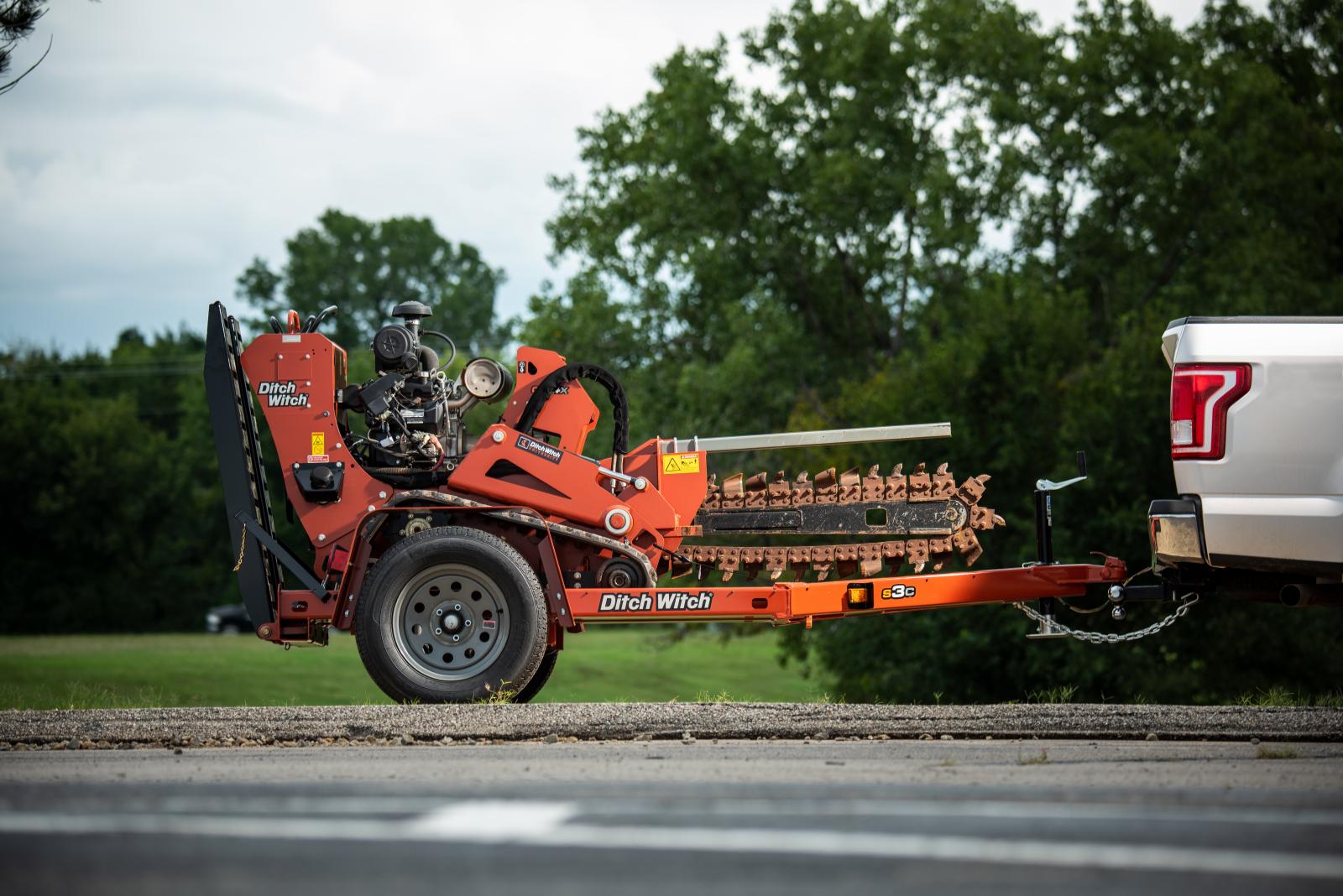

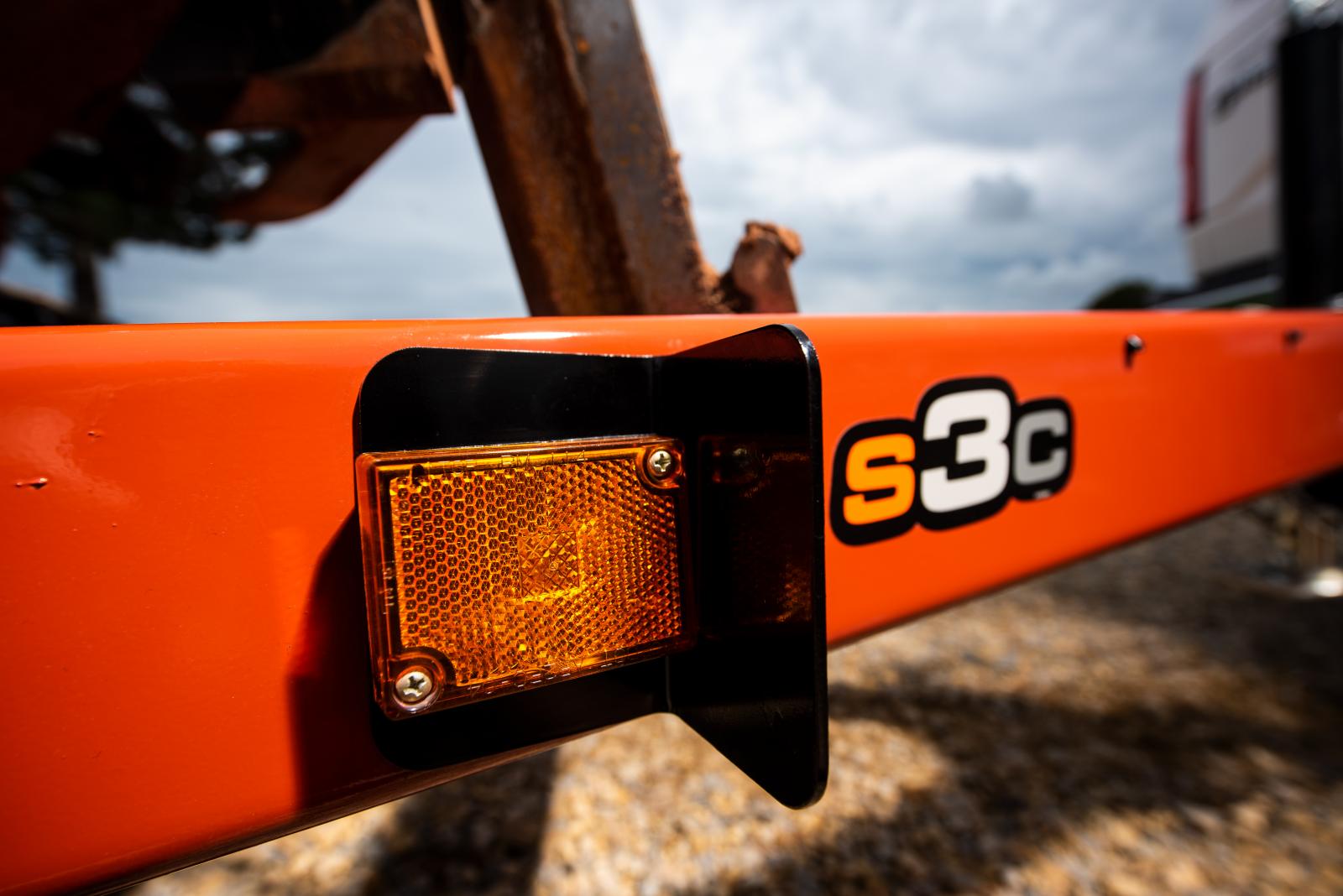

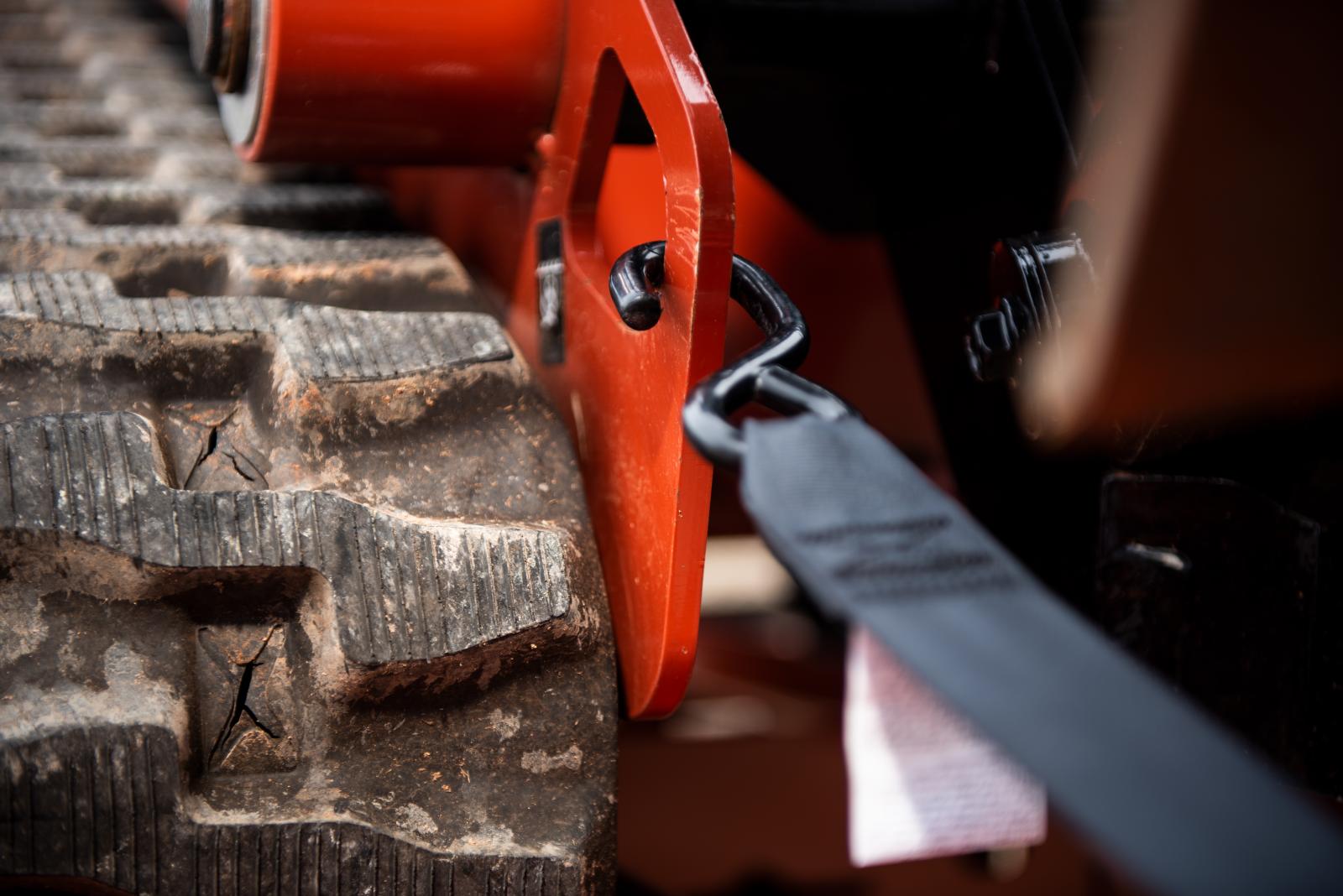

Ditch Witch S3C Trailer

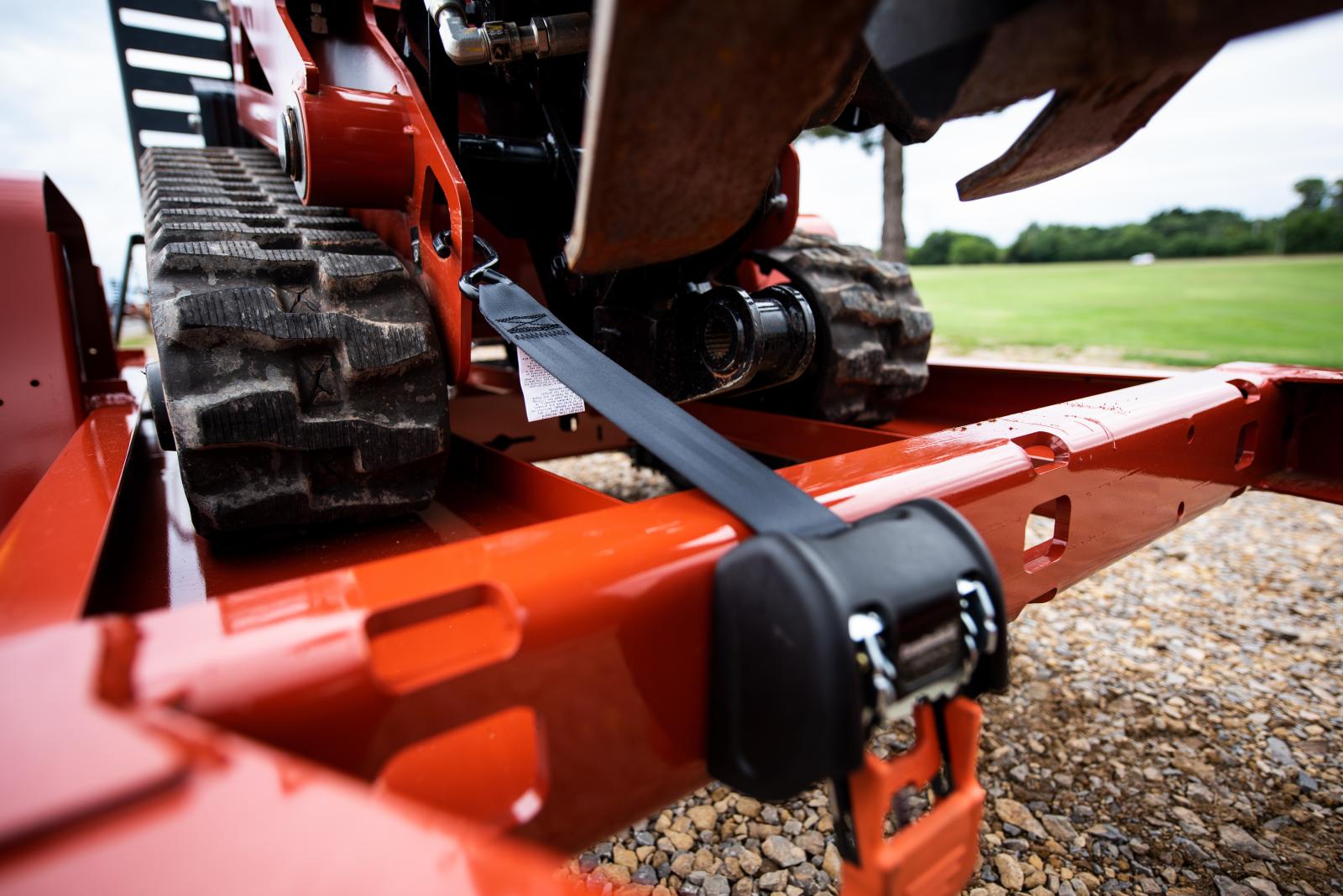

Rugged, innovative and with more customer-driven enhancements than ever, the S3C trailer is custom-built for Ditch Witch® walk-behind trenchers and the VP30 vibratory plow. With a new rail system for easy loading and unloading, a universal mounting kit, and 52% increased capacity over its predecessor, the S3C is the best trailer for the best machines.
Equipment Features
Featured Content
DIMENSIONS
U.S
Metric
D
38 in
965 mm
D2
70 in
1.8 mm
L
133 in
3.4 mm
L2
122 in
3.1 mm
H
8.5-22.5 in
216-571.5 mm
H2
17.6 in
447 mm
H3
13.6 in
345.4 mm
W
64.2 in
1.6 mm
W2
42.8 in
1.1 mm
W3
10 in
254 mm
Loading Angle
15°
COUPLER OPTIONS
2 inch ball Coupler
1/4 inch safety chain
RUNNING GEAR
Axle : 3500 lb. rated Dexter 4in Drop, leaf spring axle.
TIRE/PRESSURE
Tire Size
ST205/75R15, C
Inflation
50 p.s.i.
345 kPa
LOAD RATINGS
GVWR (gross vehicle weight rating)
2,990 lbs
1,356 kg
GAWR (gross axle weight rating)
3,500 lbs
1,588 kg
Tare weight
643 lb
292 kg
Max. tongue load
450 lb
204 kg
Maximum cargo
2,300 lb
1,043kg
Number of axles
1
Type of brakes
n/a
Electrical system
12 volt
