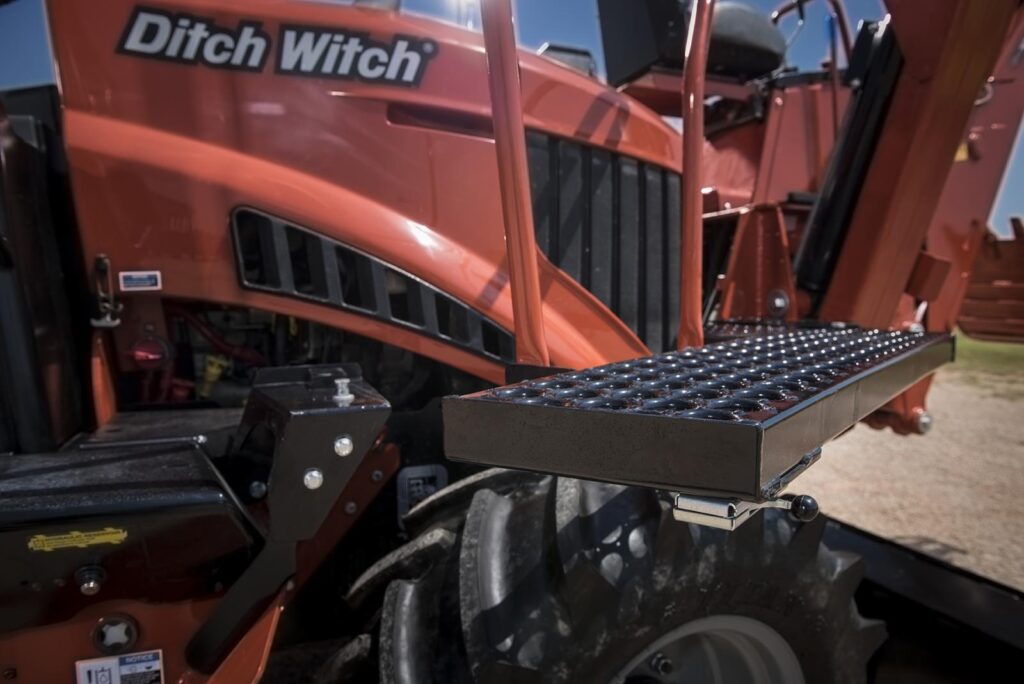

Ditch Witch RT105 Ride-On Trencher
Long hours on the jobsite can take their toll. So we redesigned the operator station on the RT105 ride-on trencher to keep you productive and comfortable. With plenty of muscle to power through the toughest tasks, the RT105 also includes all-new comfort features from an ergonomic, high-back swivel operator seat and controls console to improved visibility, legroom and tiltable steering. Enjoy total productivity from your new trenching office.
Equipment Features
Featured Content
Power Train
Ground drive transmission
(driving) Powershift , (trenching) Powershift w/ (crowd ) Hydrostat
Differentials
planetary front and rear with rear steering
Service brake
DiscType, foot operated
Parking brake
Disc Type, SAHR
Hydraulic System
Crowd Circuit drive/steer pump capacity @ 2300 rpm
11.5 gpm
43 L/min
Ground drive pump relief pressure @ 2300 rpm
3100 psi
213bar
Auxiliary pump capacity @ 2300 rpm
5.1 gpm
19.3 L/min
Auxiliary pump relief pressure @ 2300 rpm
3000 psi
206 bar
RT105
Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
Noise Levels
Operator 91 dBA sound pressure per ISO 6394
Exterior 107 dBA sound power per ISO 6393.
Unless otherwise specified, all figures are for standard equipment only.
Specifications are called out according to SAE recommended procedures.
Due to selected options, delivered equipment may not necessarily match that described.
Specifications are general and subject to change without notice.
If exact measurements are required, equipment should be weighed and measured.
Power Plant
Engine
Deutz TCD3.6L4
Fuel
Diesel
Cooling Medium
Liquid
Injection
Direct
Aspiration
Turbocharged, Charge Air Cooled
Number of cylinders
4
Displacement
221 in3
3.6 L
Bore
3.86 in
98 mm
Stroke
4.72 in
120 mm
Manufacturer’s gross power rating (SAE J1995)
107 hp
80 kW
Estimated net power rating (SAE J1349)
99.3 hp
74 kW
Rated speed
2300 rpm
2300 r/min
Maximum engine tilt angles (Longitudinal)
30°
30°
Maximum engine tilt angles (Lateral)
30°
30°
Emissions compliance (highly regulated countries)
EPA Tier 4 Final
EU Stage IV
Emissions compliance (less regulated countries)
EPA Tier 4i
EU Stage IIIb
Battery (2 used)
Group 65, SAE res. Cap 165 min., SAE cold crank @ 0° F (-18° C), 875 amp
Auxiliary power outlet – 12 volt, 10 amp
RT105
Productivity
Planetary axles with locking differentials make maximum use of torque at the wheel and offer high ground clearance.
The versatile RT105 accepts two types of trencher attachments—centerline and dual position—plus a front-mounted backhoe.
Standard four-wheel drive helps provide superb traction and mobility in all kinds of jobsite conditions and applications.
RT105
Operator’s Station
Ergonomically designed rotating seat is the ultimate in comfort. The machine controls console rotates 120 degrees with the operator for easier, more comfortable operation.
Cab design adds plenty of legroom for extreme comfort. Updated foot pedal design, easy-to-read gauges and controls, and a tilt steering column provide maximum productivity.
5-inch color LCD engine display provides all engine information and diagnostics while rotating with the operator so it’s always there for you to easily view.
Rubber isolators between the cab and frame reduce vibration and provides a comfortable ride for the operator.
RT105
Rugged Design
Solid backfill blade lift arms and cast blade pivot increase structural strength of the backfill components.
Durable steel hydraulic tank and fuel tanks make more efficient use of available space and are enclosed in a steel cradle.
Six-post Rollover Protective System (ROPS) includes a canopy; an enclosed cab with climate-control system is optional.
Removable side panels provide easy access to service areas; engine service points are conveniently located, and the oil level can be checked without opening the engine enclosure.
Vibrational Level
Average vibration transmitted to the operator’s hand during normal operation is 5.98 m/sec2.
Average vibration transmitted to the operator’s whole body during normal operation does not exceed 0.64 m/sec2.
Operator seat per ISO 6683 / SAE J386
RT105
Power
107-hp (80-kW) turbocharged Tier 4 Deutz® diesel engine provides the power to perform all machine tasks on the toughest jobs.
Powershift gives you on-the-go shifting and no clutching, with the ability to easily go from forward to reverse.
The only trencher in its class with mechanically powered trencher, the most efficient way to transfer power, for long-term efficiency and productivity.
Fluid Capacities
Fuel tank
38 gal
144 L
Engine oil
8.5 qt
8 L
Hydraulic reservoir
25 gal
95 L
Hydraulic system
30 gal
114 L
Cooling system
4.25 gal.
16.1 L
DEF tank
2.6 gal
10 L
Backfill Blade
U.S.
Blade width
80 in
2030 mm
Blade height
17 in
430 mm
Lift height above ground
26 in
660 mm
Blade drop below ground
10 in
254 mm
Maximum swing angle (left/right)
30°
30°
Tilt angle (up/down)
12°
12°
Dimensions
U.S.
Metric
Angle of approach
25°
25°
Height
115 in
2920 mm
Height
105 in.
2667 mm
Nose to rear mount length
125 in
3175 mm
Length – transport
154 in
3910 mm
Wheelbase
79 in
2005 mm
Width
82 in
2085 mm
Tread
64 in
1625 mm
Operation
Forward speeds (Crowd)
0.6 mph
0.96 k/h
Forward speeds (Low)
6.2 mph
9.9 k/h
Forward speeds (High)
9.2 mph
14.9 k/h
Reverse speeds (Crowd)
0.6 mph
0.96 k/h
Reverse speeds (Low)
6.2 mph
9.9 k/h
Reverse speeds (High)
9.2mph
14.9 k/h
Vehicle clearance circle (SAE) wall to wall with backfill blade (Front steer only)
35 ft
10.7 m
Vehicle clearance circle (SAE) wall to wall with backfill blade (Front and rear steer)
21 ft
6.4 m
Ground clearance
14 in
356 mm
Basic unit weight
9700 lb
4400 kg
Maximum allowable tractor weight
22000lb
9979 kg
Front counterweight
1300 lb
590 kg
Side counterweight (each)
250 lb
114 kg
