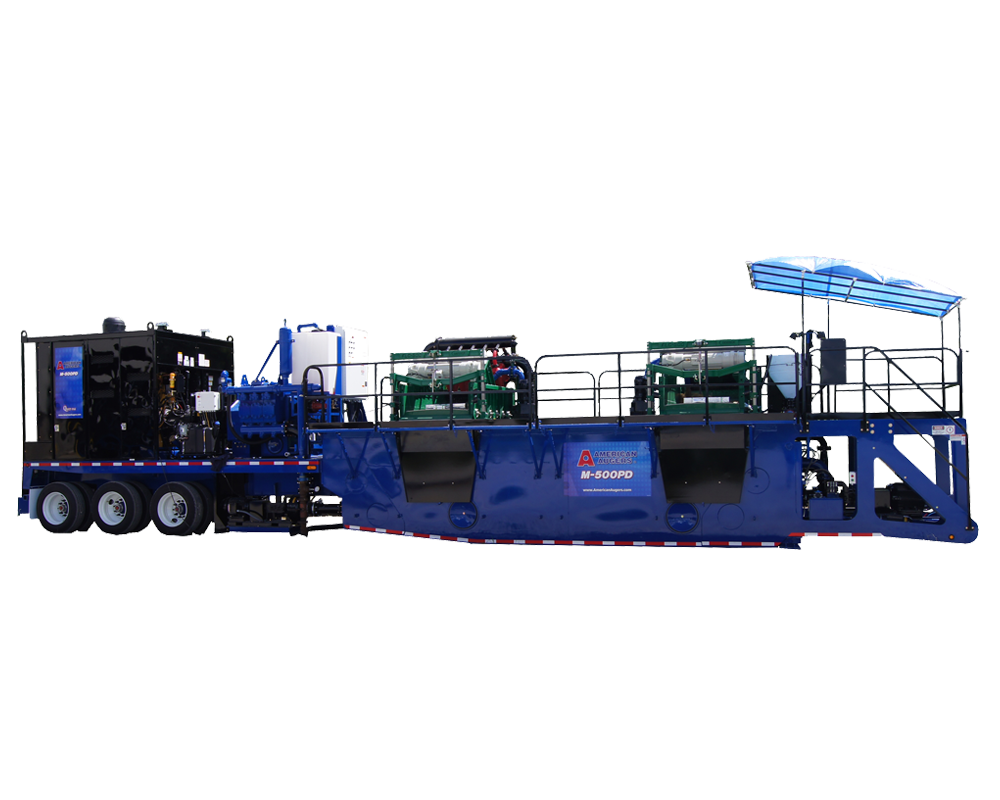

American Augers M-500PD
Mud Cleaning & Pumps
FEATURES
A packaged pumping and cleaning solution for 100 tonne up to 200-tonne drill systems
- 2 Derrick separation shakers, one first cut, and one cone shaker
- Single package reduces space on site and number of loads to move
- Mechanical tank agitation improves circulation and decreases tank wear
- Dual control panels on each end of the work platform for ease of operation
- Wired to power your offboard operators cabins
Equipment Features
Featured Content
- Centrifugal Pumps250 series with mechanical seal
- Cone Supply 40HP6. in x 5 in. with 10.5 in. Impeller
- Mud Mix & Agitation 40HP6 in. x 5 in. with 10.5 in. Impeller
- Supercharge 25HP6 in. x 5 in. with 9.5 in. Impeller
- Bentonite MixerPolyethylene dry bentonite mix hopper
- Total Tank Capacity- Gal (L) 6,600 (24,983)
- Screen Tank- Gal (L) 3,000 (11,356)
- Clean Fluid/ Mixing Tank- Gal (L)3,600 (13,627)
- Intermediate Tank- Gal (L) N/A
- Cleanout Port Size- In (Mm)18.0 (457.0)
- Available or not Yes
- Transport TypeRock-over Design On Tri-axle Suspension
- Kingpin Size – In (MM)2.0 (50.8)
- Operation TypeHydraulic
- Lift Clearance at Kingpin- In (MM)52.0 ( 1,320)
- Size KW (Prime Power) / Volt / HZ180 / 480 / 60
- TypeSTATELINE T4F
- Fuel Capacity U.S. GAL. (L) (Shared)300 (1135)
- Fuel Consumption U.S. GAL/hr (L/hr) Full Power10.3 (39)
- Remote Controls Available
- Offload (SUPERCHARGE) Start/StopYes
- Pit Pump Start/StopYes
- Clutch ActuatorYes
- HornYes
- Tank Size- Gal (L) 80 (303)
- Electric Pump- Hp (Kw) 3 (2.20)
- Estimated Output- Gpm (Lpm) @ Psi (Bar) 2.1 (7.95) @ 1500 (103.42)
- Hose Length- Ft (M) 100 (30.48)
- Hose Size- In (Mm) .375 (9.52)
- W/ Hose ReelYes
- W/ Power WandYes
- Pit Pump Lay Flat- Qty 2
- Pit Pump Lay Flat Size- In (Mm) 4.0 (101.60)
- Pit Pump Lay Flat Length- Ft (M) 50.0 (15.2)
- Male To Male Coupler- Qty 1
- Coupler Size- In (Mm)4.0 (101.60)
- High Pressure Discharge Hose Yes
- High Pressure Discharge- Qty 4
- High Pressure Discharge Size- In (Mm)3.0 (76.2)
- High Pressure Discharge Length- Ft (M) 25.0 (7.62)
- High Pressure Discharge ConnectionsHammer Union
- Maximum Length ft (M)53.0 (16.2)
- Maximum Height ft (M)13.1 (4)
- Maximum Width ft (M) 8.2 (2.5)
- Motor- Hp (Kw)/ Phase/ Volt / Hz15.0 (11.19) / 3PH / 460 / 60
- Submersible Yes
- Cable Length- Ft (M) 100 (30.48)
- Discharge Size- In (Mm) 4.0 (101.60)
- Max Flow- Gpm (Lpm)819 (3100)
- Work Lights Yes
- Qty/ Voltage / Type 5 / 24 VDC / LED
- Electrical Grounding Stake & Cable Yes
- Ladder W/ Anti-slip TreadsYes
- Anti-slip Walkways W/ Hand Rails & Kickplates Yes
- Emergency Shutdown Switch On Operator Control Panel Yes
- Protective EquipmentYes
- Estimated Machine Weight Lbs (Kg)75,000 (34,019)
- Type of PumpKerr Triplex, Piston And Liner
- Bore X Stroke- In (Mm) 6 X 6 (152.4 X 152.4)
- Maximum Flow- Gal (L) 600 (2,271)
- Maximum Pressure- Psi (Bar) 1505 (104)
- Other FeaturesPulsation Dampener On Discharge
- Derrick FLC-503 Linear Motion Shaker (2)3 panel with 34.5 Ft² non-blank screen area each
- Shaker Screens Included(3) API 50 Derrick PMD+ (pyramid plus)
- (3) API 170 Derrick PMD+ (pyramid plus)
- 1st Cut Shaker Cleaning Capacityup to 500 U.S. gal. (1,893 L)/min
- Desilting Cones(10) 5 in. (127 mm) desilter hydrocyclones
- Desilting Conesup to 900 U.S. gal. (3,407 L)/min
- Shaker Washdown System Yes
- Mud Sampling Valve Yes
- Fold-down Discharge ChutesYes
