- Motor – HP (KW)/ Phase / Volt30 (22.4)/ 3PH / 480V
- Main Pump – Centrifugal250 Series w/ Mechanical Seal
- Inlet Size – IN (MM)4.0 (101)
- Outlet Size – IN (MM)3.0 (76.2)
- Impeller Size – IN (MM)9.0 (228.6)
- Estimated Output – GPM (LPM) @ PSI (BAR)500 (1890) @ 38 (2.6)
- Motor – HP (KW)/ Phase / Volt30 (22.4)/ 3PH / 480V
- Main Pump – Centrifugal250 Series w/ Mechanical Seal
- Inlet Size – IN (MM)4.0 (101)
- Outlet Size – IN (MM)3.0 (76.2)
- Impeller Size – IN (MM)10.5 (266.7)
- Estimated Output – GPM (LPM) @ PSI (BAR)600 (2271) @ 38 (2.6)
- Hydrocyclone Cone – QTY5
- Hydrocyclone Cone Size – IN (MM)5 (127)
- Linear Motion Shaker – Make / Model/ QTYDerrick / Hyperpool / 1
- Non-Blanked Screen Size- SQ.FT (SQ.M)15.4 (1.4)
- Total SQ.FT (M)30.8 (2.8)
- 1ST Cut Shaker Cleaning Capacity – GPM (LPM)300 (1136)
- Size- Kw (Prime Power) / Volt / Hz75 / 480 / 60
- TypeSTATELINE, T4F
- Fuel Capacity- G (L)88 (333)
- Fuel Consumption- Gph (Lph)/ Hour @ Load5 (19)/ HOUR @ 75%
FEATURES

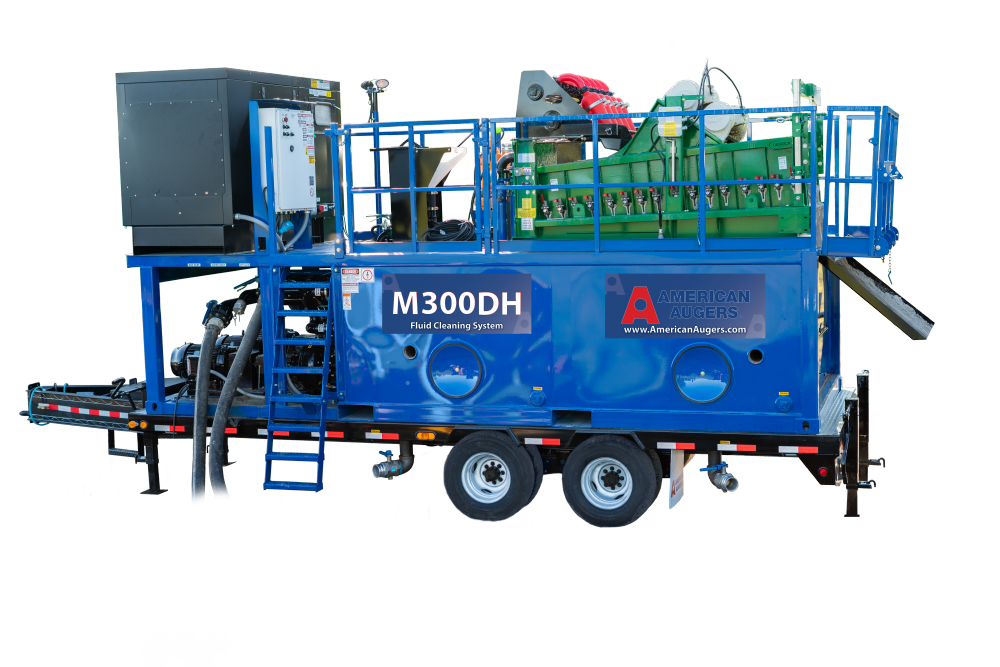

The M-300DH is a skid mounted or trailer mounted fluid cleaning system that is packaged to fit tight jobsites and easily mobilized for quick load in and load out. Clean drilling fluid is one of the most beneficial ways to increase your production and extend the life of your drilling package. Drilling fluid with high amounts of sand is the equivalent of running liquid sandpaper at high velocity through the critical components of a drilling system.
The M-300DH features a 480 volt Stateline generator that powers the agitation system to keep the solids suspended in the fluid and a true 300 GPM over the first cut shaker. There are many upgrade features to the system but the most noticeable upgrade is the all new Hyperpool shaker from Derrick®. The Derrick shaker has been a key component on all American Augers’ mud systems and the Hyperpool shaker takes it to the next level. The screen compression system makes changing the screens faster than ever and keeps the panels tight against the bed keeping solids from falling into the clean fluid.
