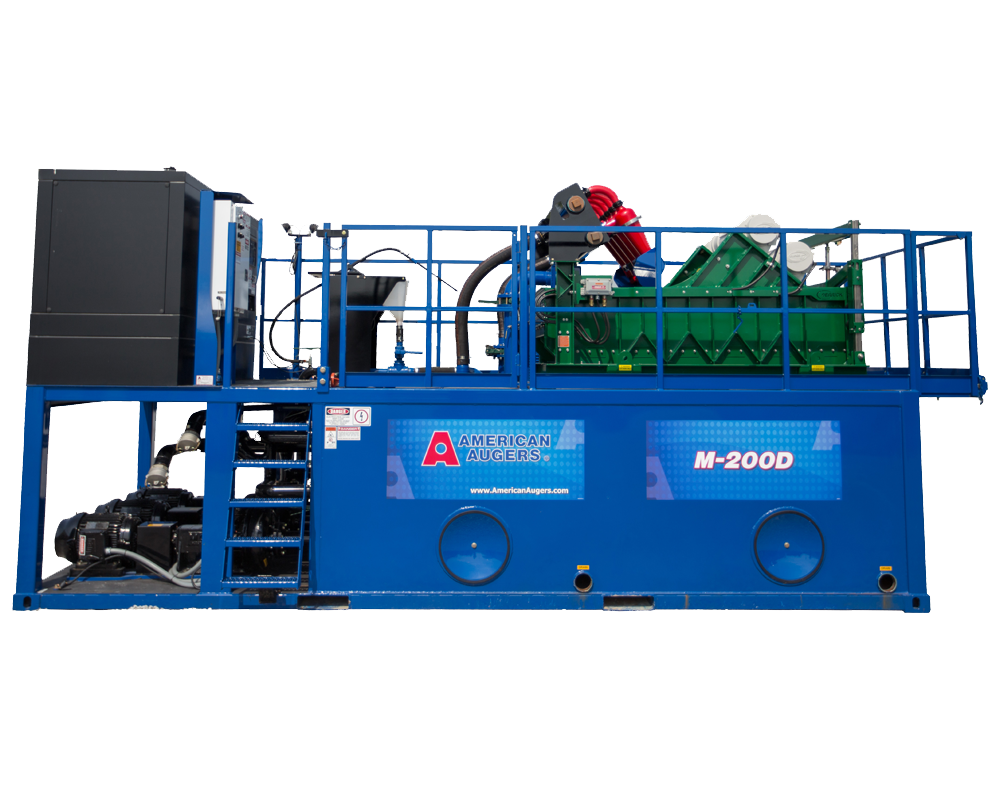

American Augers M-200D
Mud Cleaning & Pumps
FEATURES
Built for the 100,000 lb drill class and down.
- 200 gpm capacity of backreamed drill fluid. Sized for how you work.
- Single deck shaker for easy maintenance and visibility during operation
- Excellent tank agitation to keep solids in suspension so they can be removed
- Solid deck to prevent contamination from falling into the tank
- Continuous duty electric pit pump for easy control and performance
Equipment Features
Featured Content
- Work LightsYes
- Worklight- Qty/ Voltage / Type4 / 24V DC / LED
- Electrical Grounding Stake & CableYes
- Ladder W/ Anti-Slip TreadsYes
- Anti-Slip Walkways W/ Hand Rails & KickplatesYes
- Emergency Shutdown Switch On Operator Control PanelYes
- Available Or NotYes
- Transport TypeTrailer
- Transport TypePintle Hitch
- Lift JacksYes
- Operation TypeManual
- Lift Clearance At Kingpin- In (Mm)N/A
- Estimated Machine Weight- Lbs (Kg)21,000 (9,525)
- Estimated Machine Weight W/ Trailer- Lbs (Kg)27,600 (12,600)
- Size- Kw (Prime Power) / Volt / Hz90 / 480 / 60
- TypeGEN-TECH III
- Fuel Capacity- G (L)55 (208)
- Fuel Consumption- Gph (Lph)/ Hour @ Load5 (19)/ HOUR @ 75%
- Noise Rating Distance1M 86 DB, 3M 82 DB
- Centrifugal Pumps250 series with mechanical seal and 25 HP motors
- Cone Supply & Agitation3 in. x 4 in. with 10.5 in. Impeller
- Mud Mix & Agitation3 in. x 4 in. with 10.5 in. Impeller
- Offload & Agitation3 in. x 4 in. with 9 in. Impeller
- Bentonite MixerPolyethylene dry bentonite mix hopper
- Remote Controls AvailableYes
- Offload (Supercharge) Start/ StopYes
- Pit Pump Start/ StopYes
- Total Tank Capacity3,000 U.S. gal (11,356 L)
- Screen Tank1,700 U.S. gal (6,435 L)
- Clean Fluid/Mixing Tank1,300 U.S. gal (4,921 L)
- Cleanout Port Size – In. (Mm)18 (457)
- Maximum Length- Ft (M)20.0 (6.1)
- Maximum Height- Ft (M)10.0 ( 3.05)
- Maximum Width- Ft (M)8.0 (2.44)
- Maximum Length W/ Trailer- Ft (M)26.2 (7.98)
- Maximum Height W/ Trailer- Ft (M)13.0 (3.96)
- Maximum Width W/ Trailer- Ft (M)8.6 (2.59)
- Pit Pump Lay Flat- Qty2
- Pit Pump Lay Flat Size- In (Mm)3.0 (76.2)
- Pit Pump Lay Flat Length- Ft (M)50.0 (15.2)
- Male To Male CouplerYes
- Coupler Size- In (Mm)3.0 (76.20)
- Motor- Hp (Kw)/ Phase/ Volt / Hz5 (3.7) 3PH / 460 / 60
- SubmersibleYes
- Cable Length- Ft (M)100 (30.48)
- Discharge Size- In (Mm)3 (76.20)
- Max Flow- Gpm (Lpm)475 (1798)
- Derrick FLC-503 Linear Motion Shaker (1)3 panel with 34.5 Ft² non-blank screen area
- Shaker Screens Included(1) API 60 Derrick PMD+ (pyramid plus)
- (1) API 50 Derrick PMD+ (pyramid plus)
- (1) API 140 Derrick PMD+ (pyramid plus)
- 1st Cut Shaker Cleaning Capacityup to 200 U.S. gal. (760 L)/min
- Desilting Cones(5) 5 in (127 mm) desilter hydrocyclones
- Desilting Capacityup to 600 U.S. gal. (2,271 L)/min
