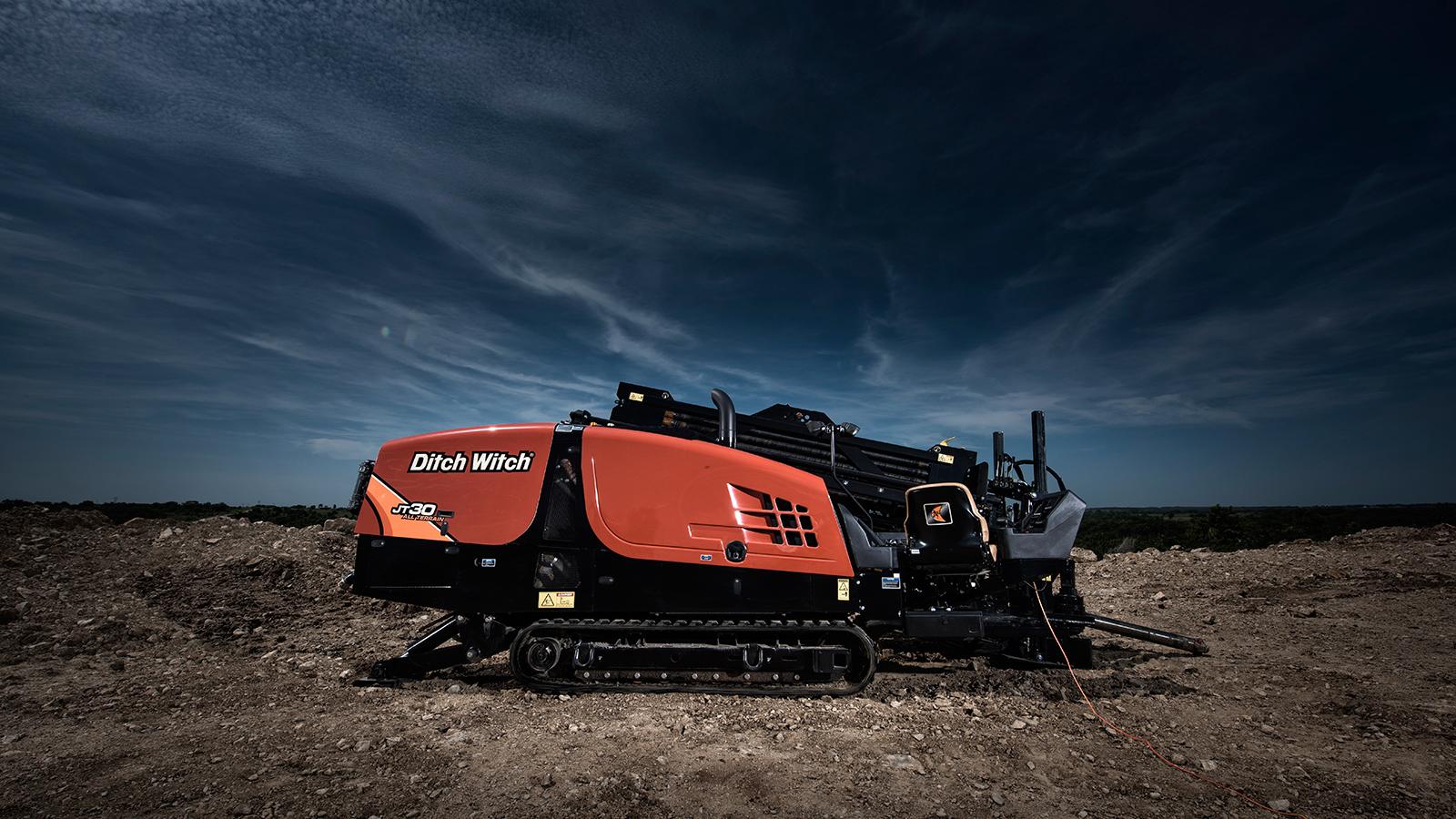

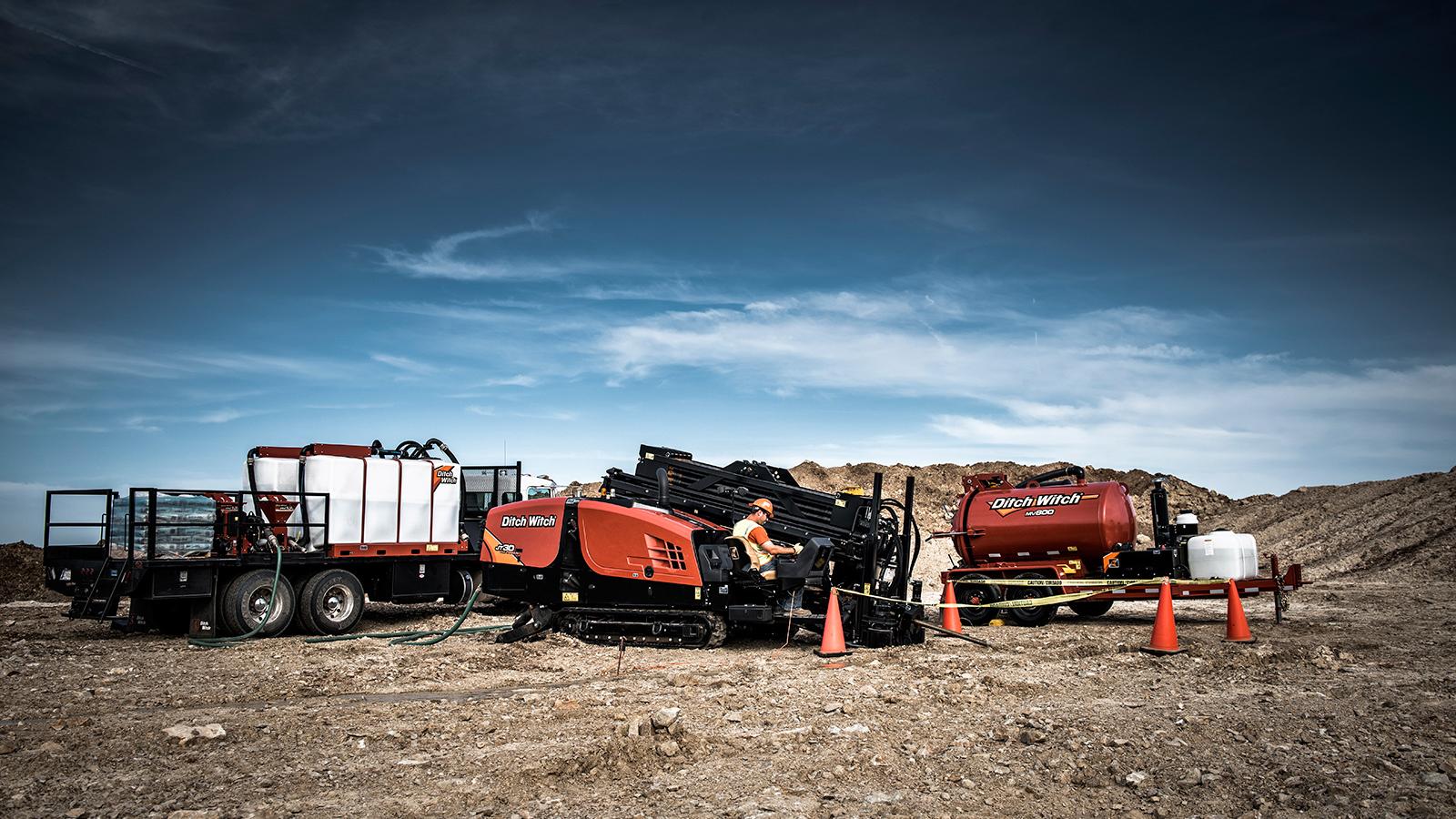

Ditch Witch JT30 All Terrain Directional Drill
Our customers wanted more power to perform all functions at once. They wanted a heavy-duty stake-down system for greater stability when boring and backreaming. They wanted greater horsepower, a higher-capacity pump, advanced electronics—and, of course, they wanted all of it to be easy to operate. Our engineers love a challenge, and you’ll love the JT30 All Terrain directional drill.
Equipment Features
Featured Content
JT30 All Terrain
Power
160-gross-hp (119-kW), Tier 4 engine is the most powerful in its class; full power to all machine functions greatly enhances your overall productivity.
Equipped with 24,800 lb (110 kN) of thrust and 30,000 lb (133 kN) of pullback force for efficient installation in tough soils.
All Terrain Pipe
Length of drill pipe, nominal
112 in
2.84 m
Diameter of drill pipe, tool joint end
3.25 in
83 mm
Diameter of drill pipe
2.23 in
57 mm
Bend radius, min
145 ft
44 m
Weight of drill pipe, lined
100 lb
45 kg
Weight of drill pipe & large box (35 pipe)
4,599 lb
2086 kg
Weight of drill pipe & small box (20 pipe)
2,847 lb
1291 kg
All Terrain Pipe Cobble Pipe
Length of drill pipe, nominal
112 in
2.84 m
Joint diameter
3.25 in
83 mm
Pipe diameter
2.94 in
75 mm
Weight of drill pipe w/inner rod
127 lb
58 kg
Weight of drill pipe & large box (35 pipe)
5,544 lb
2515 kg
Weight of drill pipe & small box (20 pipe)
3,387 lb
1536 kg
POWER (TIER 3) (LRC)
Engine
Cummins® QSB4.5
Fuel
Diesel
Cooling medium
Liquid
Injection
Direct
Aspiration
Turbocharged & charge air cooled
Number of cylinders
4
Displacement
275 in3
4.5 L
Bore
4.21 in
107 mm
Stroke
4.88 in
124 mm
Manufacturer’s gross power rating
148 hp
110 kW
Rated speed
2,300 rpm
Peak gross power @ 2,000 rpm
156 hp
116 kW
Emissions compliance
EPA Tier 3
EU Stage IIIA
JT30 All Terrain
Innovative Design
Quietest directional drill in its class (max. 85 dBA operator sound pressure), so there’s less environmental impact, less disruption in urban areas, and greater operator comfort.
With a narrower width (80 inches/2 m, w/o cab) than the competition, the JT30 All Terrain is a higher-horsepower drill that can operate in tighter spaces.
Advanced electronic system features improved diagnostics and customer-recommended electronic functions.
Exclusive assisted makeup and breakout feature: JT30 All Terrain automatically adjusts carriage thrust speed when making up and breaking out drill pipe, saving wear on pipe threads and reducing operator fatigue.
Automatic, intuitive carve mode reduces operator fatigue and error and is compatible with industry-leading TriHawk HD housings and bits for exceptional efficiency and productivity.
Field-proven, heavy-duty rack and pinion thrust drive; welded-on double rack offers minimum maintenance and maximum reliability.
JT30 All Terrain
All Terrain

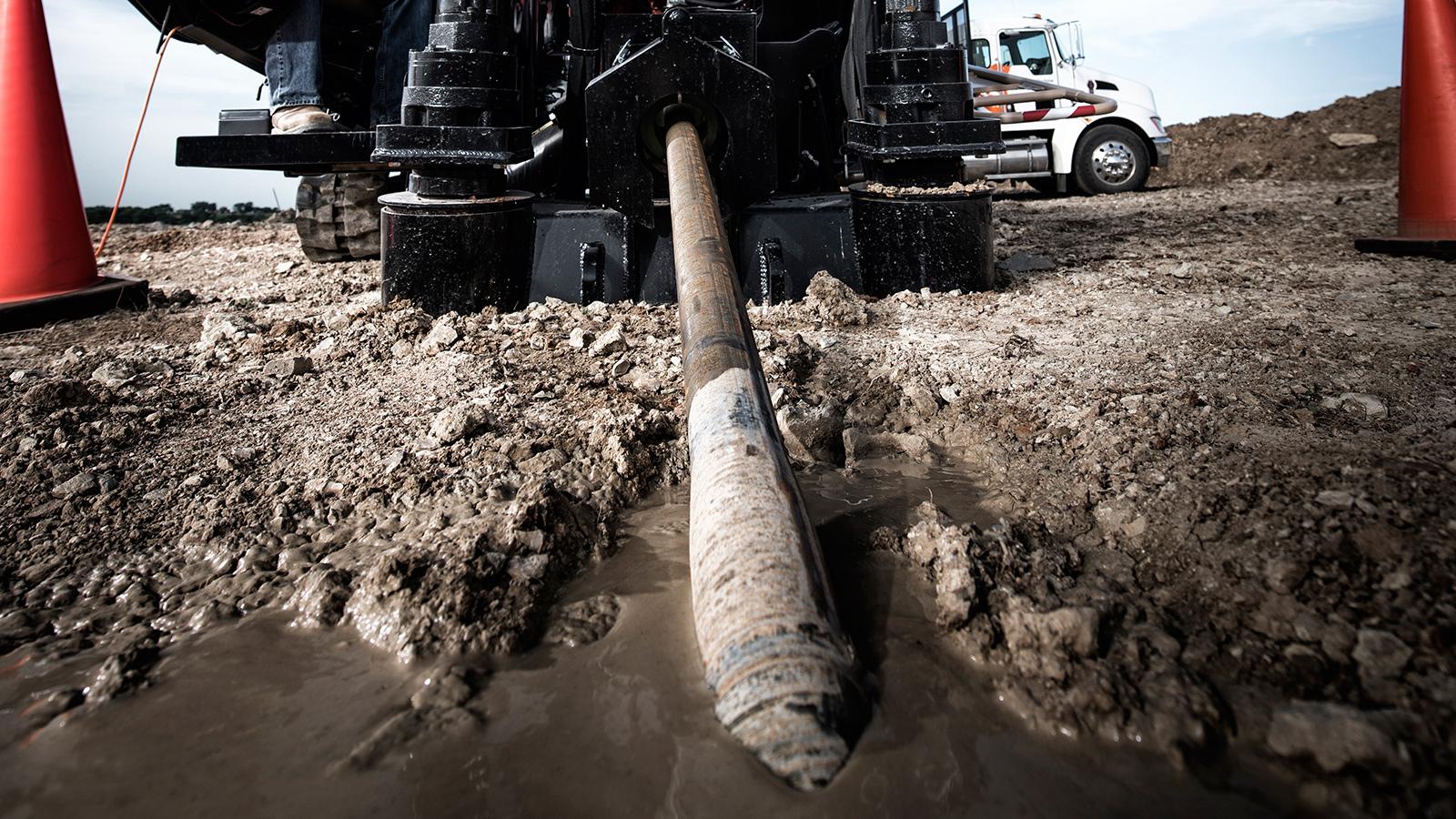

Patented Ditch Witch All Terrain technology features the industry’s most advanced inner-rod design, proven to increase mud flow and power.
POWER (TIER 4)
Engine
Cummins QSB4.5
Fuel
Diesel
Cooling medium
Liquid
Injection
Direct
Aspiration
Turbocarged & charge air cooled
Number of cylinders
4
Displacement
275 in3
4.5 L
Bore
4.21 in
107 mm
Stroke
4.88 in
124 mm
Manufacturer’s gross power rating
160 hp
119 kW
Rated speed
2,300 rpm
Emissions compliance
EPA Tier 4
EU Stage IV
Fluid Capacities (Tier 4)
Hydraulic reservoir
27 gal
102 L
Fuel tank
48 gal
182 L
Engine lubrication oil, including filter
13.7 qt
13 L
Engine cooling system
24 qt
22.7 L
Antifreeze tank
8 gal
30 L
Diesel exhaust fluid tank
5 gal
18.9 L
Operation
U.S.
Metric
Spindle speed, max
225 rpm
Spindle speed, max (AT inner spindle)
400 rpm
Spindle torque, max
4,000 ft·lb
5420 N·m
Spindle torque, max (AT inner spindle)
800 ft·lb
1080 N·m
Carriage thrust travel speed
120 fpm
37 m/min
Carriage pullback travel speed
120 fpm
37 m/min
Thrust force (All Terrain mode)
24,800 lb
110 kN
Pullback force
30,000 lb
133 kN
Bore diameter (All Terrain w/Rockmaster™ 822)
4.75 in
121 mm
Bore diameter (All Terrain w/Rockmaster 86)
5.5 in
140 mm
Backream diameter
Soil dependent
Ground travel speed
Forward
2.4 mph
3.9 km/h
Reverse
2.4 mph
3.9 km/h
JT30 All Terrain
Operator’s Station
Industry-exclusive, double-pivot drill frame allows steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep; enhances operator comfort because operator’s station stays level.
Optional cab features climate-controlled heat and air, for greater operator comfort and productivity.
Visibility enhanced by open-top vise wrenches and improved operator’s station; wrenches are angled toward the drill operator for an excellent view of the tool joint when making and breaking pipe, and all drill functions are clearly visible from operator station, with or without cab.
POWER PIPE Forged (For Dirt Drilling)
Length
120 in
3.05 m
Joint diameter
2.63 in
66.7 mm
Pipe diameter
2.38 in
60 mm
Bend radius, min
108.2 ft
33 m
Weight of drill pipe
73 lb
33 kg
Noise Level
Operator sound
86 dBA
Operator sound w/cab
83 dBA
Dimensions
Length, transport
221 in
5.61 m
Width
80 in
2.03 m
Width, w/cab
89 in
2.26 m
Height, transport
94 in
2.39 m
Weight, w/out pipe
17,660 lb
8010 kg
Weight, w/cab
18,560 lb
8418 kg
Entry angle
10-16°
Angle of approach
19°
Angle or approach, w/cab
15°
Angle of departure
18°
Fluid Capacities (Tier 3)
Hydraulic reservoir
27 gal
102 L
Fuel tank
56 gal
212 L
Engine lubrication oil, including filter
13.7 qt
13 L
Engine cooling system
24 qt
22.7 L
Antifreeze tank
8 gal
30 L
Diesel exhaust fluid tank
5 gal
18.9 L
JT30 All Terrain
Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
POWER PIPE® HD
Length of drill pipe, nominal
118 in
3 m
Joint diameter
2.75 in
70 mm
Pipe diameter
2.38 in
60 mm
Bend radius
123 ft
37.5 m
Weight of drill pipe, lined
88 lb
40 kg
Weight of drill pipe & large box (48 pipe)
5,323 lb
2415 kg
Weight of drill pipe & small box (24 pipe)
2,959 lb
1342 kg
JT30 All Terrain
Productivity

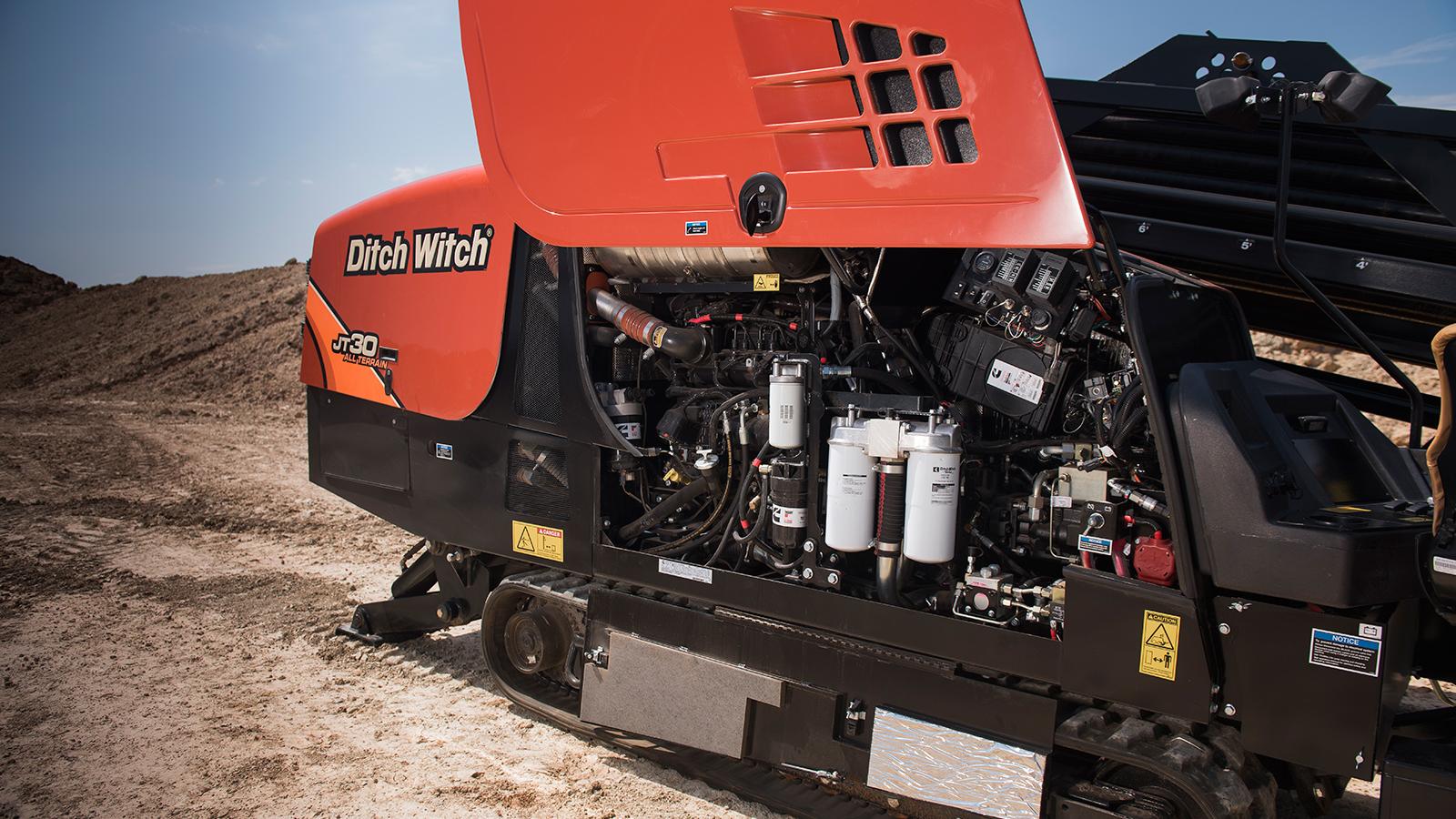

Hinges on main and rear hoods allow easy access to all service points in the engine and mud pump; rear mud pump cover allows you to operate in colder conditions.
Heavy-duty anchor system enables you to stake down the JT30 All Terrain in solid rock and push or pull with full machine thrust; better machine stability while drilling means a quick and more productive bore.
Battery (2 used)
SAE reserve capacity rating
195 min
SAE cold crank rating @ 0ºF (-18ºC)
950 amps
Drilling Fluid System
Pressure, max
1,500 psi
103 bar
Flow, max
50 gpm
189 l/min
