DIMENSIONS
U.S.
METRIC
Length
368 in
9.35 m
Width
101 in
2.57 m
Height
110 in
2.79 m
Weight
50,740 lb
23,015 kg
Entry angle
10-15°
Angle of approach
13°
Angle of departure
17°
DRILLING FLUID SYSTEM (ON BOARD)
U.S.
METRIC
Drilling fluid pressure, max
1,000 psi
69 bar
Drilling fluid flow, max (AT – 120 gpm pump)
120 gpm
450 l/min
JT100 All Terrain
All Terrain
Industry-exclusive, patented two-pipe drilling system provides more power to the bit than any other rock-drilling system in its class. The inner pipe works as a mechanical motor that drives the bit during the bore; the outer pipe thrusts the bit forward, steers the drill shaft and works to transmit full machine torque during the backream.
All Terrain is the only proven technology that enables simultaneous drilling and steering through rock and hard soil conditions, low drilling fluid volume means less waste, less cleanup and less environmental impact.
With its infinitely variable rotary drive, the JT100 All Terrain is the only rock drill in its class that can truly match exact spindle speed and torque to power through infinitely varying ground formations.
The JT100 All Terrain offers the optional pipebox loader device designed to transfer drill pipe from one box to another—and add or remove the upper pipe box—without the need for additional support equipment, so the pipe box is never empty.
ALL TERRAIN PIPE
U.S.
METRIC
Length of drill pipe, nominal
169.50 IN
4.31 m
Diameter of drill pipe, tool joint end
4.5 in
114 mm
Diameter of drill pipe
3.63 in
92 mm
Bend radius, min
205 ft
63 m
Weight of drill pipe
284 lb
130 kg
Weight of drill pipe & box (12 pipe)
4,430 lb
2010 kg
JT100 All Terrain
Productivity
The exclusive Ditch Witch heavy-duty anchor system eliminates the need for large and expensive support equipment, reducing transportation costs, setup time, and jobsite size.
The JT100 is the only drill in its class that enables the transfer of drill pipe from one box to another—and add or remove the upper pipe box—without additional support equipment, so the pipe box is never empty.
Large-capacity, 230-gpm (870 l/min) fluid pump plus larger hoses and fittings help move fluid downhole faster, for greater productivity; special damping feature reduces the downhole shockloads associated with greater fluid flow.
Ditch Witch designs and manufactures the long-lasting All Terrain drill pipe compatible with the AT100. Ditch Witch drill pipe provides the most return on your investment—each piece is inspected and gauged to ensure quality and reliability bore after bore.
FLUID CAPACITIES
U.S.
METRIC
Hydraulic reservoir
47 gal
180 L
Fuel tank
97 gal
370 L
OPERATION
U.S.
METRIC
Spindle speed, max (AT inner spindle)
270 rpm
Spindle torque, max (AT inner spindle)
2,000 ft·lb
2700 N·m
Carriage thrust travel speed
150 fpm
46 m/min
Carriage pullback travel speed
150 fpm
46 m/min
Thrust force
70,000 lb
311 kn
Pullback force
100,000 lb
445 kn
Bore diameter
6.25 in
159 mm
Backream diameter
Soil dependent
Ground travel speed
Forward/reverse
3.6 mph
5.8 km/h
JT100 All Terrain
Power

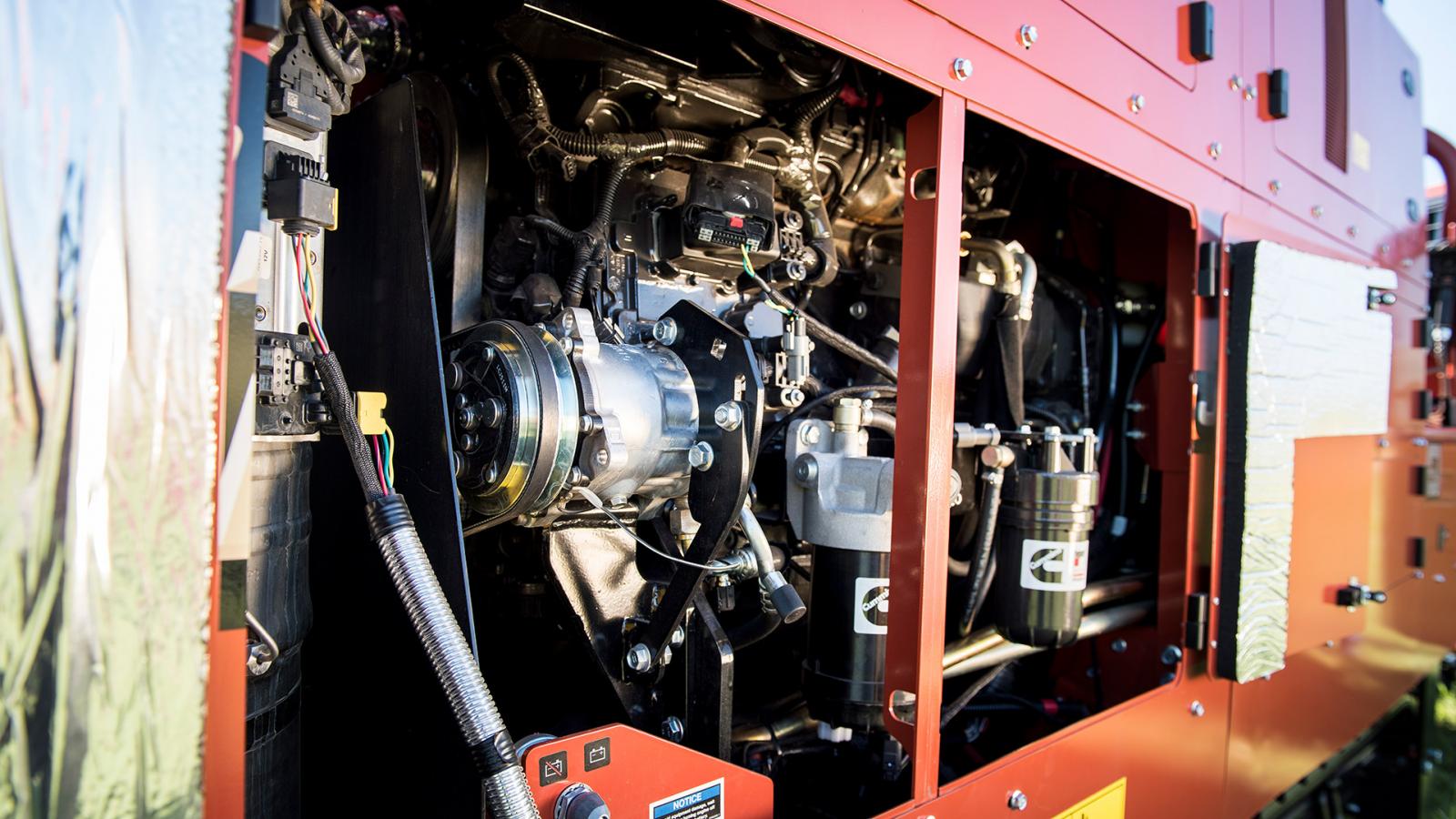

JT100’s 260-hp (194-kW) Cummins® engine delivers raw power more efficiently to all machine functions so the installation can be completed faster. The 268-hp (200-kW) Tier 3 Duetz® engine is available in less regulated countries.
With 100,000 lb (445 kN) of pullback and 12,000 ft·lb (16270 N·m) of torque, the JT100 is the ideal HDD unit for long bores, such as river crossings, and installations of large-diameter pipe.
With its infinitely variable rotary drive, the JT100 is the only drill in its class that can truly match spindle speed and torque, enabling it to power through virtually any soil condition.
BATTERY (2 USED)
SAE reserve capacity rating
450 min
SAE cold crank rating @ 0ºF (-18ºC)
1,400 amps
Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
JT100 All Terrain
Innovative Design

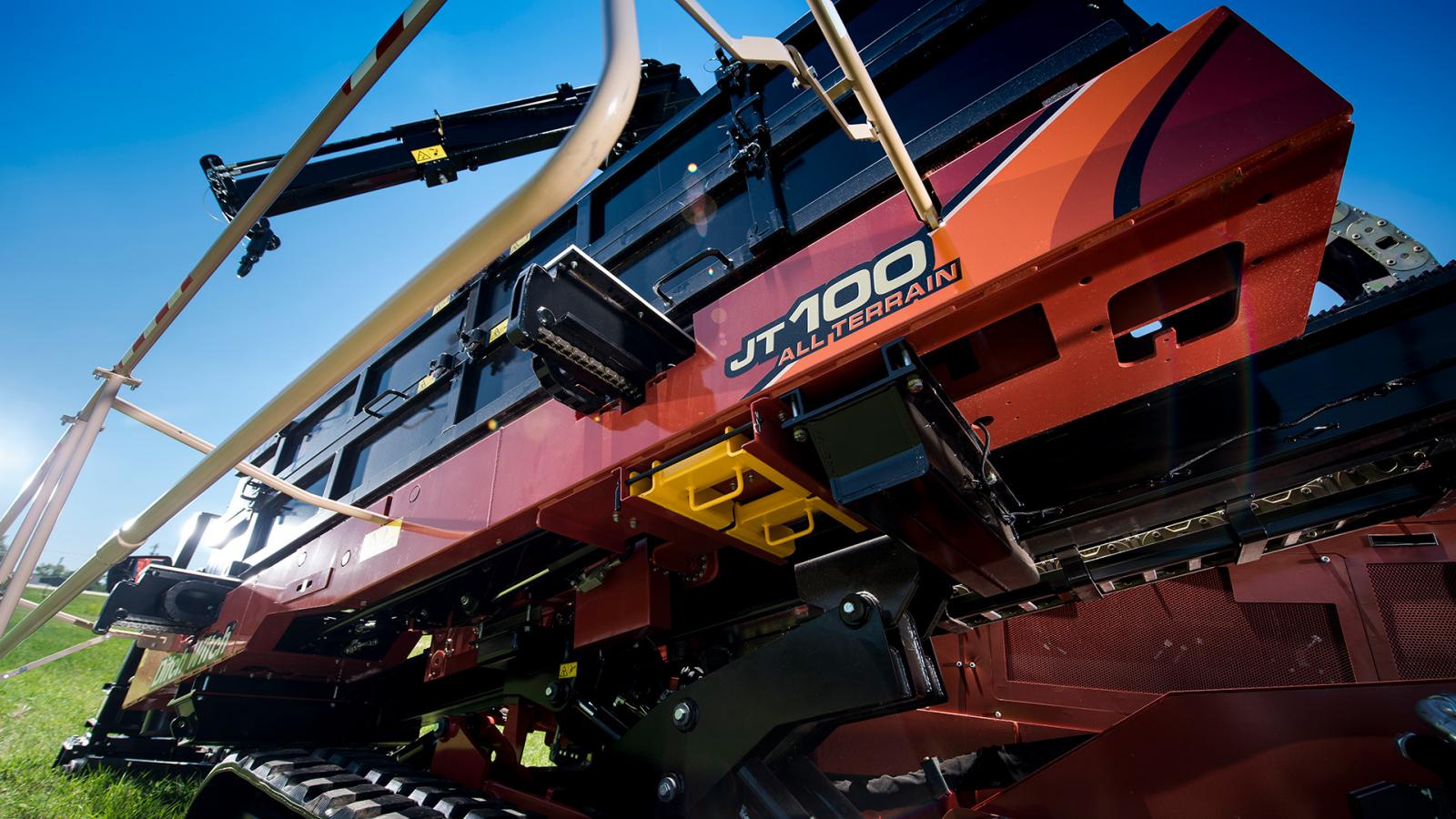

Exclusive dual-pivot drill frame allows for steeper entry angles without raising the tracks off the ground, for outstanding machine stability and greater operator comfort.
Heavy-duty, double rack-and-pinion thrust drive is field-proven to push through the longest, toughest bores.
By providing the operator better control when making pipe connections, the exclusive coordinated makeup feature automatically adjusts carriage thrust speed when making up and breaking out drill pipe, minimizing wear on pipe threads and extending the life of the drill pipe.
Efficient hydraulic cooling system requires significantly less hydraulic fluid than competitors’ models, reduces maintenance costs and keeps the engine operating efficiently throughout the workday.

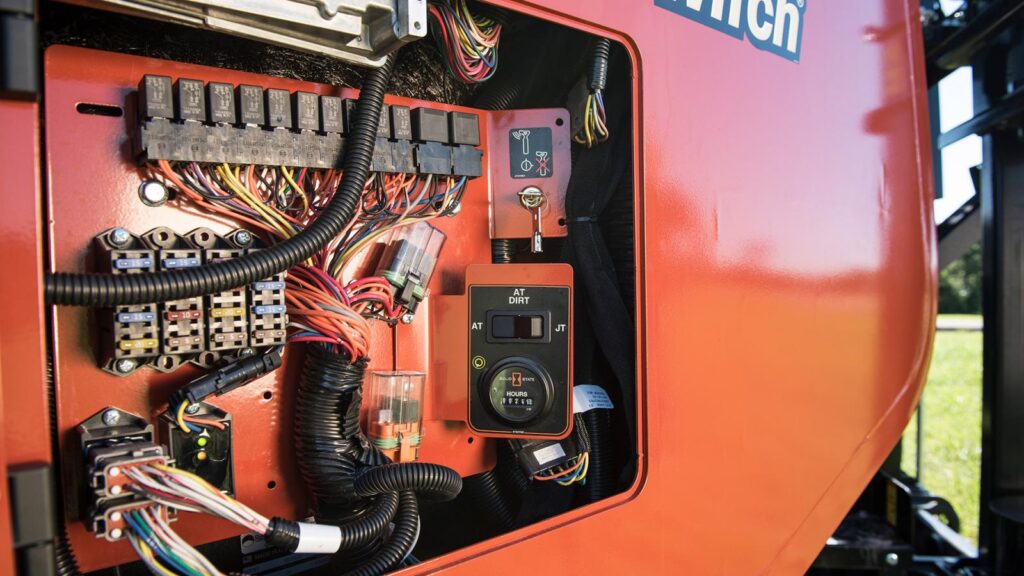

Daily maintenance points can be easily accessed from one side of the machine resulting in more uptime each day.
JT100 All Terrain
Operator’s Station
Fully enclosed tinted window cab features instrument panel gauges that are positioned for visibility and conveniently placed controls.
Excellent view of the tool joint when making up and breaking out pipe; open-top vise wrenches are angled toward the operator.
Full color LCD display provides easy to understand engine diagnostics and informational messages which allows operators to stay informed on machine performance.
New extreme comfort operator’s seat improves overall comfort for the long days on the jobsite.
JT100 All Terrain
Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
POWER
U.S.
METRIC
Engine
Cummins QSB6.7
Fuel
Diesel
Cooling medium
Liquid
Injection
Direct
Aspiration
Turbocharged & charge air cooled
Number of cylinders
6
Displacement
409 in3
6.7 L
Bore
4.21 in
107 mm
Stroke
4.88 in
124 mm
Manufacturer’s gross power rating
260 hp
194 kW
Power Bulge at 2,000 rpm
270 hp
201 kW
Estimted net power rating
257 hp
192 kW
Rated speed
2,200 rpm
Emissions compliance
EPA Tier 4
EU Stage IV
It’s serious business when you need a rock-drilling machine as big as the JT100 All Terrain directional drill, so you expect some serious power. The JT100 All Terrain delivers, with 100,000 lb (445 kN) of pullback supported by a monstrous, 268-hp (200-kW) engine. All of this earth-shaking power requires some serious stability, which is why the JT100 All Terrain directional drill is equipped with an exclusive dual-pivot drill frame. Of course, everything is engineered to maximize the productivity of the machine’s patented All Terrain technology, a two-pipe drilling system that enables you to drill and steer simultaneously.
