Featured Content
C16
Reliability
New, robust, straightforward pivot design is maintenance-free and increases unit uptime.
Greaseless sealed bearing design with construction-grade seals help increase machine longevity.
No daily grease points—a Ditch Witch exclusive—means less hassle and prep to keep your trenchers rental-ready.
Standard outboard bearing support stabilizes the headshaft and auger, for reliable productivity trench after trench.
Simple, open design allows for quick, easy service access.
Trench Size (max)
Depth
36in
Width
6in
C16
Ease of Use
Hydrostatic, skid-steer style steering provides easier operation.

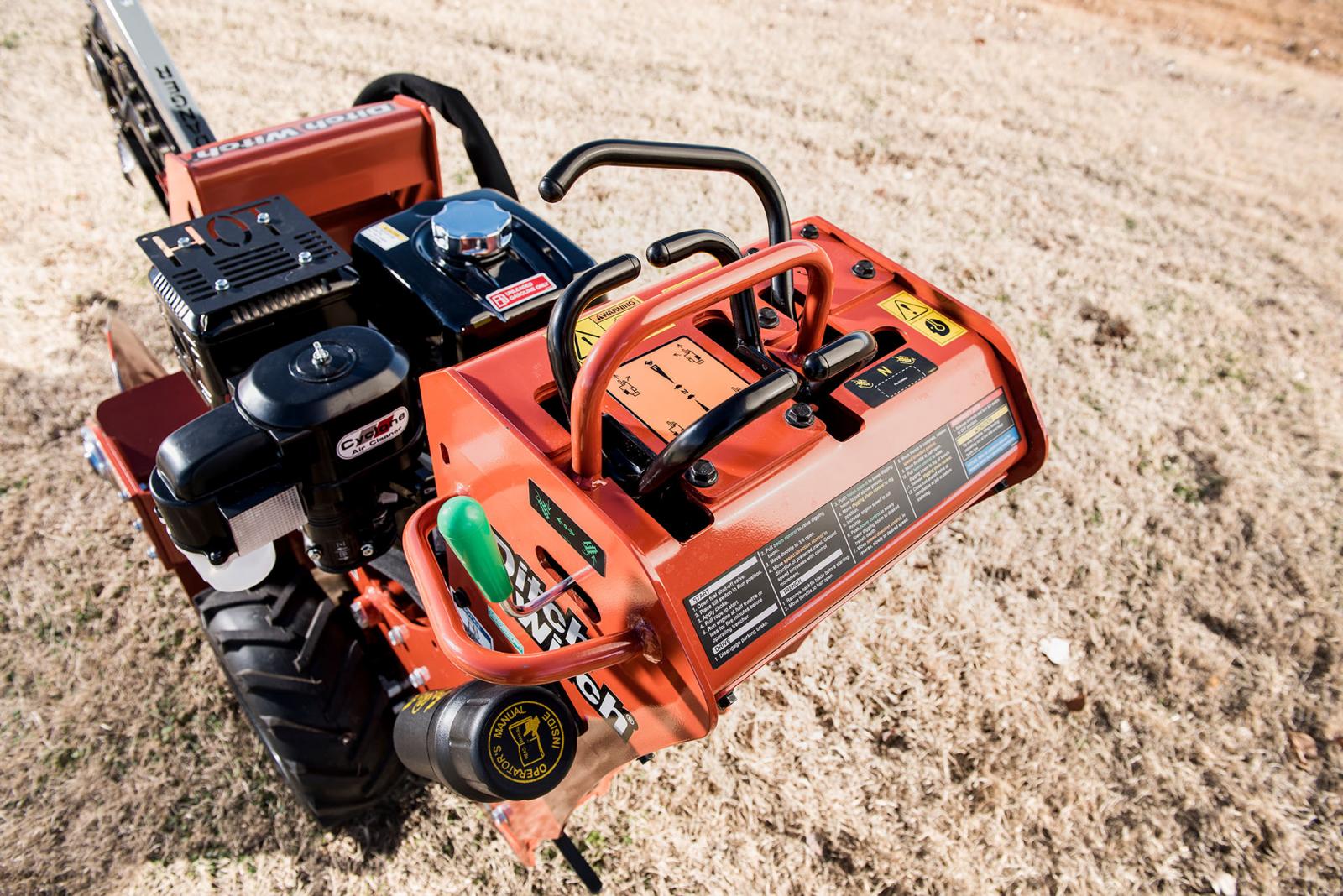

Redesigned easy-touch controls are smoother and lighter for less operator fatigue and increased machine responsiveness.
Increased visibility of the workstation improves operator productivity.
Power
Engine
Vanguard™
Fuel
Gasoline
Cooling
Air
Number of Cylinders
2
Manufactures Net HP rating
16 HP
11.9kW
Rated Speed
3600 RPM
Fuel Consumption @ Rated Power
1.33 GPH
5LPH
Starting
Electric
Noise Level
Operator
TBD
Overall
TBD
Dimensions
U.S.
Metric
Width
31.5in
800mm
Cl to Right
17.3in
439mm
CL to Left
14in
356mm
Headshaft
13in
330mm
Length (Up to)
0mm
Height, Transport (Up to)
48in
1.2m
C16
Offset Rear Tires
Exclusive, patent-pending offset rear tire design delivers balanced traction and optimal weight distribution for increased production over competitive rubber-tire units.

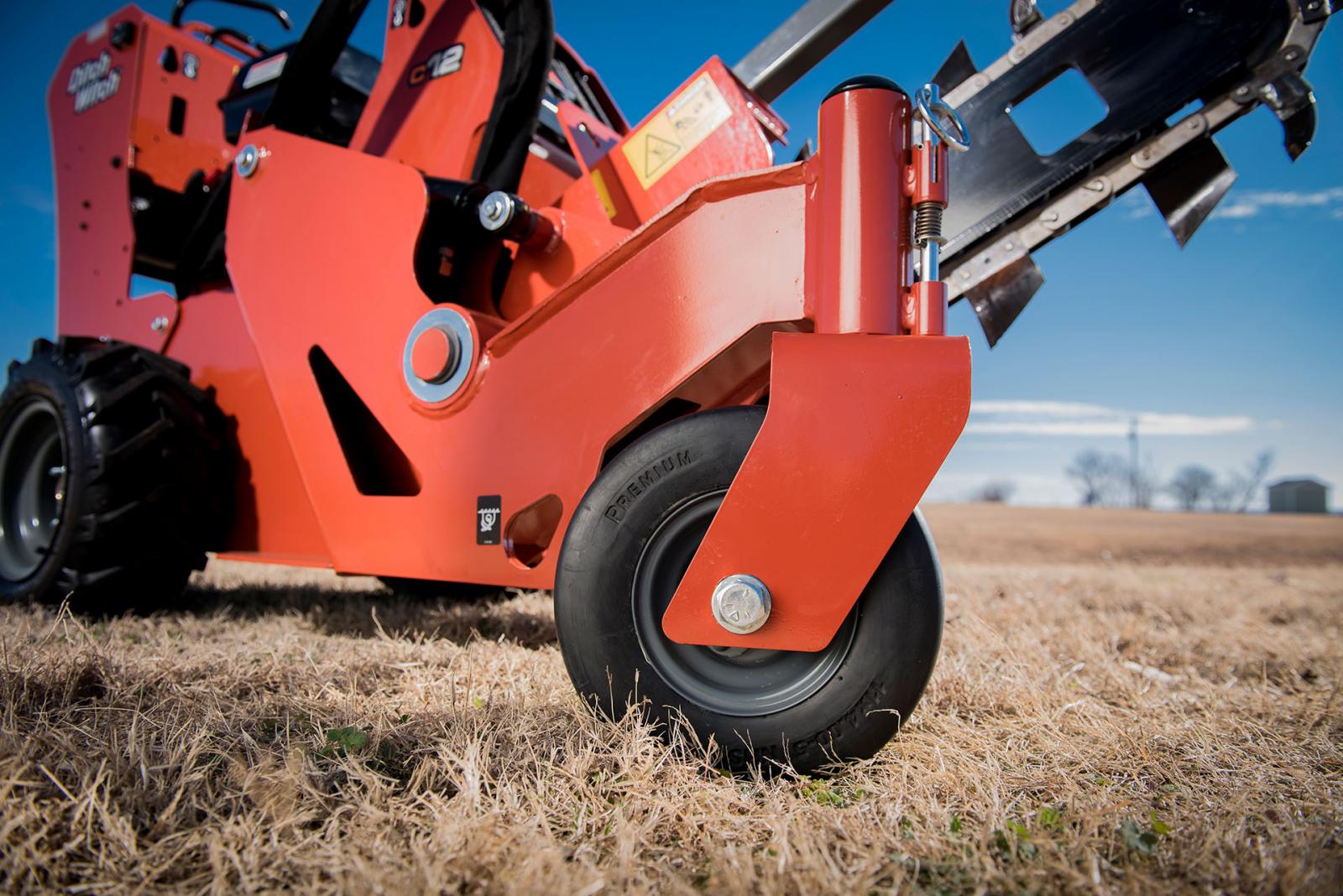

Patent-pending pivoting trail wheel allows easier turning, better maneuverability, and smother operation on rough terrain or pavement.
Flat-free tires require no maintenance and deliver increased uptime for rental customers.
Hydraulic System
Digging drive pump capacity
10GPM
Ground Drive
Dual Speed
Transit
11.5 GPM
Digging
1.5 GPM
Filtration
10 Micron Absolute
Operation
Travel Speed (Fwd)
TBD
Travel Speed (Rev)
TBD
Diggin Chain Speed (Std)SUM
33/35K
309 ft/min
Spoils Handling
Auger, Single, Open end
Auger Diameter
17in
Trencher Cleaner Type
Mechainical
Trench Cleaner Size
4-6in
Operating weight (up to)
TBD
C16
Superior Support
Ditch Witch equipment is backed by 170 dealer locations worldwide, each with genuine Ditch Witch parts in stock plus factory-trained service and expert advice to help deliver a superior return on investment for your rental equipment.
Fluid Capacites
Fuel
2.3 Gal
Hydraulic
7 Gal
C16
Options
The RotoWitch® boring attachment results in fewer disturbances, less labor and less restoration than tearing up driveways and sidewalks to complete an installation.
Our easy-to-operate backfill blade is much faster and less expensive than shovels, increasing productivity and rental revenue.
Ditch Witch also offers the S3C Trailer, a single-axle design with a new rail system for easy loading and unloading of equipment of up to 3,500 lb (1,588 kg).
Vibration Level
C16
Power

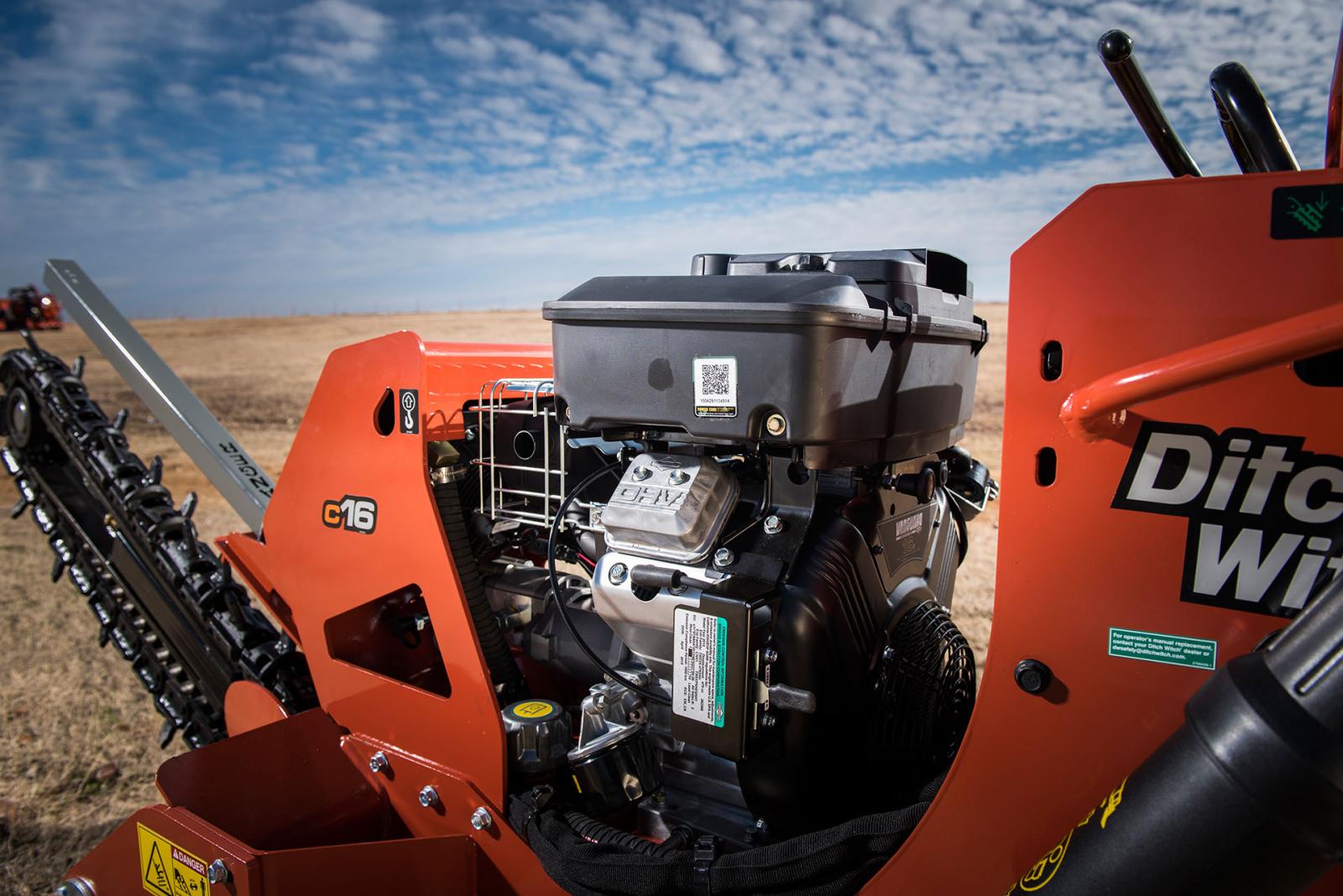

Reliable 16-hp (11.9-kW) Vanguard™ engine keeps the C16 performing for rental income you can count on, year after year.
Up to 36″ (914.4mm) digging depth for efficient installation of pipe and cable.
Newly designed hydraulic system eliminates vertical shafts and belts, resulting in a simple, reliable unit with no linkages to adjust.

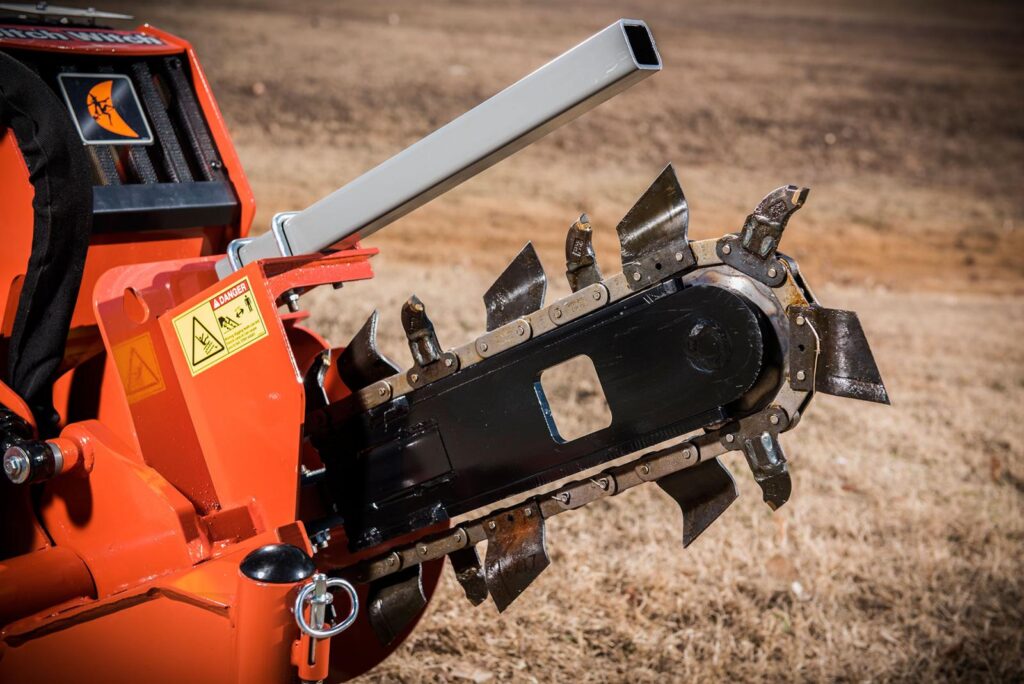

Utilizes the Ditch Witch 35K digging system, specifically designed to work with Ditch Witch trenchers to optimize production.
Power Train
Ground drive
Hydraulic, Infinite variable from zero to maximum, speed and direction control
Digging Chain Drive
Hydraulic direct drive, one speed forward, reverse
Pump Drive
Direct to Engine
Track Width
16 X 6.5-8
Hydraulic
Direct Drive
Digging Chain
33K/35K
Ground Pressure
TBD

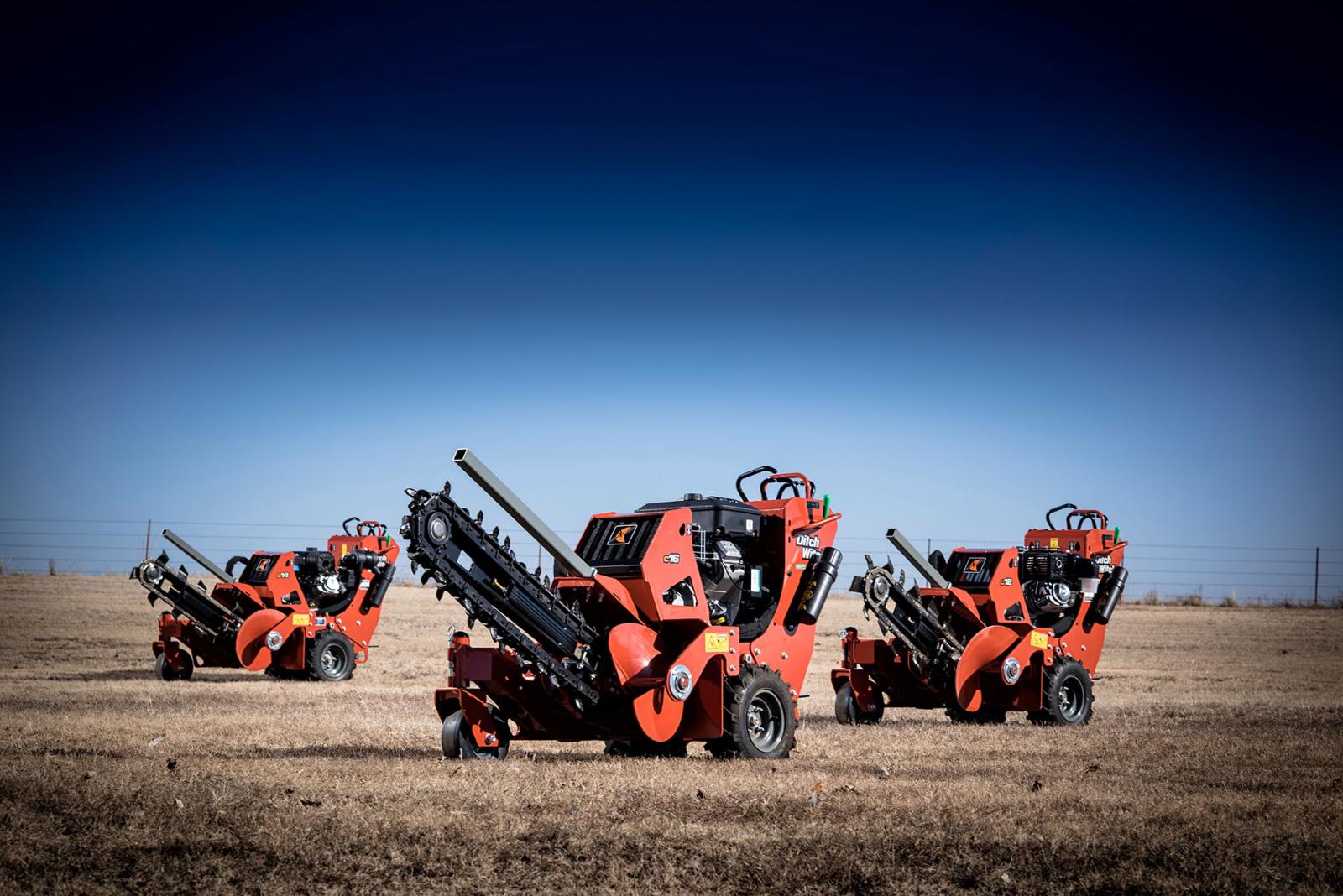

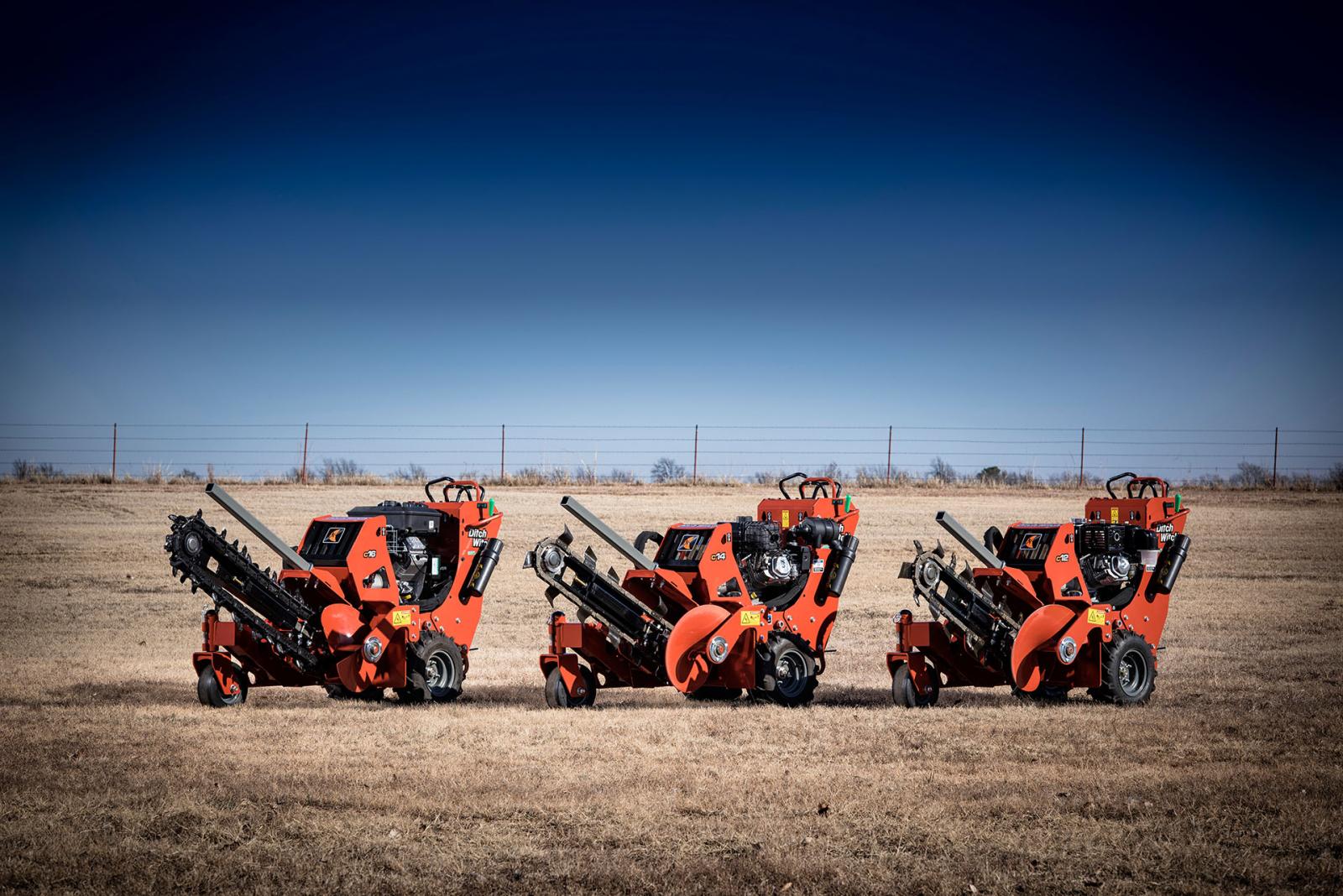

The Ditch Witch C16 Walk-Behind Trencher was designed with your rental business in mind. Only the C Series offers the balanced traction, better maneuverability and smoother operation of our patent-pending offset rear tire design and pivoting trail wheel. The reliable performance and simple operation will keep customers coming back. And the superior serviceability—a simple, open design for easy access and no daily grease points to worry about—will keep the C16 ready to rent to maximize your return on investment. The smart choice is easy to see: the C16 Walk-Behind Trencher.
