Featured Content
Dimensions
U.S.
Metric
Width
31.5 in
800 mm
CL to Right
17.3 in
439 mm
CL to Left
14 in
356 mm
Headshaft
13 in
330 mm
Length (Up to)
84 in
2.1 m
Height, Transport (Up to)
48 in
1.2 m
Fluid Capacites
Fuel
1.7 gal
Hydraulic
7 gal
C14
Power
Reliable 13.5-hp (10-kW) Briggs and Stratton® XR 2100 Series engine keeps the C14 performing for rental income you can count on, year after year.
Up to 24” (609.6 mm) digging depth for efficient installation of pipe and cable.
Newly designed hydraulic system eliminates vertical shafts and belts, resulting in a simple, reliable unit with no linkages to adjust.
Utilizes the Ditch Witch 35K digging system, specifically designed to work with Ditch Witch trenchers to optimize production.
Noise Level
Operator
TBD
Overall
TBD
Hydraulic System
Digging drive pump capacity
6 gpm
Ground Drive
Dual Speed
Transit
7.5 gpm
Digging
1.5 gpm
Filtration
10 micron absolute
Operation
Travel Speed (Fwd)
TBD
Travel Speed (Rev)
TBD
Diggin Chain Speed (Std)SUM
33/35K
351 ft/min
Spoils Handling
Auger, single, open end
Auger Diameter
17 in
Trencher Cleaner Type
Mechainical
Trench Cleaner Size
4-6 in
Operating weight (up to)
TBD
C14
Options
Our easy-to-operate backfill blade is much faster and less expensive than shovels, increasing productivity and rental revenue.
Ditch Witch also offers the S3C Trailer, a single-axle design with a new rail system for easy loading and unloading of equipment of up to 3,500 lb (1,588 kg).
Power Train
Ground drive
Hydraulic, Infinite variable from zero to maximum, speed and direction control
Digging Chain Drive
Hydraulic direct drive, one speed forward, reverse
Pump Drive
Direct to dngine
Track Width
16 x 6.5-8
Hydraulic
Direct Drive

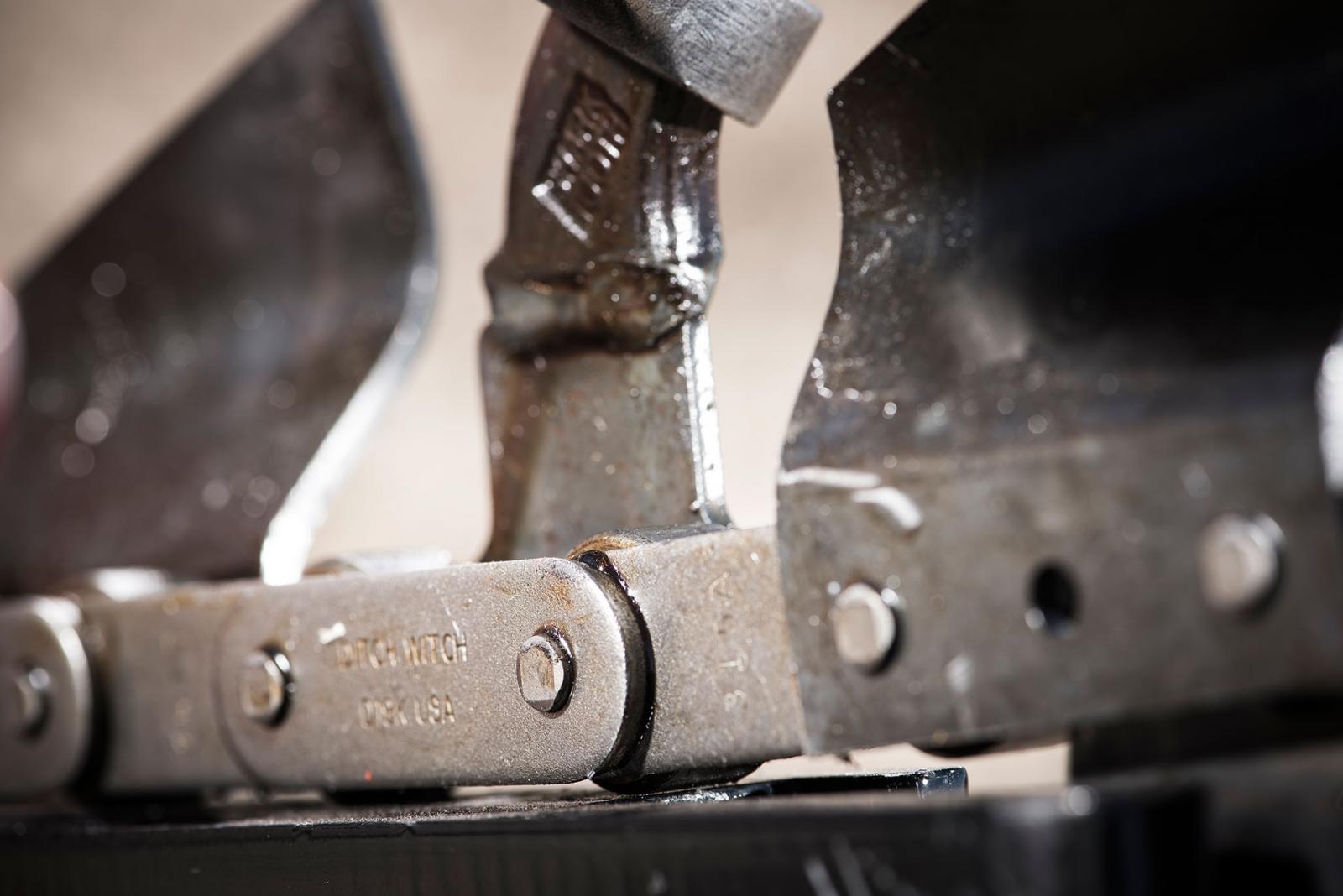

Digging Chain
33K/35K
Ground Pressure
TBD
C14
Ease of Use
Hydrostatic, skid-steer style steering provides easier operation.
Redesigned easy-touch controls are smoother and lighter for less operator fatigue and increased machine responsiveness.
Increased visibility of the workstation improves operator productivity.
C14
Superior Support
Ditch Witch equipment is backed by 170 dealer locations worldwide, each with genuine Ditch Witch parts in stock plus factory-trained service and expert advice to help deliver a superior return on investment for your rental equipment.
Vibration Level
Trench Size (max)
Depth
24 in
Width
6 in
C14
Offset Rear Tires
Exclusive, patent-pending offset rear tire design delivers balanced traction and optimal weight distribution for increased production over competitive rubber-tire units.

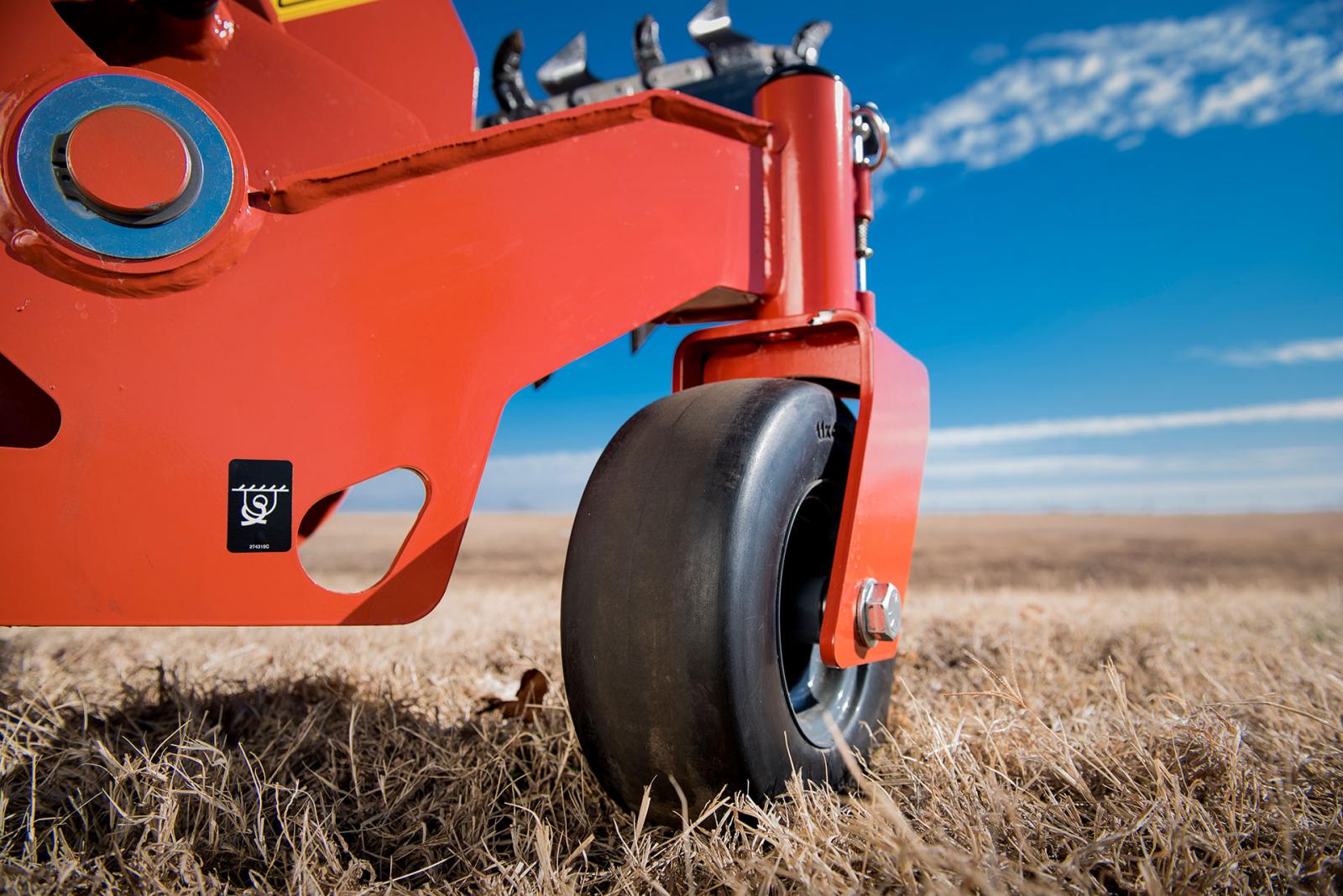

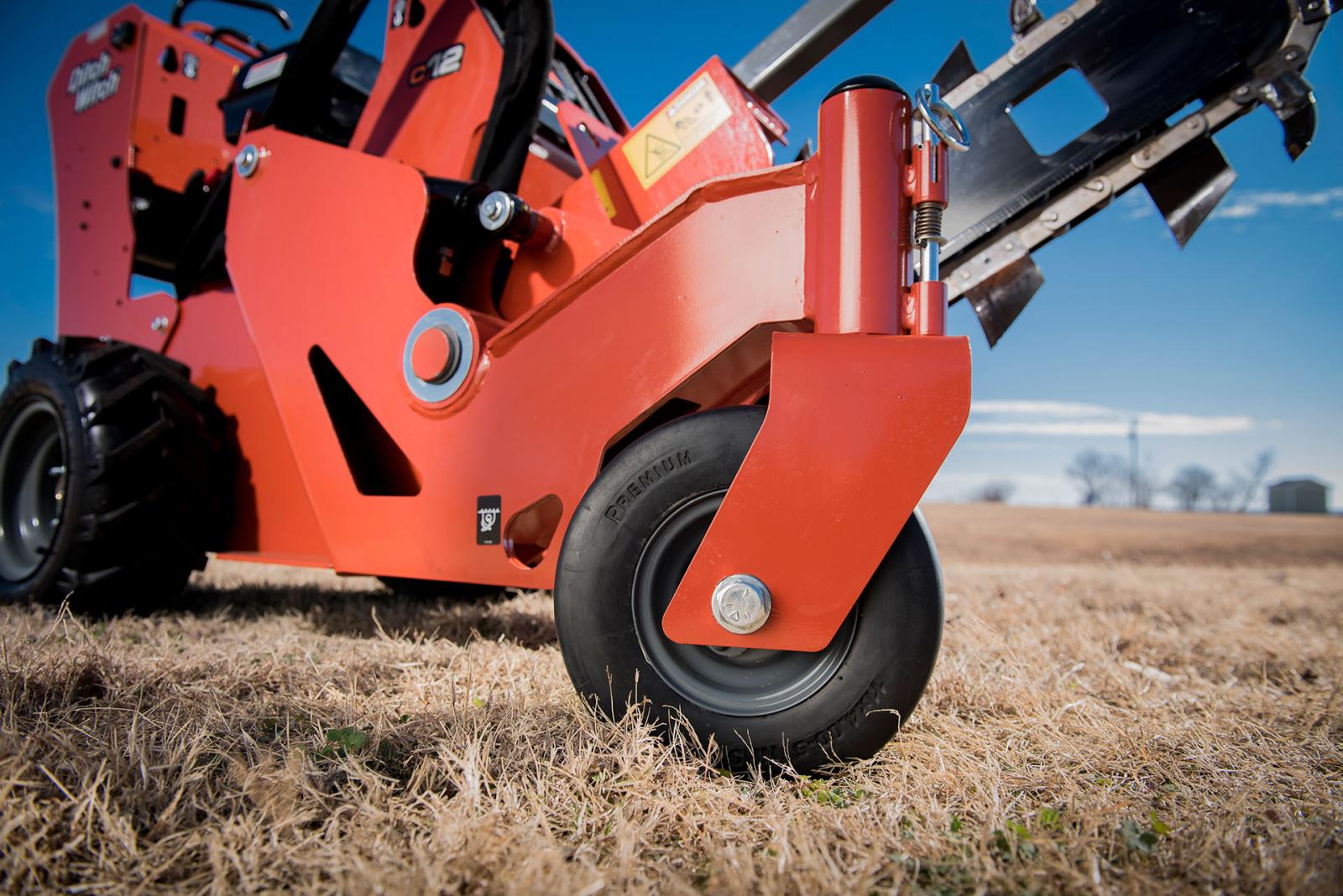

Patent-pending pivoting trail wheel allows easier turning, better maneuverability, and smother operation on rough terrain or pavement.
Flat-free tires require no maintenance and deliver increased uptime for rental customers.
C14
Reliability
New, robust, straightforward pivot design is maintenance-free and increases unit uptime.
Greaseless sealed bearing design with construction-grade seals help increase machine longevity.
No daily grease points—a Ditch Witch exclusive—means less hassle and prep to keep your trenchers rental-ready.

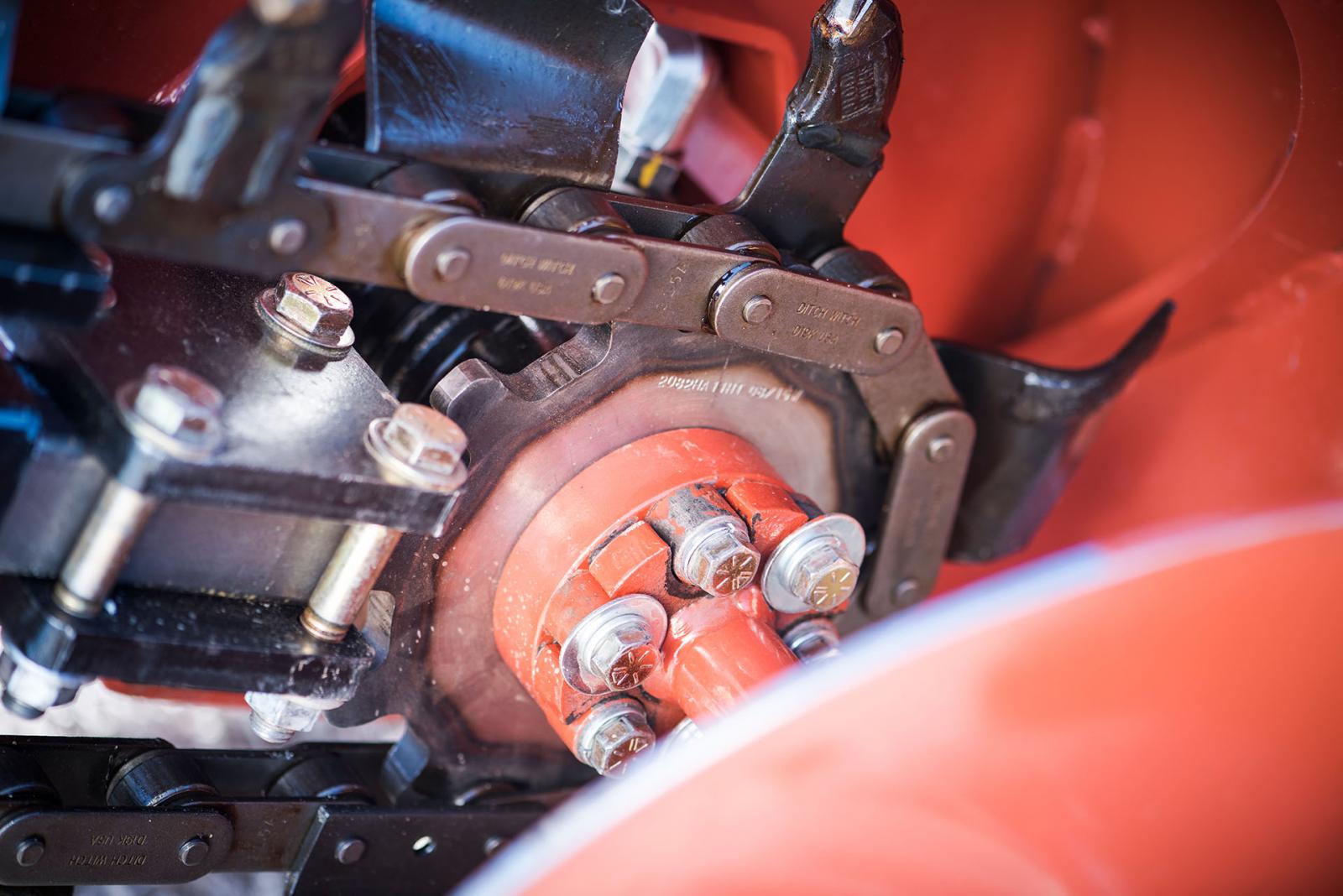

Standard outboard bearing support stabilizes the headshaft and auger, for reliable productivity trench after trench.
Simple, open design allows for quick, easy service access.

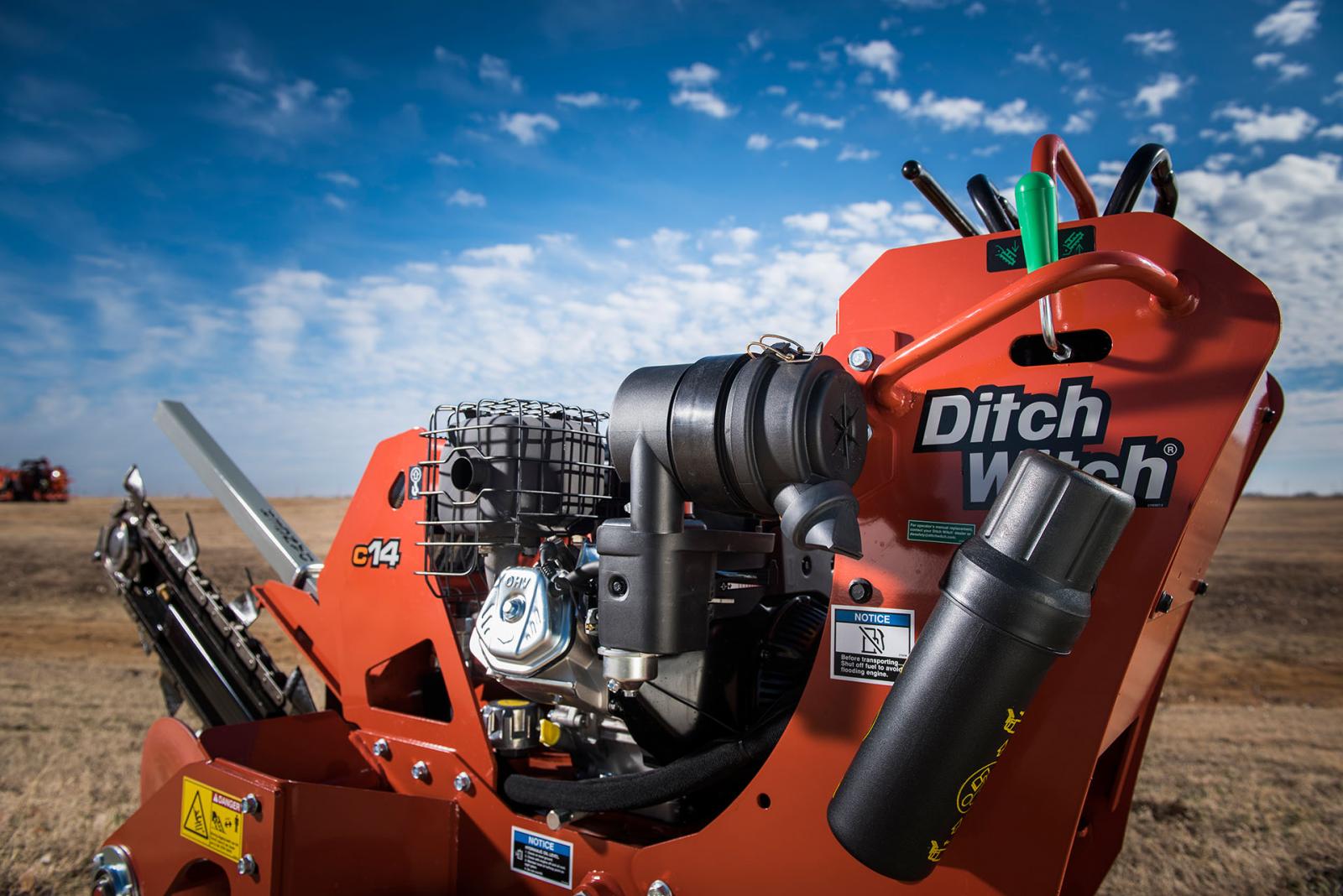

Power
Briggs & Stratton
Briggs & Stratton 2100 Series
Fuel
Gasoline
Cooling
Air
Number of Cylinders
1
Manufactures Net HP rating
13.5 hp
10 kW
Rated Speed
3600 rpm
Fuel Consumption @ Rated Power
1.3 gph
4.9 lph
Starting
Rope pull

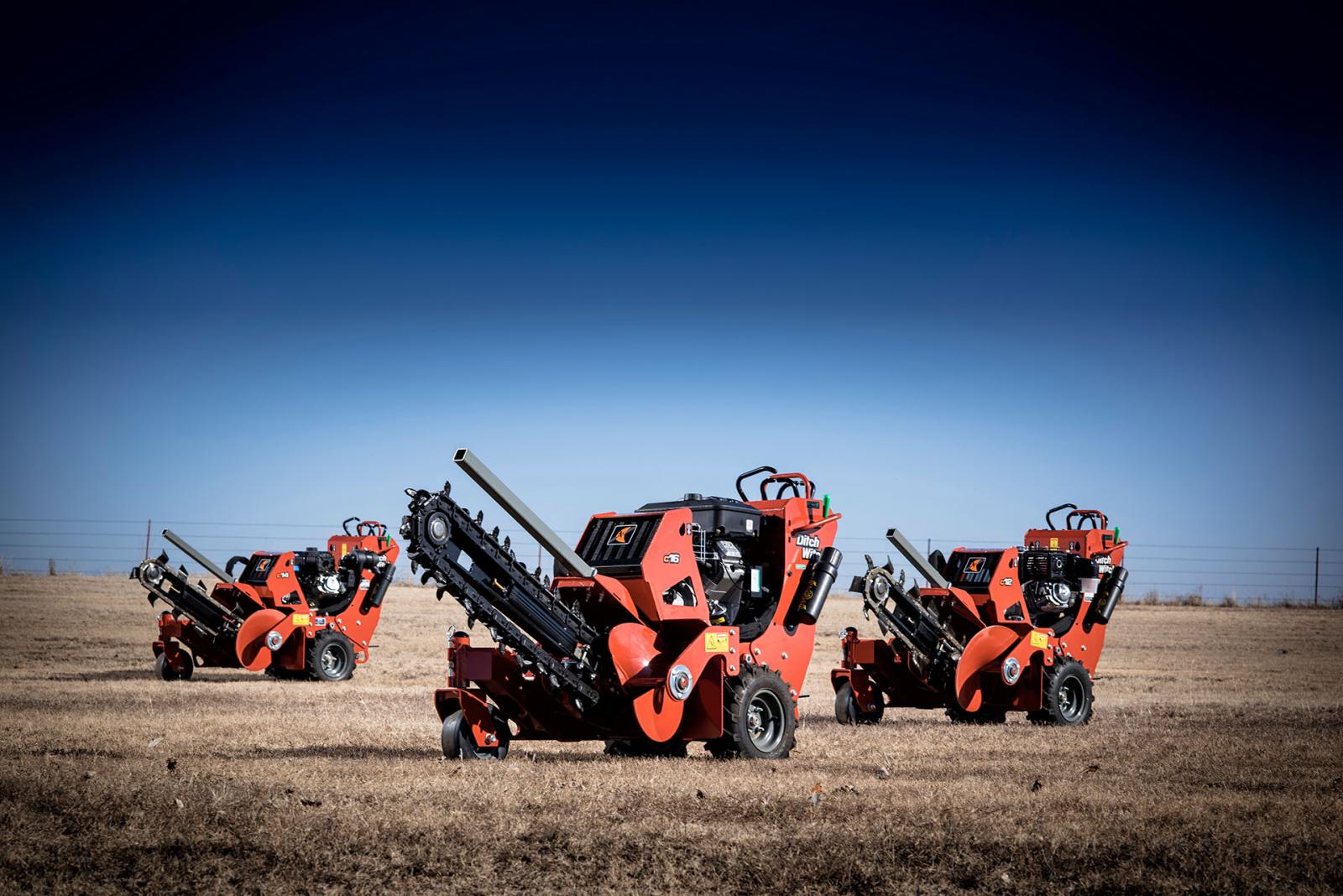

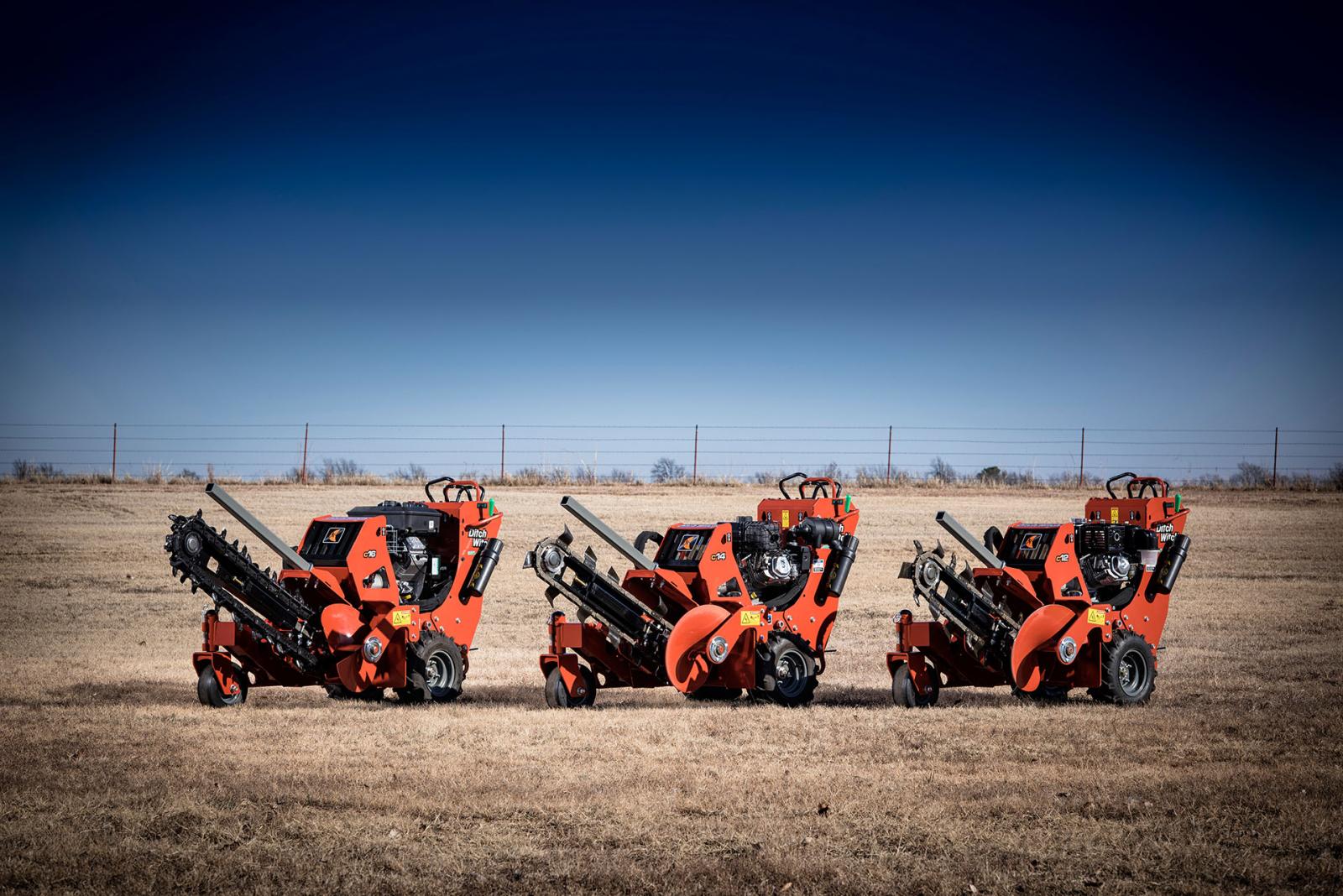

The Ditch Witch C14 Walk-Behind Trencher was designed with your rental business in mind. Only the C Series offers the balanced traction, better maneuverability and smoother operation of our patent-pending offset rear tire design and pivoting trail wheel. The reliable performance and simple operation will keep customers coming back. And the superior serviceability—a simple, open design for easy access and no daily grease points to worry about—will keep the C14 ready to rent to maximize your return on investment. The smart choice is easy to see: the C14 Walk-Behind Trencher.
