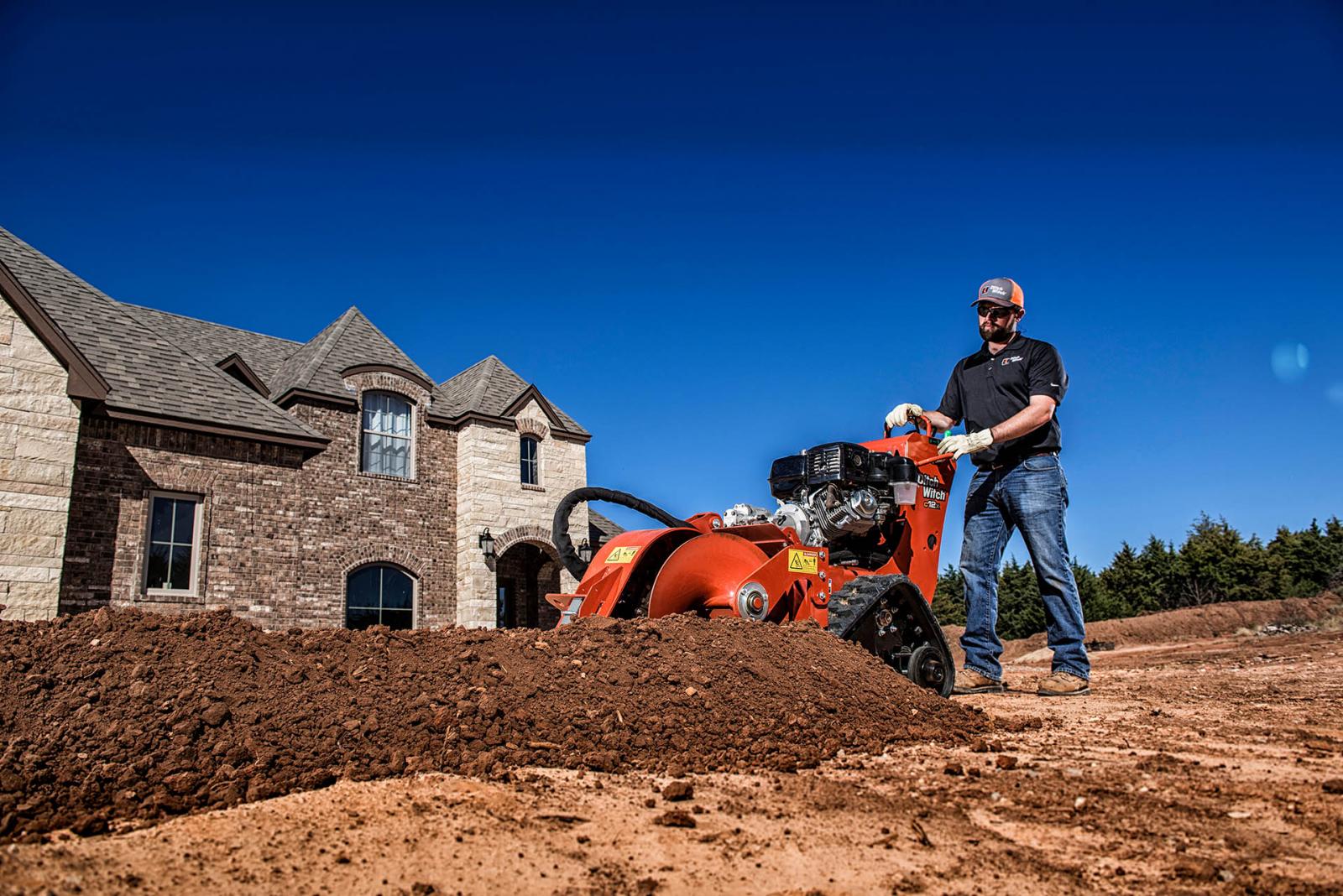

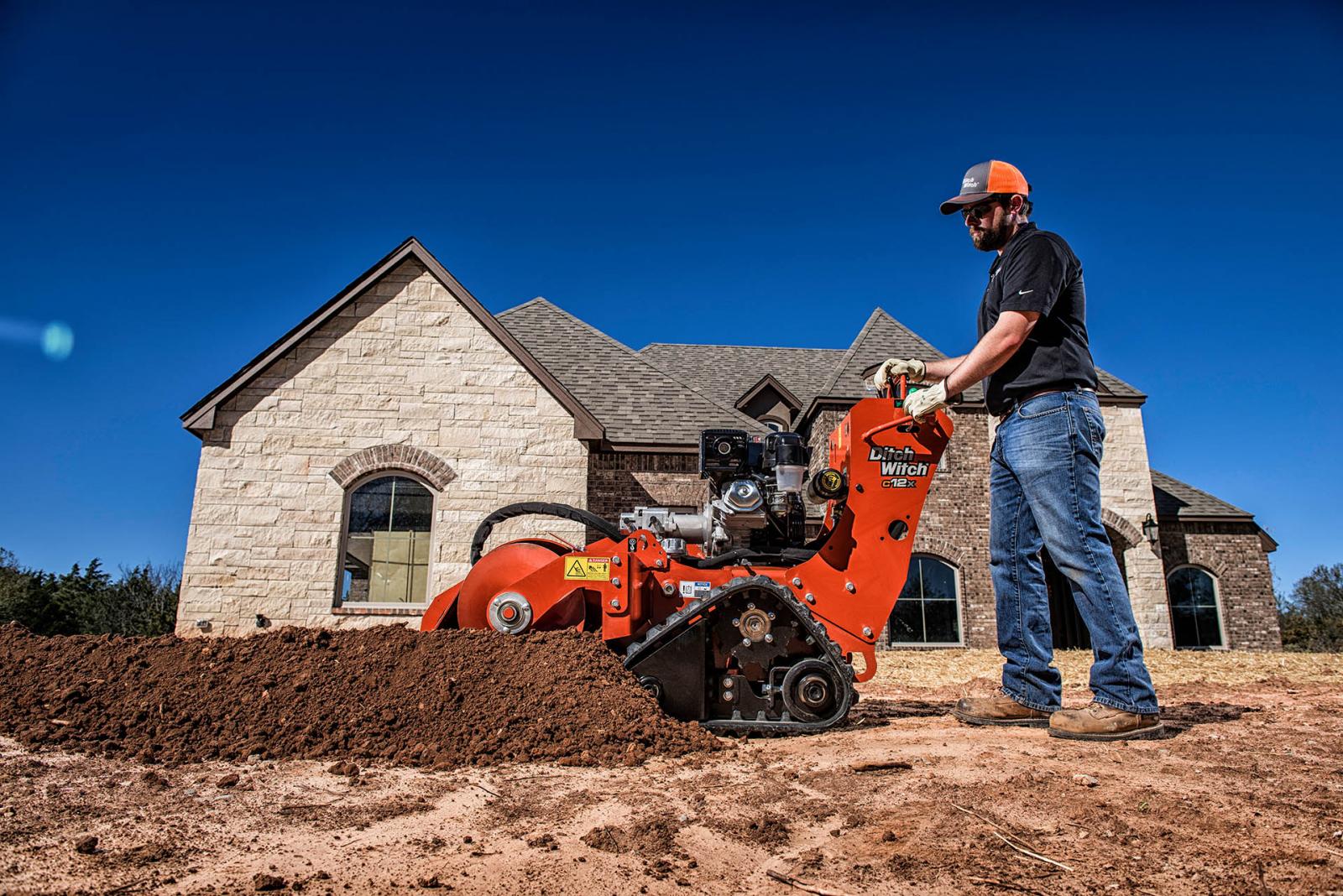

Ditch Witch C12X Walk-Behind Trencher
Maximize your performance and return on investment with the Ditch Witch C12X walk-behind trencher. With its 12-hp (8.9-kW) Honda® engine and 24-in trenching depth capability, the C12X delivers more power and efficiency in a compact design for tighter jobsites. Patented CX tracks offer greater maneuverability and traction, while its simple, open access points and no daily grease zerks provide no-hassle maintenance to keep you rental-ready.
Equipment Features
Featured Content
Our easy-to-operate backfill blade is much faster and less expensive than manually backfilling with shovels, increasing productivity and rental revenue.
Ditch Witch also offers the S3C Trailer, a single-axle design with a new rail system for easy loading and unloading of equipment of up to 3,500 lb (1,588 kg).
New, robust, straightforward pivot design is maintenance-free and increases unit uptime.
Greaseless sealed bearing design with construction-grade seals help increase machine longevity.
No daily grease points?a Ditch Witch exclusive?means less hassle and prep to keep your trenchers rental ready.
Standard outboard bearing support stabilizes the headshaft and auger, for reliable productivity trench after trench.
Simple, open design allows for quick, easy service access.
Power
Engine
Honda iGX 390
Fuel
Gasoline
Cooling
Air
Number of Cclinders
1
Displacement
23.7in3
389cm3
Bore
3.5in
88mm
Stroke
2.5in
64mm
Manufacturer’s net HP rating
11.7 hp
8.7 kW
Rated speed
3,600 rpm
Fuel consumption @ rated power
0.92 GPH
3.5 LPH
Tilt angle, max
20º
Battery
None (rope start)
Exclusive, patented CX track design puts more track on the ground for better traction while increasing stability for better production.
The shorter left track allows for a more compact piece of equipment than competitive designs, offering improved maneuverability in tighter spaces.
Dimensions
U.S.
Metric
Boom travel down
63º
Boom travel up
60º
Width
35.8 in
909 mm
Height
57 in
1450 mm
Tread
27 in
686 mm
Angle of departure
45º
CL to Right
18.6 in
472 mm
CL to Left
17.2 in
437 mm
Headshaft
13.7 in
348 mm
Length (up to)
94 in
2390 mm
Spoil discharge reach
14.1 in
358 mm
Angle of approach
52º
Noise Level
Operator
92 dBa per ISO 6394
Overall
101 dBa per ISO 6393
Equipped with a 12-hp (8.9-kW) Honda engine for maximum power in a compact unit.

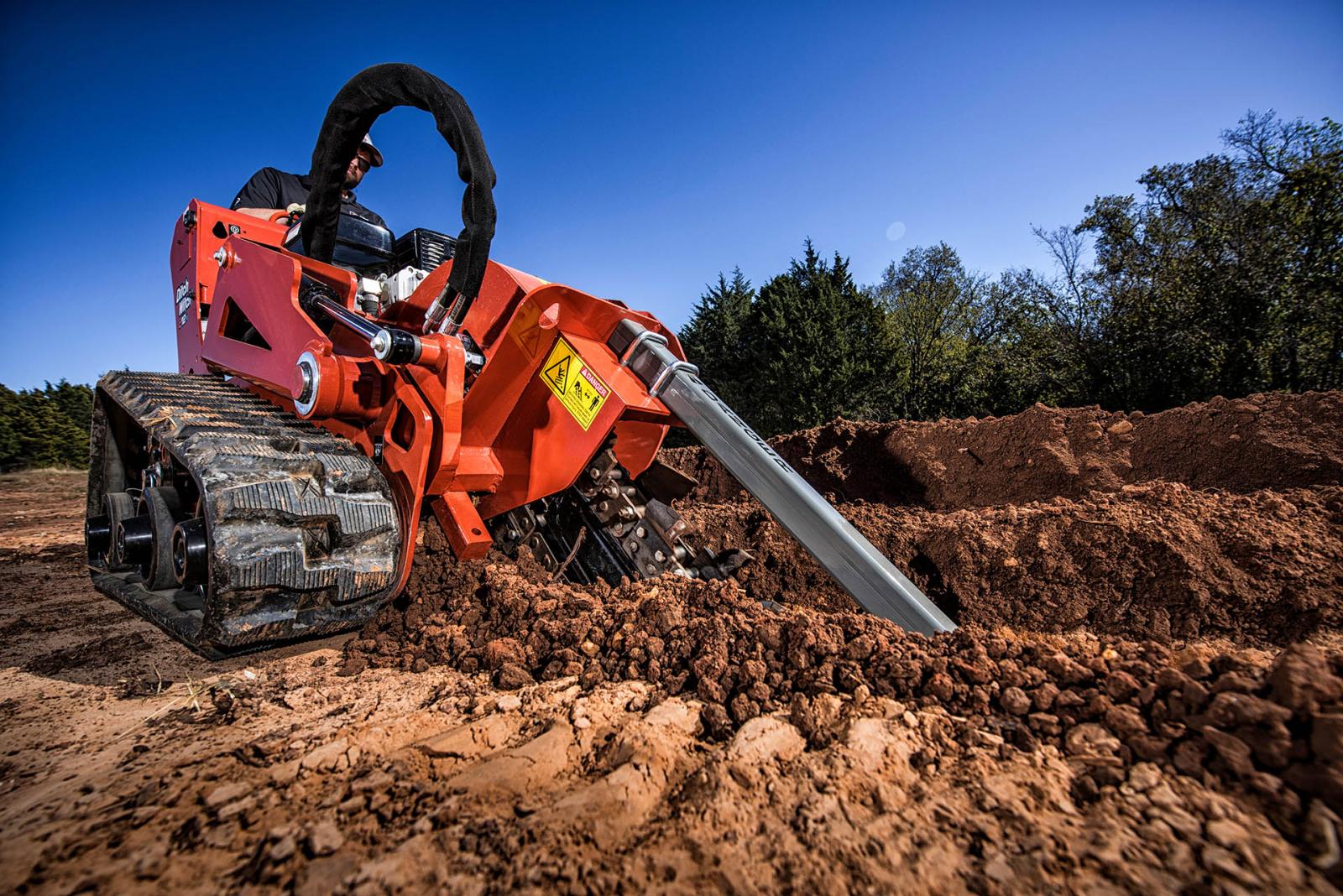

Up to 24” (609.6 mm) digging depth for efficient installation of pipe and cable.
A newly designed hydraulic system eliminates vertical shafts and belts, resulting in a simple, reliable unit with no linkages to adjust.
All CX Series walk-behind trenchers utilize the reliable, low-maintenance 35K digging systems specifically designed for Ditch Witch trenchers to optimize production.
Vibration Level
Operator’s hand
Less than 2.5 m/s2
Trench Size (max)
Depth
24in
609 mm
Width
4.3-6 in
110-150 mm
Ditch Witch equipment is backed by 170 dealer locations worldwide, each with genuine Ditch Witch parts in stock, plus factory-trained service and expert advice to help deliver a superior return on investment for your rental equipment.
Hydraulic System
Dual pump total capacity
7.5 GPM
28.4 l/min
Ground drive
Pressure
2,500 psi
172 bar
Capacity
1.5 GPM
5.7 l/min
Digging drive
Pressure
3,500 psi
241 bar
Capacity
6 GPM
22.7 l/min
Fluid Capacites
Hydraulic reservoir
11 gal
41.6 L
Hydrualic system
11.5 gal
43.5 L
Fuel
1.6 gal
6.05 L
Engine oil
1.2 qt
1.1 L
Operation
Travel speed, forward
120 ft/min
36.6 m/min
Travel speed, reverse
120 ft/min
36.6 m/min
Diggin chain speed (Std)
253 ft/min
77 m/min
Spoils handling
Mechanical, attached to and rotates with headshaft
Auger diameter
17in
432 mm
Trencher cleaner type
Mechainical
Trench cleaner size
4-6in
Operating weight (up to)
1360lb
617kg
All CX Series units are equipped with hydrostatic, skid steer-style steering for easier operation.

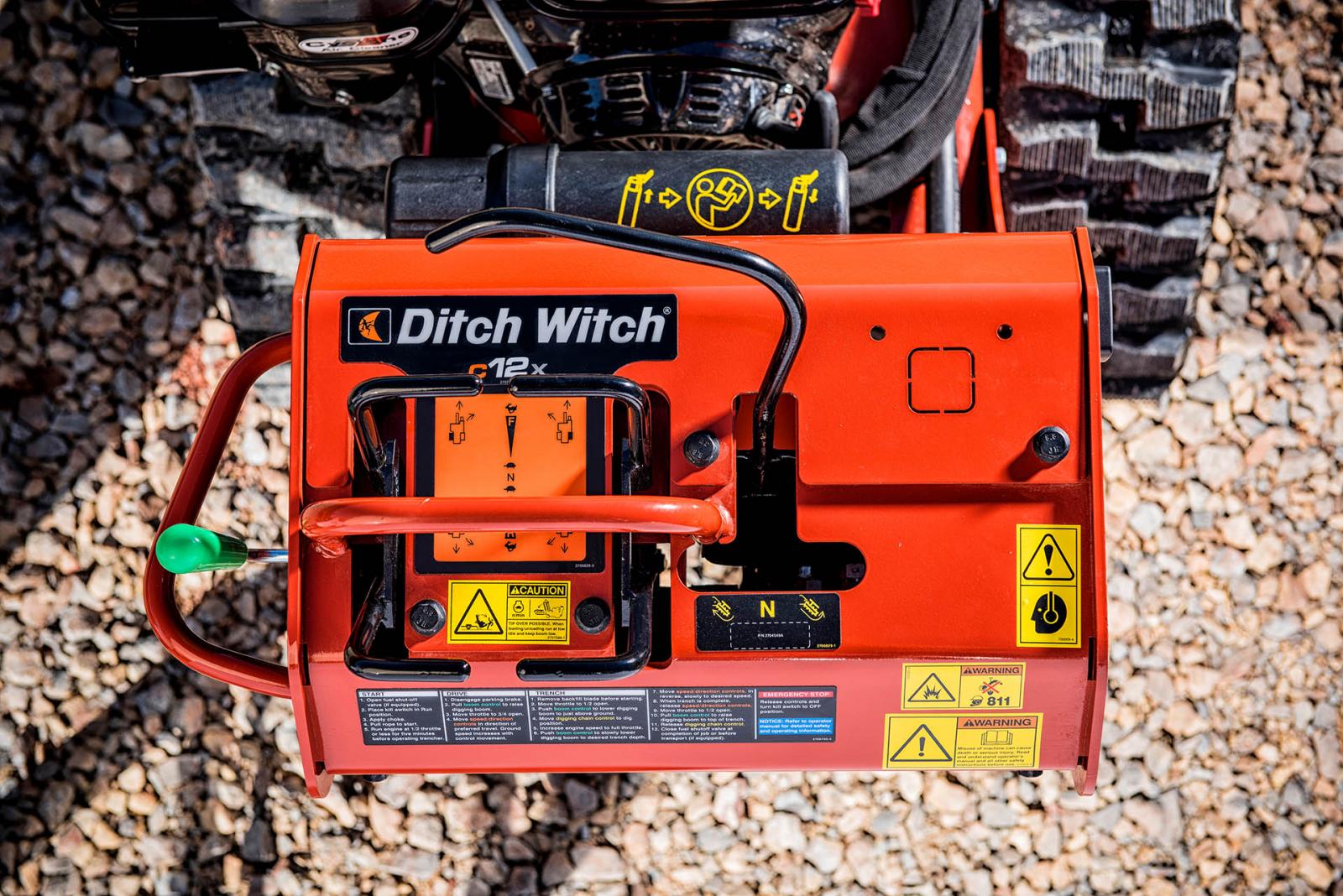

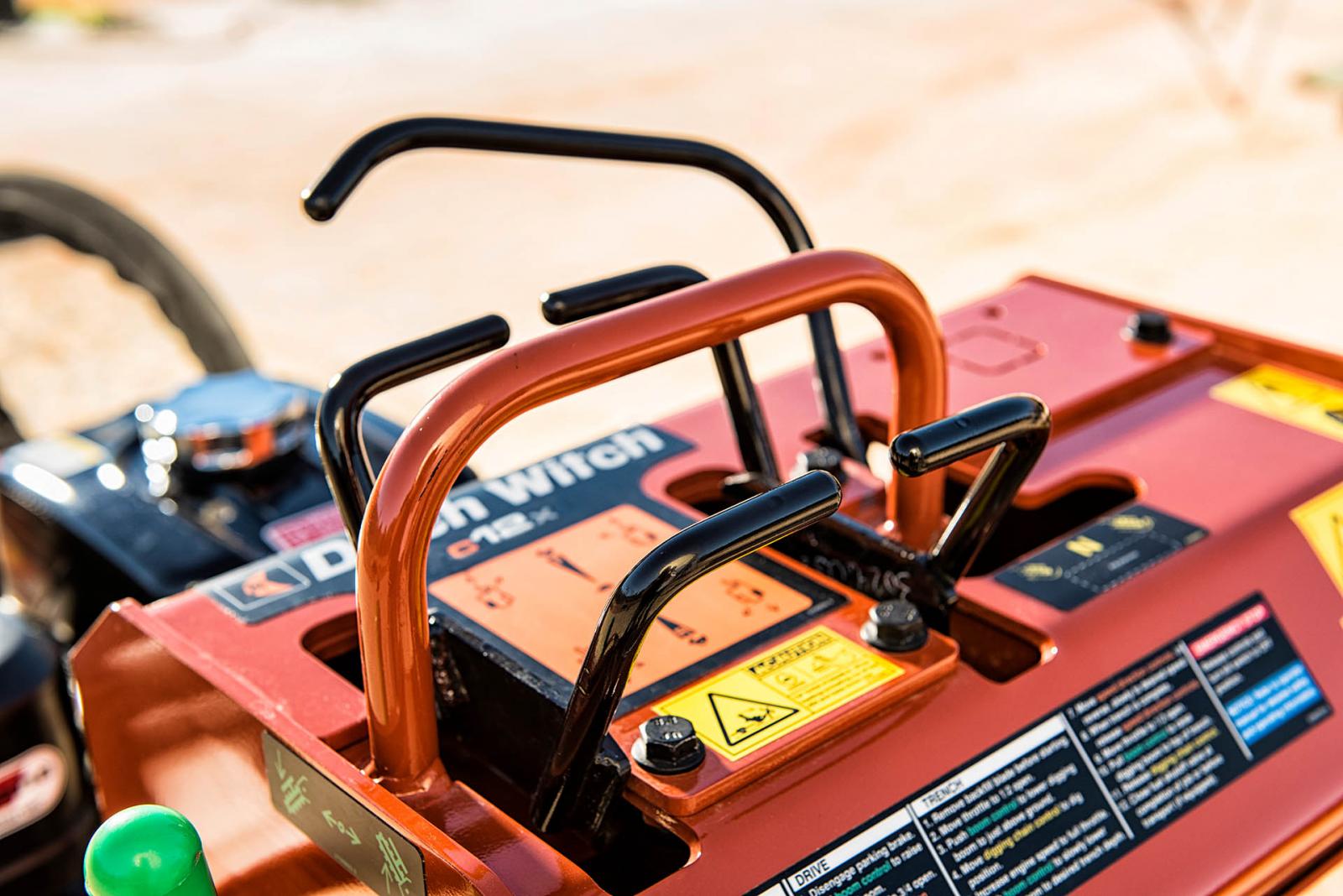

Redesigned easy-touch controls are smoother and lighter for less operator fatigue and increased machine responsiveness.
Power Train
Ground drive
Hydraulic, infinite variable from zero to maximum, speed and direction control
Digging chain drive
Hydraulic direct drive, one speed forward, reverse
Pump drive
Direct to engine
Track width
200 mm
Hydraulic
Direct drive
Digging chain
33/35 K
Ground pressure
3.3 psi
23 kPa
