With the new JT60 horizontal directional drill, you’ll recognize many of the features you’ve grown to appreciate: the proven, intuitive electronics and the rugged and reliable undercarriage, to name two. And in no time you’ll appreciate the JT60’s more powerful rotational torque—an increase of 4,000 ft·lb (5423 N·m) over its predecessor the JT4020—and 60,000 lb (267 kN) of thrust and pullback. It’s the more powerful combination you needed—the combination you asked for—to work more efficiently with less downtime.

  • + Expand All
  • - Close All
  • Power (Tier 3)



    Power (Tier 3)








    Engine
    Cummins® QSB6.7




    Fuel
    Diesel




    Cooling medium
    Liquid




    Injection
    Direct




    Aspiration
    Turbocharged & charge air cooled




    Number of cylinders
    6




    Displacement
    4.08 in3
    6.7 L



    Bore
    4.21 in
    107 mm



    Stroke
    4.88 in
    124 mm



    Manufacturer’s gross power rating
    190 hp
    142 kW



    Rated speed
    2,200 rpm




    Emissions compliance
    EPA Tier 3
    Stage IIIA

  • Noise level



    Noise level








    Operator sound pressure per ISO 6394
    < or = 81 dBA




    Exterior sound power per ISO 6394
    < or = 106 dBA


  • Drilling Fluid System



    Drilling Fluid System








    Pressure, max
    1,300 psi
    90 bar



    Flow, max
    150 gpm
    560 l/min

  • Power Pipe® HD (2.46-4)



    Power Pipe® HD (2.46-4)








    Length of dril pipe, nominal
    180 in
    4.57 m



    Diameter of drill pipe, tool joint end
    3.5 in
    89 mm



    Diameter of drill pipe
    3.06 in
    78 mm



    Bend radius, min
    170 ft
    52 m



    Weight of drill pipe, lined
    184 lb
    84 kg



    Weight of drill pipe and large box (28 pipe)
    6,096 lb
    2,765 kg



    Weight of drill pipe and small box (16 pipe)
    3,612 lb
    1,638 kg

  • Operation



    Operation

    U.S.
    Metric





    Spindle speed, max
    240 rpm




    Spindle speed (AT inner spindle), max
    250 rpm




    Spindle torque, max
    9,000 ft·lb
    12200 N·m



    Spindle torque (AT inner spindle), max
    2,000 ft·lb
    2700 N·m



    Carriage thrust travel speed
    100 fpm
    30.5 m/min



    Carriage pullback travel speed
    100 fpm
    30.5 m/min



    Thrust force
    60,000 lb
    267 kN



    Pullback force
    60,000 lb
    267 kN



    Bore diameter
    5 in
    127 mm



    Backreamer diameter
    Variable




    Ground travel speed





    Forward/reverse
    2.5 mph
    4 km/h

  • Power
    JT60
    Power

    60,000 lb (267 kN) thrust and pullback with 9,000 ft·lb (12,240 N·m) rotational torque—the powerful combination you need for outstanding productivity on big installation jobs.

    Choice of a 190-gross-hp (142-kW) Tier 3 or 200-gross-hp (149-kW) Tier 4 Cummins® diesel engine.

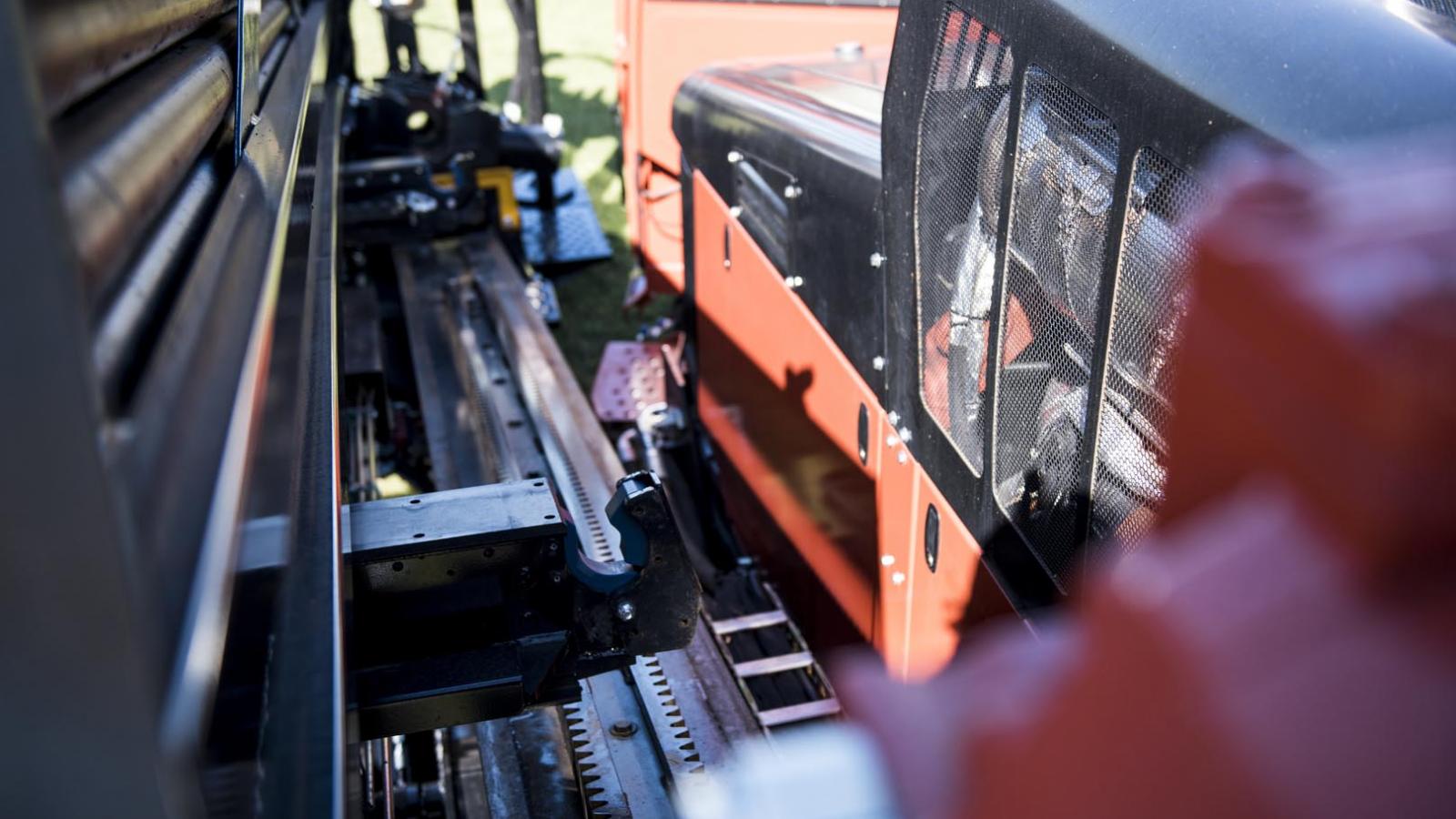

    Double rack-and-pinion thrust drive is field-proven and engineered to push/pull through long, tough bores.

    Ditch Witch drill pipes are manufactured to be stronger and more durable. The JT60 has three drill pipe options that you keep your drills and business moving forward.

  • Operator's Station
    JT60
    Operator's Station

    Open-top vise wrenches are angled toward the operator, lending an excellent view of the tool joint when making up and breaking out pipes.

    Dual-pivot drill frame allows for steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep; operator station stays level for maximized comfort.

    Fully enclosed, climate-controlled cab features instrument panel gauges positioned for visibility, with conveniently placed controls and an excellent view of the tool joint.

    Operator’s station features an ergonomic seat, color LCD engine display, higher visibility, and an intuitive joystick that controls all drilling functions.

  • Fluid Capacities



    Fluid Capacities








    Hydraulic reservoir
    36 gal
    136 L



    Fuel tank
    55 gal
    208 L



    Engine lubrication oil, w/ filter
    19 qt
    18 L



    Engine cooling system
    31 qt
    29 L



    Antifreeze tank
    16 gal
    60 L

  • Superior Support
    JT60
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, your Ditch Witch dealer has it all for you.

  • Battery (2 used)



    Battery (2 used)








    SAE reserve capacity rating
    195 min




    SAE cold crank rating @ 0°F (-18°C)
    950 amps


  • Vibration Level



    Vibration Level








    Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec2 respectively.





    Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.



  • Innovative Design
    JT60
    Innovative Design

    Proven, industry-leading pipe-loading system is simple, easy to use and is designed to increase productivity, saving you time, money and effort.

    Wireless operation system gives you remote control of ground drive, stabilizers, dual pivot, and stake down functionality allowing for more efficient jobsite setup.

    Increase uptime with a simple yet durable, customer-driven design.

    Dual rear independent stabilizers give you the confidence to set up on uneven terrain.

    Easy to service, with all daily maintenance points in one location that is easily accessed through removable doors.

  • Power (Tier 4)



    Power (Tier 4)








    Engine
    Cummins QSB6.7




    Fuel
    Diesel




    Cooling medium
    Liquid




    Injection
    Direct




    Aspiration
    Turbocharged & charge air cooled




    Number of cylinders
    6




    Displacement
    408 in3
    6.7 L



    Bore
    4.21 in
    107 mm



    Stroke
    4.88 in
    124 mm



    Manufacturer's gross power rating
    200 hp
    149 kW



    Rated speed
    2,200 rpm




    Emissions compliance
    EPA Tier 4
    EU Stage IV

  • Dimensions



    Dimensions








    Length
    331 in
    8.41 m



    Width
    87 in
    2.21 m



    Height
    101 in
    2.57 m



    Operating mass
    31,080 lb
    14,098 kg



    Entry angle
    10-16°




    Angle of approach
    18°




    Angle of departure
    13°


  • Productivity
    JT60
    Productivity

    Onboard, enclosed 150-gpm (560-l/min) fluid pump for productive drilling at greater distances; flow rate can be operated simultaneously with thrust/pullback and rotation.

    Simple, intuitive carve mode reduces operator fatigue; compatible with superior TriHawk® HD housings and bits for exceptional productivity.

    Heavy-duty, planetary-driven anchor system enables you to use full machine thrust in tough jobsite conditions, improving productivity.

    Two-speed thrust drive motors provide exceptional low-speed drilling control and the ability to reach the high speeds necessary for rapidly loading drill pipes.

    Open-top vise wrenches are angled toward the operator, lending an excellent view of the tool joint when making up and breaking out pipes.

    Wireline platform option available.

  • POWER PIPE FORGED (900#)



    POWER PIPE FORGED (900#)








    Length of dril pipe, nominal
    180 in
    4.57 m



    Diameter of drill pipe, tool joint end
    3.25 in
    83 mm



    Diameter of drill pipe
    2.88 in
    73 mm



    Bend radius, min
    169 ft
    52 m



    Weight of drill pipe
    180 lb
    82 kg



    Weight of drill pipe and large box (28 pipe)
    5,984 lb
    2,715 kg



    Weight of drill pipe and small box (16 pipe)
    3,548 lb
    1,610 kg
