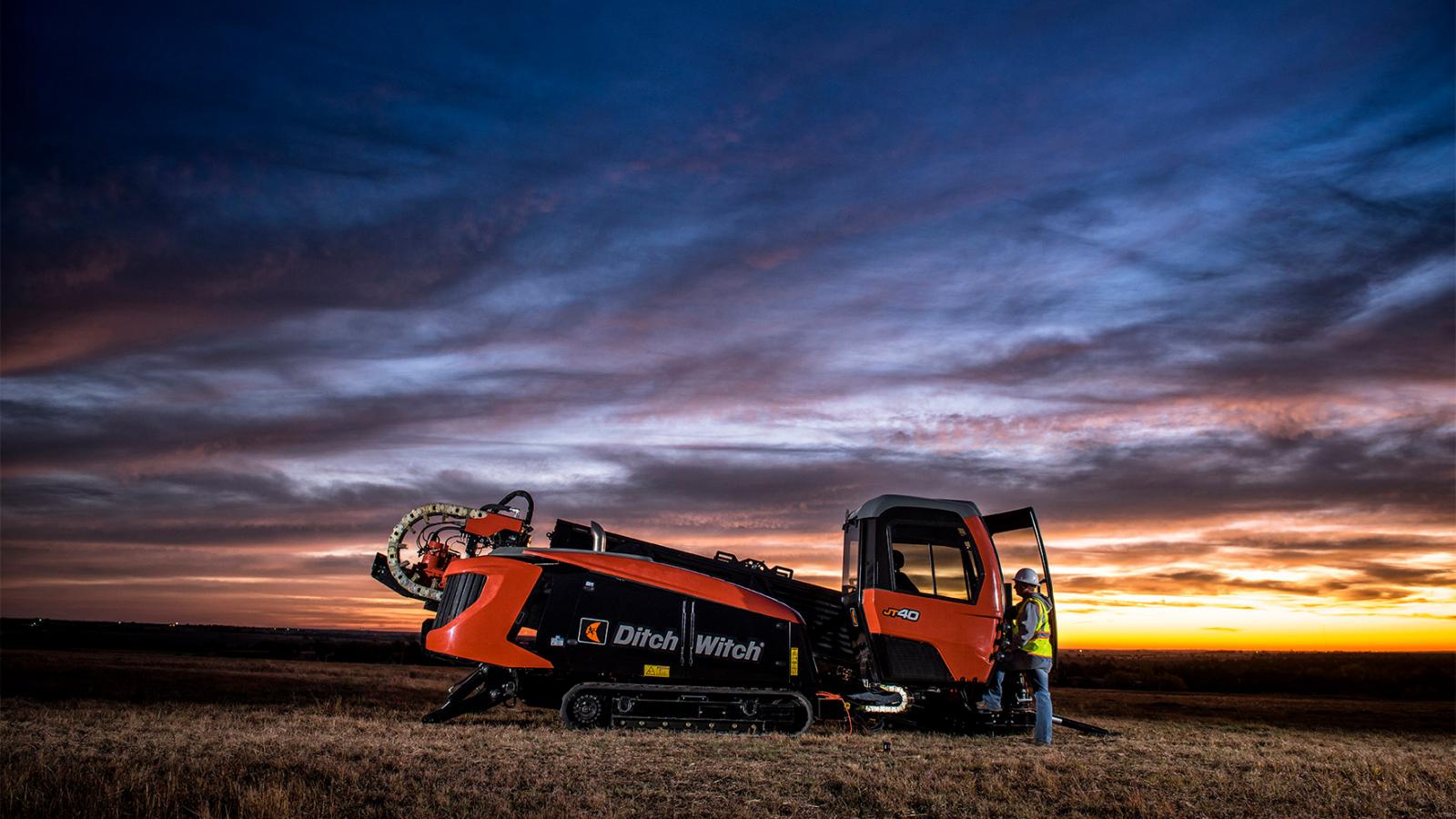

  • WEIGHT CONFIGURATION



    WEIGHT CONFIGURATION

    U.S.
    METRIC





    Cab option
    690 lb
    310 kg



    Standard anchor option
    750 lb
    340 kg



    HD anchor option
    1,290 lb
    590 kg



    Deduct Tier 3 engine option
    165 lb
    70 kg

  • SUPERIOR SUPPORT
    JT40
    SUPERIOR SUPPORT

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Enhanced Serviceability
    JT40
    Enhanced Serviceability

    The JT40 is equipped with swing-out, lift-off service doors for easy access for machine maintenance and serviceability.

    With no grease zerks and easy access to all service points in one spot, maintenance is simplified and total cost of ownership reduced.

    Integrated pipe lubricator makes it easier for operators to change out lubrication buckets for more efficient machine maintenance.

    The JT40 minimizes pipe-entry distance for increased support for the drill pipe as it enters the ground—this reduces wear on guide blocks and decreases the overall footprint on a job.

  • POWER (TIER 3)



    POWER (TIER 3)

    U.S.
    METRIC





    Engine
    Cummins QSB4.5




    Fuel
    Diesel




    Cooling medium
    Liquid




    Injection
    Direct




    Aspiration
    Turbocharged & charge air cooled




    Number of cylinders
    4




    Displacement
    275 in³
    4.5 L



    Bore
    4.21 in
    107 mm



    Stroke
    4.88 in
    124 mm



    Manufacturer’s gross power rating
    148 hp
    110 kW



    Rated speed
    2,300 rpm




    Emissions compliance
    EPA Tier 3
    Stage IIIA

  • Enhanced Control
    JT40
    Enhanced Control

    The JT40 is equipped with a modular stake down system with two available options, standard and heavy-duty, that can now be feathered for more precise control.

    The advanced remote control gives operators the ability to set up the rig outside of the cab allowing more precise positioning of the JT40 on the job.

    The controller includes multi-mode ground drive; dual, independent stabilizers, stake down, cab traverse, and dual pivot.

  • DIMENSIONS



    DIMENSIONS

    U.S.
    METRIC





    Length
    290 in
    7.37 m



    Width, w/open station
    89 in
    2.26 m



    Width, w/cab
    93 in
    2.36 in



    Height
    97 in
    2.46 m



    Operating mass
    20,500 lb
    9300 kg



    Entry angle
    20-29%




    Angle of approach
    17°




    Angle of departure
    17°


  • DRILLING FLUID SYSTEM



    DRILLING FLUID SYSTEM

    U.S.
    METRIC





    Pressure, max
    1,000 psi
    69 bar



    Flow, max
    70 gpm
    265 l/min

  • NOISE LEVEL



    NOISE LEVEL








    Operator sound pressure per ISO 6396
    < or = 85 dBA




    Operator sound pressure per ISO 6396, w/cab
    < or = 73 dBA




    Exterior sound power per ISO 6395
    < or = 103 dBA




    Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.



  • OPERATION



    OPERATION

    U.S.
    METRIC





    Spindle speed, max
    225 rpm




    Spindle torque, max
    5,500 ft·lb
    7460 N·m



    Carriage thrust travel speed
    180 fpm
    55 m/min



    Carriage pullback travel speed
    180 fpm
    55 m/min



    Thrust force
    40,000 lb
    178 kN



    Pullback force
    40,000 lb
    178 kN



    Bore diameter
    4.5 in
    114 mm



    Backreamer diameter
    Soil dependent




    Ground travel speed





    Forward/reverse
    3.0 mph
    4.8 km/h

  • FLUID CAPACITIES



    FLUID CAPACITIES

    U.S.
    METRIC





    Hydraulic reservoir
    17 gal
    64 L



    Fuel tank
    56 gal
    212 L



    Engine lubrication oil, w/filter
    13.7 qt
    13 L



    Engine cooling system
    24 qt
    22.7 L



    Antifreeze tank
    8 gal
    30 L



    Diesel exhaust fluid tank
    3.6 gal
    13.6 L

  • POWER (TIER 4)



    POWER (TIER 4)

    U.S.
    METRIC





    Engine
    Cummins QSB4.5




    Fuel
    Diesel




    Cooling medium
    Liquid




    Injection
    Direct




    Aspiration
    Turbocharged & charge air cooled




    Number of cylinders
    4




    Displacement
    275 in³
    4.5 L



    Bore
    4.21 in
    107 mm



    Stroke
    4.88 in
    124 mm



    Manufacturer's gross power rating
    160 hp
    119 kW



    Rated speed
    2,300 rpm




    Emissions compliance
    EPA Tier 4
    EU Stage IV

  • POWER PIPE® HD



    POWER PIPE® HD

    U.S.
    METRIC





    Length of dril pipe, nominal
    180 in
    4.57 m



    Diameter of drill pipe, tool joint end
    3.13 in
    80 mm



    Diameter of drill pipe
    2.81 in
    71 mm



    Bend radius, min
    146 ft
    45 m



    Weight of drill pipe, lined
    150 lb
    68 kg



    Weight of drill pipe and large box (40 pipe)
    7,140 lb
    3240 kg



    Weight of drill pipe and small box (20 pipe)
    3,797 lb
    1720 kg

  • BATTERY



    BATTERY








    SAE reserve capacity rating
    195 min




    SAE cold crank rating @ 0°F (-18°C)
    950 amps


  • Optimized Operator Interface
    JT40
    Optimized Operator Interface

    For improved performance, efficiency and productivity, the advanced operator displays are optimized with the data operators need most.

    Equipped with two seven-inch LED screens for better visibility into all machine functions, diagnostics, and bore tracking information.

    A real-time carriage-position indicator provides operators insight to the exact carriage position for increased productivity and intuitive operation.

    The machine is equipped with radial operator control (ROC)—the multifunctional controller is highlighted on the machine display when activated for improved control efficiency.

  • Boosted Productivity
    JT40
    Boosted Productivity

    The JT40 holds up to 600 feet of drill pipe onboard, allowing for longer bores on one job, reduced cycle times and increased return on investment.

    Equipped with a 70-gpm, 1,100-psi mud pump, the JT40 has increased fluid course from the mud pump to the swivel, for more downhole flow capabilities.

    The machine includes a patent pending reversible pipe box for added jobsite versatility.

    Patent-pending open sided vise wrenches on the JT40 are rotated toward the operator enhancing visibility.

    The JT40 features a unique add-a-pipe design, which allows operators to manually insert additional sticks of drill pipe when pipe runs out, improving overall productivity.

  • Operator's Station
    JT40
    Operator's Station

    The machine provides industry-leading visibility with the best access to all critical vision points, including ground entrance, wrenches, shuttle-retract location and rear connection.

    The JT40 features the choice of a climate-controlled cab with tinted glass or an open operator’s station to meet each customer’s individual needs.

    The ergonomic station was designed specifically for an HDD operator, featuring a heated seat with adjustable suspension and increased legroom to keep drillers comfortable during long hours on a job.

    The operator’s platform is equipped with telescoping capability providing the optimal drilling view for improved jobsite operations.

  • HIWS1 PIPE



    HIWS1 PIPE

    U.S.
    METRIC





    Length of dril pipe, nominal
    180 in
    4.57 m



    Diameter of drill pipe, tool joint end
    3.10 in
    79 mm



    Diameter of drill pipe
    2.63 in
    67 mm



    Bend radius, min
    145 ft
    44 m



    Weight of drill pipe
    165 lb
    75 kg



    Weight of drill pipe and large box (35 pipe)
    6,915 lb
    3140 kg



    Weight of drill pipe and small box (15 pipe)
    3,287 lb
    1490 kg

  • Best-in-Class Power
    JT40
    Best-in-Class Power

    Equipped with a 160-gross-hp, Tier 4 Cummins® diesel engine, the JT40 provides 14 percent more horsepower than competitive models in its class. A Tier 3 engine option is available for less regulated countries.

    With 40,000 pounds of thrust and pullback, the JT40 provides 30 percent more thrust in a more compact unit than competitive models in its class.

    The machine offers an innovative two-speed, rotational drive system, producing 5,500 ft·lb of torque for greater efficiency and uptime.

    The newly updated hydraulic platform utilizes the Ditch Witch-proven technology to provide the most efficient power downhole.
