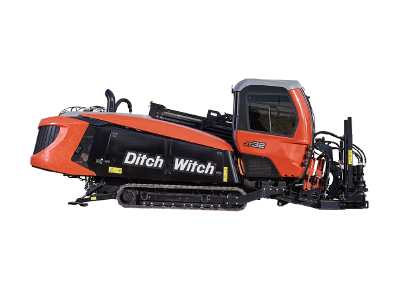

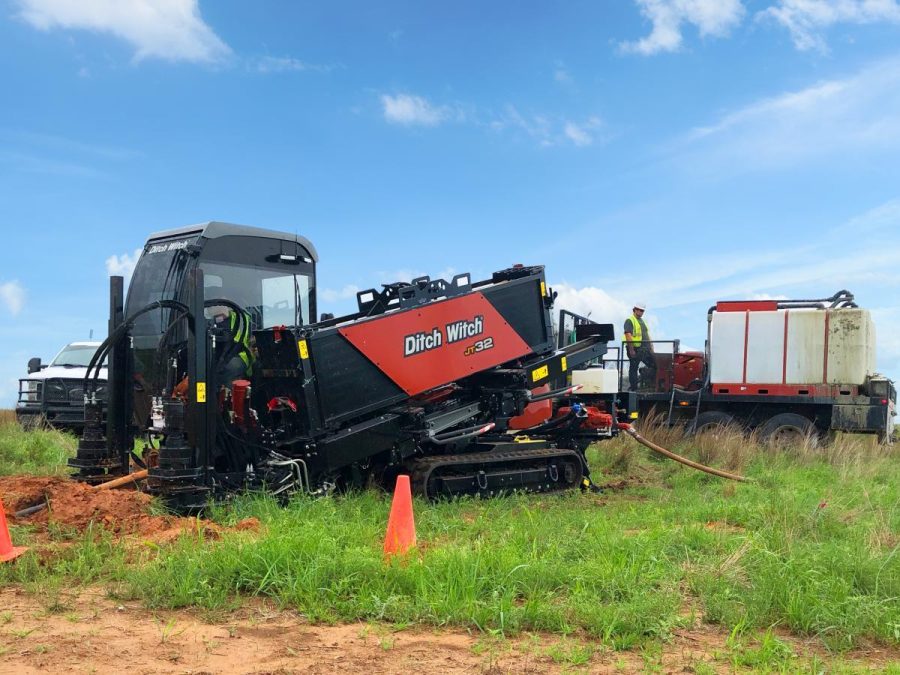

  • Battery (2 Used)

    SAE reserve capacity rating - 195 min

    SAE cold crank rating @ 0°F (-18°C) - 950 amps

  • Power Pipe Forged HD

    Length of drill pipe * nominal - 118.1 in

    Diameter of drill pipe tool joint end - 2.75 in

    Diameter of drill pipe - 2.38 in

    Min. bend radius - 123 ft

    Weight of drill pipe - 76 lb

    Weight of lined drill pipe & large box (60 pipe) - 5,380 lb

    Weight of lined drill pipe & small box (25 pipe) - 2,599 lb

  • Operation

    Carriage thrust and pullback travel speed - 190 fpm

    Thrust force and Pullback force - 32,000 lb

    Ground travel speed (Forward and Reverse) - 2.8 mph

    Spindle speed, max - 220 rpm

    Spindle torque, max - 4,200 ft·lbs

  • Fluid Capacities

    Fuel tank, Tier 4 - 54 gal

    Hydraulic reservoir - 17 gal

  • Dimensions

    Length - 256.5 in

    Width w/cab - 89.3 in

    Transport height w/cab - 97 in

    Weight w/cab - 19,220 lb

    Ground clearance - 5.7 in

    Entry angle, max - 9°-20°; Entry angle, tracks on ground - 9°-17°

  • Forged HDX

    Length - 118.1 in

    Joint diameter - 2.63 in

    Pipe diameter - 2.38 in

    Bend radius, min - 123 ft

    Weight of drill pipe, lined - 74 lb

    Weight w/drill pipe & large box (60 pipe) - 5,260 lb

    Weight w/drill pipe & small box (25 pipe) - 2,549 lb

  • Power Pipe® HD

    Length - 118.1 in

    Joint diameter - 2.75 in

    Pipe diameter - 2.38 in

    Bend radius - 123 ft

    Weight of drill pipe, lined - 84 lb

    Weight of lined drill pipe & large box (60 pipe) - 5,860 lb

    Weight of lined drill pipe & small box (25 pipe) - 2,799 lb

  • Power

    Engine - Cummins® 4.5; Fuel - Diesel

    Cooling medium - Liquid; Injection - Direct

    Aspiration - Turbocharged & charge air cooled

    Number of cylinders - 4; Displacement - 275 in³

    Bore - 4.21 in; Stroke - 4.88 in

    Manufacturer's gross power rating - 155 hp

    Rated speed Tier 3/Tier 4 - 2,200 rpm

    Emissions compliance - EPA Tier 4

  • Noise Level

    Operator sound pressure per ISO 6396 (w/ Cab) - < or = 72 dBA

    Operator sound pressure per ISO 6396 (open station) - < or = 78 dBA

    Exterior sound power per ISO 6395 - < or = 96 dBA

  • Drilling Fluid System (Onboard)

    Pressure, max - 1,000 psi

    Flow, max - 70 gpm
