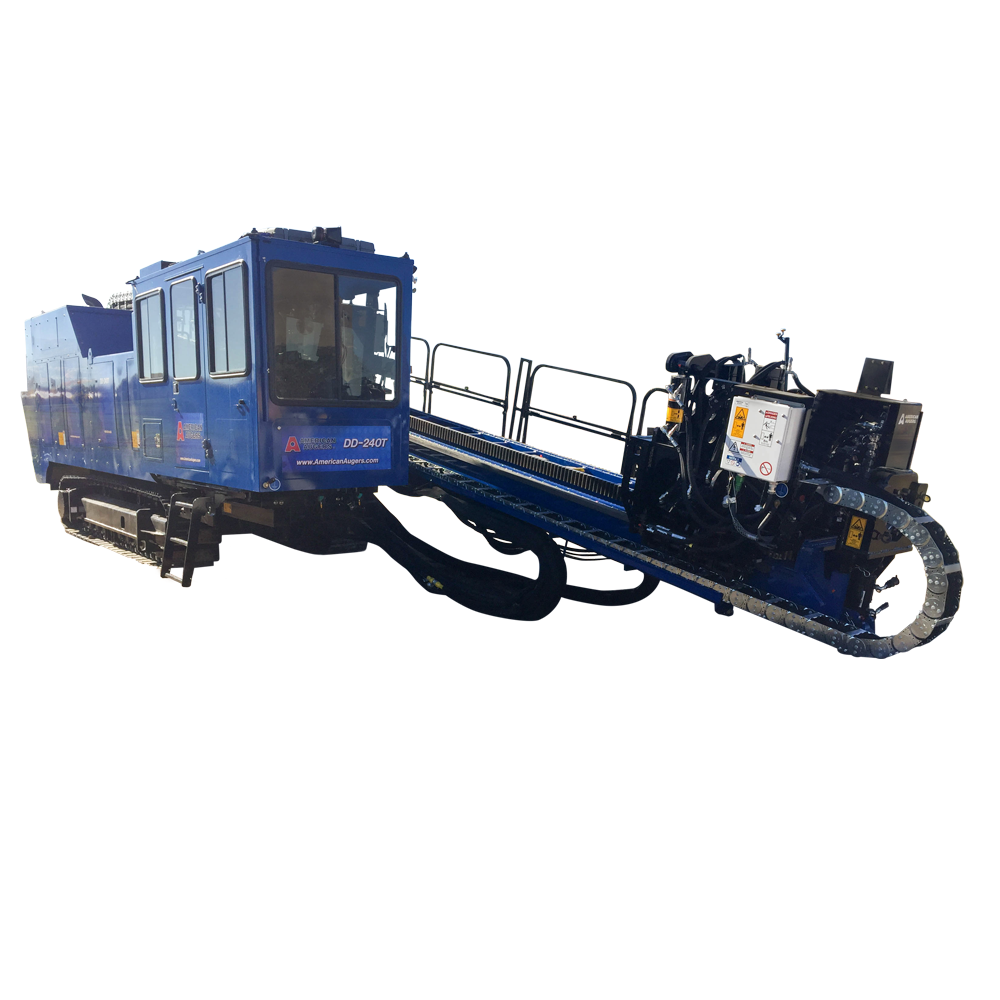

  • Dimensions (can vary)
    • Length52.5 ft. (19.05 m)
    • Width8.167 ft. (2.5 m) w/ pipe loader option 100.25 in. (2.54 m) w/ full walkway option
    • Height11.5 ft. (3.5 m)
  • Weights (can vary)
    • Range 2, walkway, 2 man cabin 80,520 transport weight (no foot)
    • Range 2, Pipe loader, 2 man cabin81,510 transport weight (no foot)
  • Drill Rig
    • Drill Angle10° - 18°, wireless tramming and setup
    • Drill Pipe20 ft. or Range II 4-1/2 in. and 5-1/2 in. API pipe
    • Travel System

      Self Propelled on Undercarriage Steel Track Crawler Assembly

      Maximum Travel Speed: 1.4 mph (2.25 kph)

  • Carriage System
    • Maximum Thrust/Pullback240,000 lbs. (108 Tonnes)
    • Carriage SystemRack & Pinion, (4) Pinion Drive with Adjustable Force Limiter
    • Maximum Carriage Speed150 ft. (46 m)/minute
    • Carriage Motors(4) Hydraulic 160cc, Radial Piston/Dual Displacement
    • Carriage Brakes(2) Spring Applied/Hydraulic Release
    • Carriage Gearbox(4) Planetary Drives
  • Power Train
    • EngineMTU 6R1300 Tier 4
    • Rating523 HP (390 kW)
    • Fuel Capacity178 U.S. Gallons (674 L)
    • Hydraulic Capacity120 U.S. Gallons (454 L)
    • Hydraulic FilterHigh-Pressure Filtration Return to 6 Micron ABS
  • Safety
      • Es!Lok – Exit Side Lockout System with 5,280 ft. (1,609 m) Range
      • ZAPALERT – Electrical Detection Device
      • Engine Shutdown Switch at the Operators Console, Shutdown at Engine Controller, (8) hinged handrails for full-length thrust frame walkway
  • Wrench
    • Wrench StyleTriple Jaw with 10 in. (245 mm) Separation
    • Maximum Breakout Torque80,000 ft-lbs. (108,465 Nm)
    • Clamp/Grip Range4-1/2 in. to 8-1/2 in. (114 – 216 mm) OD
  • Rotary Drive
    • Rotary System(2) Pinion & Gear Drive with Infinitely Variable Torque
    • Maximum Rotary Torque43,900 ft-lbs. (59,520 Nm) @ 37 RPM
    • Maximum Rotary Speed150 RPM
    • Rotary Motors(2) Hydraulic, 486cc, Axial Piston, Variable Displacement
    • Rotary Brakes(1) Spring Applied/Hydraulic Release
    • Fluid Course3 in. (76 mm)
    • Mud SwivelRear Mounted, 4 N.P.T.L.H x 3
    • Slip Spindle5.5 in. (13.97 mm) API-IF Pin
    • Other FeaturesDigital Tachometer, Adjustable Torque Limiter, Wiggle Steer®
