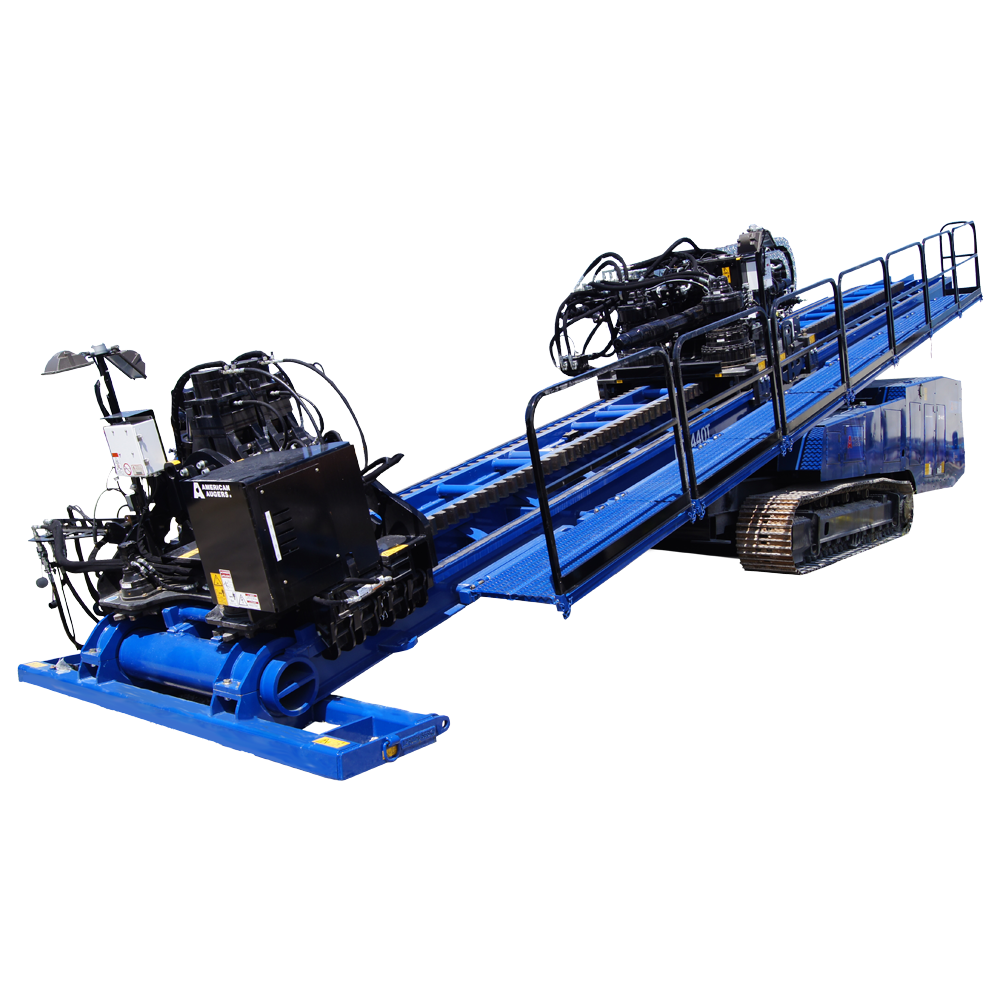

  • Safety
    • Es!Lok – Exit Side Lockout System with 1 mile (1.6 km) Range
    • Wiggle Steer®
    • Free standing operator's console with pressure gauges with 17" Touch Screen Display
    • Safety system package with ZapAlert
    • operator's manual and other unit support materials
  • Wrench
    • Wrench TravelWrench has full-length thrust frame travel with hose carrier
    • Maximum Breakout Torque230,000 ft-lbs. (311,839 Nm)
    • Maximum Makeup Torque152,000 ft-lbs. (206,085 Nm)
    • Clamp/Grip Range3 in. – 11 3/4 in. (76 – 298 mm) OD
    • Wrench Assembly Motor(2) Hydraulic LSHT, 18.3 CIR
    • Wrench Assembly Brake(1) Spring Applied/Hydraulic Release
    • Wrench Gearbox(2) SGL
    • Hydraulic Wrench Cylinder(6) 8 in. Bore x 3 in. Stroke (203 - 76.2 mm)(6) 8 in. Bore x 3 in. Stroke (203 - 76.2 mm)
  • Transport Weights
    • Total Weight98,060 lbs. (44,479 kg)
    • Total Weight w/o Wrench90,260 lbs. (40,941 kg) – Wrench is Removable for Lighter Transport
  • Transport Dimensions
    • Transport Dimensions50 ft. 9in. (15.47 m)
    • Width8 ft. 2 in. (2.51 m)
    • Height11 ft. 10 in. (3.61 m)
  • Carriage System
    • Maximum Thrust/Pullback440,000 lbs. (200 Tonnes)
    • Carriage System440,000 lbs. (200 Tonnes)
    • Maximum Carriage Speed95 ft. (29 m)/minute
    • Carriage Motors(2) Hydraulic 1017 cc, Variable Displacement
    • Carriage Gearbox(2) Planetary Drives
  • Wiggle Steer®
    • The Wiggle Steer® System provides the operator of a directional drill the means to rotate the drill pipe and subsequently the cutting head on the drill string back and forth over a predetermined range. This back and forth motion would cause the hole made by the cutting head to be more open in a particular direction and therefore facilitate steering of the drilling pipe in that direction underground.

  • Power Train
    • EngineCummins QSX15 Tier 4 final or Tier 3 (depending on country of purchase) Diesel
    • Rating600 HP (447 kW)
    • Fuel Capacity160 U.S. Gallons (605 L)
    • Hydraulic Capacity200 U.S. Gallons (757 L)
    • Battery(2) Deka 908DMF 12 V, 1450 CCA
  • Drill Rig
    • Drill Angle10° - 18°
    • Drill PipeRange II – 34 ft. (10.4 m)
  • Quiet-Pak®
    • Noise reducing acoustical foam in the engine enclosure.

  • Rotary Drive
    • Rotary System(3) Pinion & Gear Drive with Infinitely Variable Torque
    • Maximum Rotary Torque60,000 ft-lbs. (80,000 Nm) @ 0 – 25 RPM
    • Maximum Rotary Speed97 RPM
    • Rotary Motors(3) 160cc Hydraulic Axial Piston/Variable Displacement
    • Rotary Brakes(2) Spring Applied/Hydraulic Release
    • Fluid Course3.5 in. (88.9 mm)
    • Mud Flow RatePermits up to 825 U.S. Gallons /minute
    • Maximum Mud Pressure1,500 psi (103.4 bar)
    • Mud SwivelRear Mounted, 5 in. (127 mm) IFLH Pin
