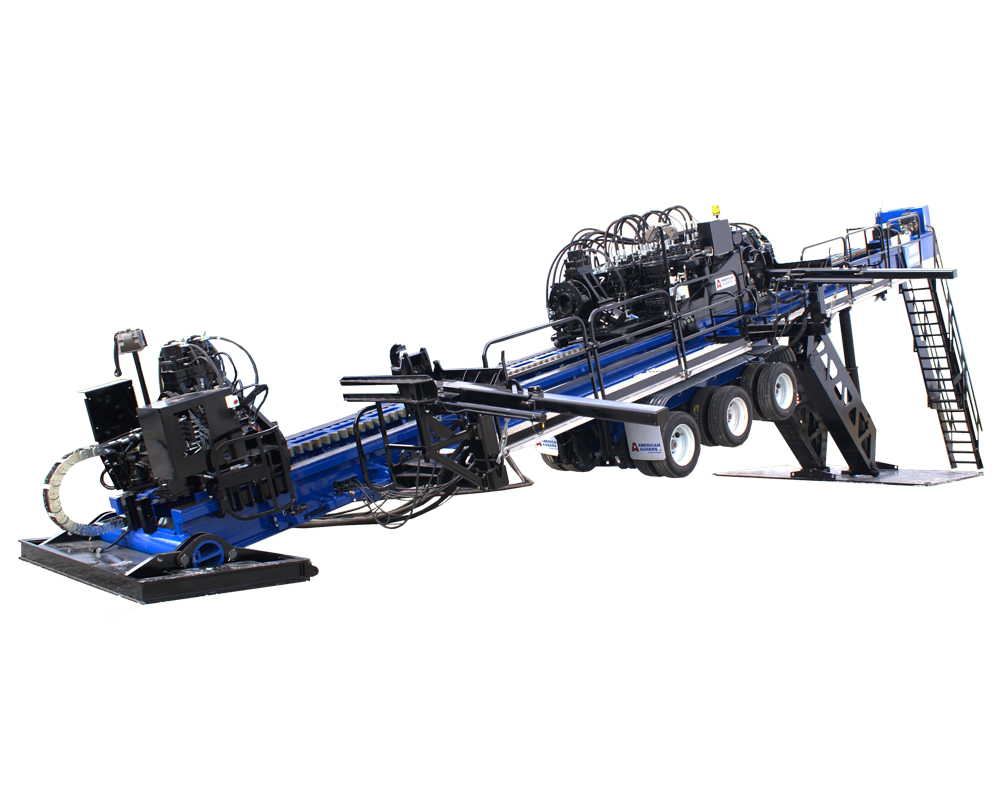

American Augers DD-1100RS
All Directional Drills
FEATURES
For those contractors who want to play with the big toys
- The industry first in rapid setup technology
- Up to 1,500 horsepower for the bores with big pipe welded together just waiting to be installed
- Excellent speed without sacrificing power
- Over 200,000 ft*lbs of breakout torque for those tough pipe joints
- 4” drill fluid course accommodates up to 1,000 gpm of drill fluid for maximum fluid power
Equipment Features
Featured Content
- Rotary System(4) Pinion and Gear Drive with Infinitely Variable Torque
- Maximum Rotary Torque100,000 ft-lbs. (135,600 Nm) @ 0 – 31 RPM
- Minimum Rotary Torque40,000 ft-lbs. (54,000 Nm) @ 0 – 75 RPM
- Maximum Rotary Speed75 RPM
- Rotary Motors(4) 160cc, Axial Piston, Variable Displacement
- Rotary Brakes(4) Spring Applied, Hydraulic Release
- Fluid Course4 in. (102 mm)
- Mud Flow RatePermits up to 1,000 U.S. Gallons (3,785 L)/per minute
- Maximum Mud Pressure1,500 psi (103 bar)
- Mud Shutoff Cylinder2 in. Bore x 12 in. Stroke (51 – 305 mm)
- Mud Blow Down Cylinder1 1/16 in. Bore x 4 in. Stroke (27 – 102 mm)
- Hydraulic Pump(2) Closed Loop-Piston
- Auxiliary Pump(1) Pressure Compensated-Piston
- Slip Spindle8 5/8 in. (219 mm)
- Length19 ft. 8 in. (5.99 m)
- Width8 ft. (2.43 m)
- Height9 ft. 5 in. (2.88 m)
-
- Simultaneously run both power units
- Permits one power unit to run while powering through the unused power unit
- Allows one power unit to run, but keeps the unused power unit isolated
- Excercise the ability to have one power unit running, but have the unused power unit removed
- Unit maintains full power with single engine, but system runs with half rotational RPM and half carriage drive speed
-
- Es!Lok – Exit Side Lockout System with 1 mile (1.6 m) Range
- ZAPALERT – Electrical Detection Device
- Run on One Technology system (ROOTS)
- Freestanding operator’s console with pressure gauges
- Operator’s manual and other unit support materials
- Maximum Thrust/Pullback1,100,000 lbs. (500 Tonnes)
- Carriage SystemRack & Pinion, (6) Pinion and Gear with Adjustable Force Limiter
- Maximum Carriage Speed105 ft. (32 m)/minute
- Carriage Motors(6) 1017 cc Variable Displacement
- Carriage Gearbox(6) Planetary Drives
- Hydraulic Pump(2) Closed Loop-Piston
- Wrench TravelWrench can Travel the Full Length of the Thrust Frame
- Maximum Breakout Torque220,000 ft-lbs. (298,000 Nm)
- Maximum Makeup Torque150,000 ft-lbs. (203,000 Nm)
- Clamp/Grip Range3.5 in.– 10.5 in. (89 – 267 mm) OD
- Wrench Motor(2) Hydraulic, LSHT, 12.5 CIR
- Wrench Brake(1) Spring Applied, Hydraulic Release
- EngineCaterpillar C-18 Tier 4 Final or Tier 3 Diesel (depending on country of purchase)
- Rating755 HP (570 kW)
- Fuel Capacity650 U.S. Gallons (2,460 L)
- Hydraulic Capacity220 U.S. Gallons (833 L)
- Hydraulic FilterHigh Pressure Filtration to 6 Micron ABS
- Total Weight35,500 lbs. (16,103 kg)
- Total WeightWith Wrenches: 112,580 lbs. (51,065 kg)
- Drill Angle10° – 18°
- Drill PipeRange II – 34 ft. (10.4 m)
- Length64 ft. 10 in. (19.5 m)
- Width8 ft. 2 in. (2.5 m)
- Height11 ft. 10.25 in. (3.6 m)
