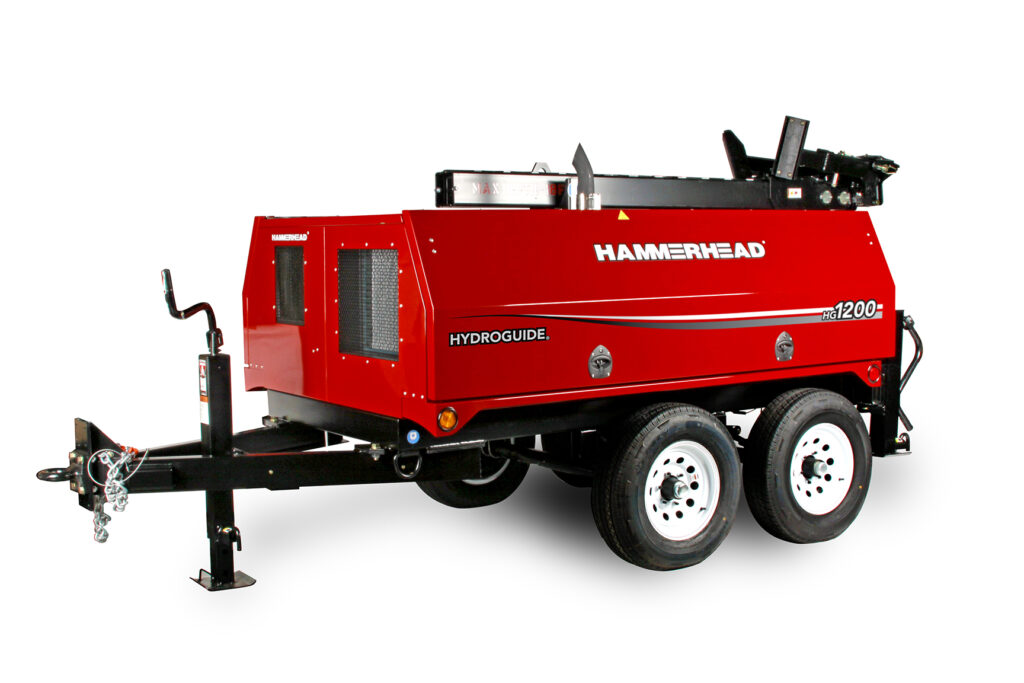

HammerHead HydroGuide HG1200 Winch

HammerHead HydroGuide HG1200 Winch

HammerHead HydroGuide HG1200 Winch

HydroGuide HG1200 Winch

HammerHead
HydroGuide Cable Winches

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

We know conditions and specifications on your jobsites can vary greatly. One week you’re bursting 12" clay and replacing it with 12" HDPE, the next you’re slitting 2" adyl-a pipe and replacing it with new 3" polyethylene. To accommodate a wide range of job situations, HammerHead® Trenchless designed the HydroGuide® HG1200 winch to be infinitely adjustable within its parameters to fit each specific job to a T. It features the patented, self-deploying hydraulic boom – an industry game-changer – that allows operators to easily adjust the depth up to 18 feet. Operators also have the ability to fine tune the line speed anywhere from 0-111 feet per minute, and to set the pull force anywhere between 0.5 tons and 12 tons. We put you in total control to help ensure success on even the most challenging jobs.

Auxiliary Hydraulic Connection, Standard
Optional Electrical Strike Identification (ESID)
Electric Start, Standard
Remote Hydraulics, Standard
Downrigger Light, Standard

Specifications

Rig Size L/W/H – IN (CM): 15.3/5.7/6.0 (4.7/1.8/1.8)
Max. Pulling Force – Tons (T): 12 (11)
Standard Downrigger Length – FT (M): 18 (5.49)
Weight – LB (KG): 7,660 (3,475)
Max. Line Speed – FPM (MPM): 111 (33.8)
Engine: Kubota® D1105, EPA Tier 4, EU Stage IV, Diesel
Horsepower – HP (KW) : 24.8 (18.5)
