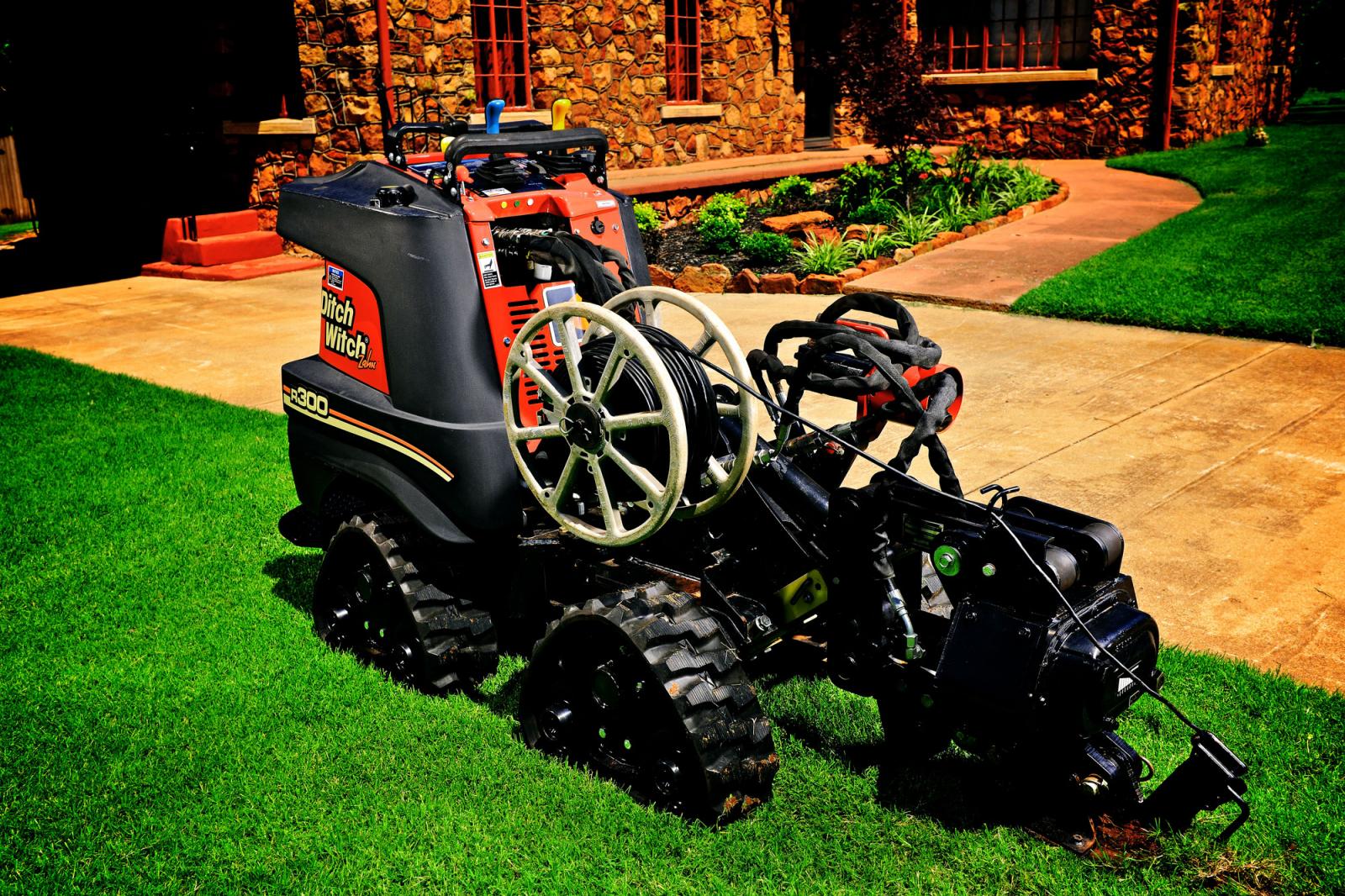

Ditch Witch Zahn® Vibratory Plow
Trenchers

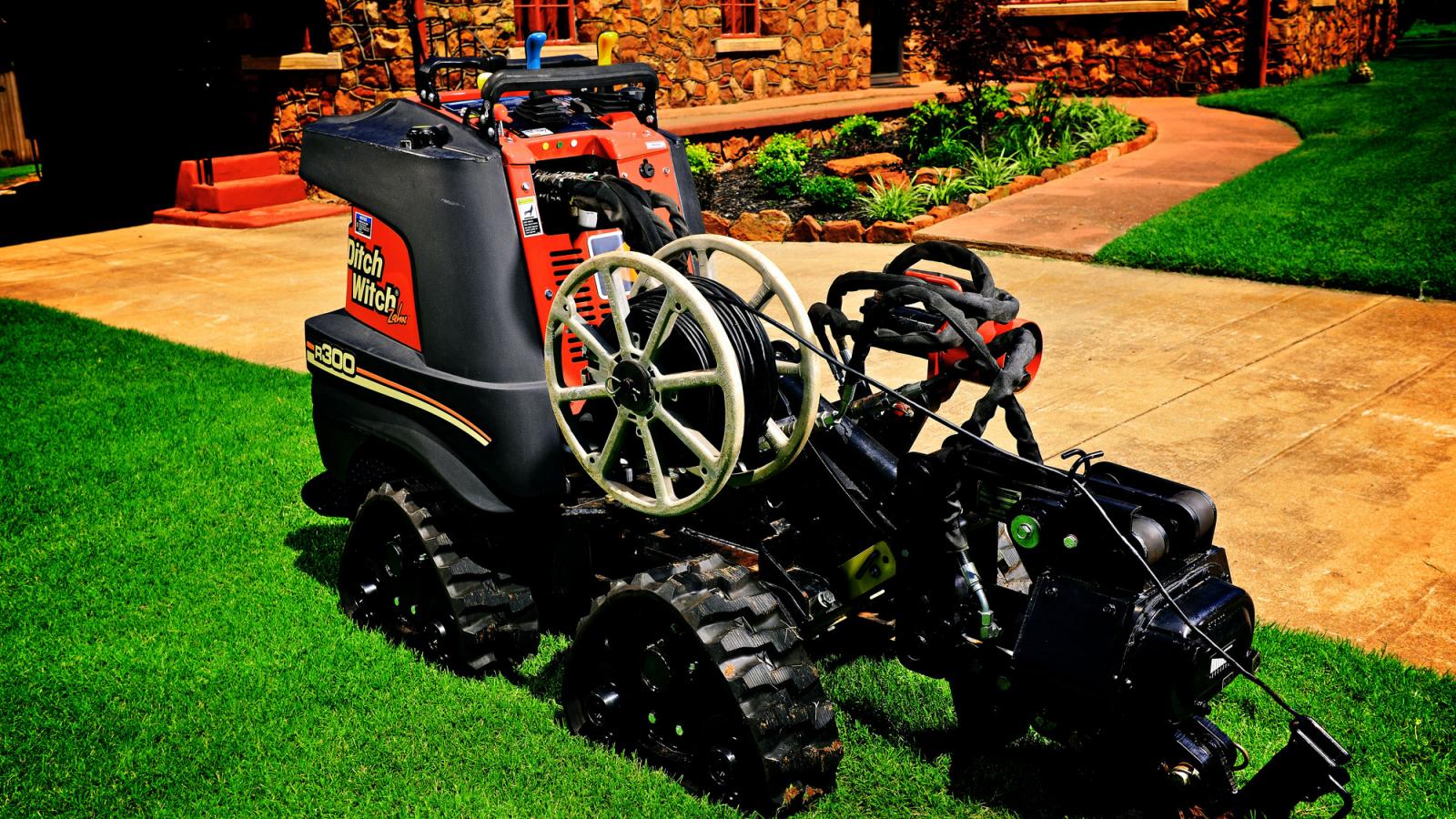

The Zahn vibratory plow is a utility contractor’s dream come true. With its extraordinary power, remarkable articulating ability and lightweight, compact size, you can install utility and communications cable and conduit in tight spaces, around troublesome obstacles and under delicate turf. The Zahn vibratory plow is compatible with the 4WD Zahn R300.
Equipment Features
Featured Content
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
Battery
SAE reserve capacity rating
32 min
SAE cold crank rating @ 0°F (-18°C)
200 amps
Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
Dimensions
U.S.
Metric
Mobile length
70 in
1.78 m
Wheelbase
34.2 in
869 mm
Tractor back to rear axle
26.8 in
681 mm
Rear axle to attachment mounting
19.2 in
488 mm
Attachment mounting to front axle
15 in
381 mm
Mobile height
53.5 in
1.36 m
Ground clearance
5.3 in
135 mm
Platform height
10.7 in
272 mm
Width
36 in
914 mm
Angles of departure
25°
Mass
1,290 lb
585 kg
Vehicle clearance circle (SAE) wall to wall
Right turn, 18 x9.5-8 tires
11.3 ft
3.44 m
Left turn, 18 x 9.5-8 tires
10.5 ft
3.2 m
Variable blade pitch allows operator to change the angle of the leading edge of the blade to be more or less aggressive, to match soil conditions.
Accepts standard Ditch Witch vibratory plow blades, eliminating the need to purchase new blades.
Optional sod cutter and skid shoes provide greater versatility and minimize restoration.
Optional reel carrier provides efficient installation of cable.
Power unit’s exclusive traction-assist feature provides extra drawbar on demand, enabling the operator to push more, pull more, and traverse soft ground with minimal tire slippage.
11-gallon (41.6 L) fuel tank enables the operator to work all day without having to refuel; the tank’s molded-in sight glass allows the operator to keep an eye on fuel consumption.
Standard cruise control, which locks in operating speeds, reduces operator fatigue and increases productivity.
Operation
U.S.
Metric
Ground drive speed, forward/reverse
Low
3.5 mph
5.6 km/h
High
5 mph
8 km/h
Power Train
U.S.
Metric
Parking brake
Mechanical, hand operated
Service brake
Ground drive speed/direction control brakes machine hydraulically when moved to neutral position
Tires/Pressure
U.S.
Metric
18 x 9.5-8, 2 ply, bar lug
12 psi
82.7 kPa
Tire assembly mass
22 lb
9.98 kg
Urethane filled 18 x 9.5-8, 2 ply, bar lug
N/A
Tire assembly mass
36 lb
16.33 kg
Urethane filled 20 x 10-8, ply, bar lug
N/A
Tire assembly mass
49 lb
22.23 kg
18 x 8.5-8, 2 ply, turf
22 psi
151.7 kPa
Tire assembly mass
20 lb
9.07 kg
Fluid capacities
U.S.
Metric
Fuel tank
9 gal
34.06 L
Engine oil, w/filter
2 qt
1.9 L
Hydraulic reservoir
7.7 gal
29.1 L
Total hydraulic system volume
8.5 gal
32.2 L
Power
U.S.
Metric
Engine
Kohler® CH750S
Fuel
Gasoline
Cooling medium
Air
Number of cylinders
2
Displacement
45.6 in3
747 cm3
Bore
3.3 in
83 mm
Stroke
2.7 in
69 mm
Manufacturer’s power rating
27 hp
20.1 kW
Rated speed
3,600 rpm
Hydraulic System
U.S.
Metric
Auxiliary
Gear pump
Flow rate
12 gpm
46 l/min
Pressure
3,000 psi
207 bar
Ground drive
Hydrostat
Flow rate
19.3 gpm
73 l/min
Pressure
3,500 psi
241 bar
Robust 30-hp (22.4-kW) Kohler® engine for maximum productivity.
Ergonomically designed operator’s station features soft-touch, color-coded controls that are easy to grip, easy to learn and provide smooth, easy operation.
Convenient cargo tray is large enough to store a water bottle, work gloves, cell phone or assorted tools.
