  • Power Plant



    Power Plant








    Engine
    Deutz TCD3.6L4




    Fuel
    Diesel




    Cooling Medium
    Liquid




    Injection
    Direct




    Aspiration
    Turbocharged, Charge Air Cooled




    Number of cylinders
    4




    Displacement
    221 in3
    3.6 L



    Bore
    3.86 in
    98 mm



    Stroke
    4.72 in
    120 mm



    Manufacturer’s gross power rating (SAE J1995)
    121 hp
    90 kW



    Estimated net power rating (SAE J1349)
    113 hp
    84 kW



    Rated speed
    2300 rpm
    2300 r/min



    Maximum engine tilt angles (Longitudinal)
    30°
    30°



    Maximum engine tilt angles (Lateral)
    30°
    30°



    Emissions compliance (highly regulated countries)
    EPA Tier 4 Final
    EU Stage IV



    Emissions compliance (less regulated countries)
    EPA Tier 4i
    EU Stage IIIb

  • Power

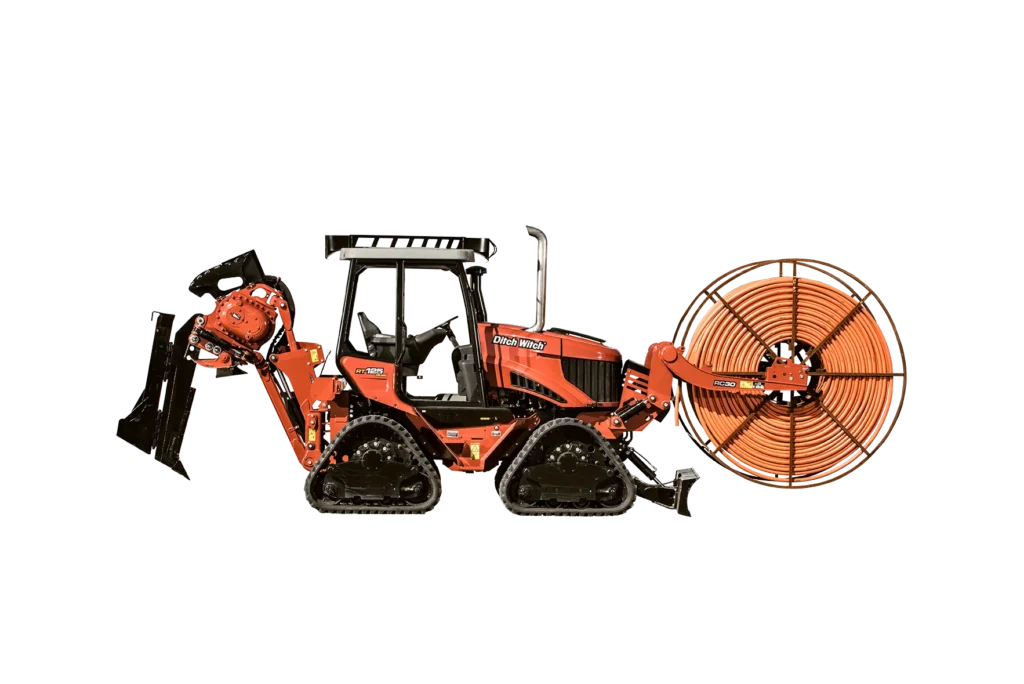

    RT125 Quad
    Power

    121-hp (90-kW) turbocharged Tier 4 Deutz® diesel engine and reliable hydrostatic transmission keep the RT125 Quad running strong all day long.

    Standard four-wheel drive make the RT125 Quad the ideal heavy-duty tractor for both paved and off-road work.

    When you need extra pull, the RT125 Quad’s three-speed, shift-on-the-fly ground drive senses load conditions and automatically adjusts for maximum performance.

    Heavy-duty, robust quad track frames—designed and built by the Ditch Witch organization—with each assembly weighing 1,500 lb (680.4 kg) which helps provide a low center of gravity for increased stability, production and drawbar.

  • Operator’s Station
    RT125 Quad
    Operator’s Station

    Newly designed operator’s station offers more comfort and convenience.

    Ergonomically designed rotating seat and controls console rotates 120 degrees with the operator for easier, more comfortable operation.

    Improved design adds plenty of leg room for greater comfort.

    Updated foot pedal design, easy-to-read gauges and controls and a tilt steering column provide maximum productivity.

    5-inch (127-mm) color LCD engine display provides all engine information and diagnostics while rotating with the operator so it’s always there for you to easily view.

    Rubber isolators between the cab and frame reduce vibration and provides a comfortable ride for the operator.

    Newly designed seat with a higher back provides more support and comfort for long days on the job.

  • Backfill Blade



    Backfill Blade

    U.S.
    Metric





    Blade width
    80 in
    2030 mm



    Blade height
    17 in
    430 mm



    Lift height above ground
    26 in
    660 mm



    Blade drop below ground
    10 in
    254 mm



    Maximum swing angle (left/right)
    30°
    30°



    Tilt angle (up/down)
    12°
    12°

  • Power Train



    Power Train








    Ground drive transmission
    hydrostatic




    Differentials
    planetary front and rear with rear steering




    Service brake
    hydrostatic




    Parking brake
    Disc Type, SAHR




    Tracks
    450x86x42, Rubber Track, Chevron Pattern




    Attachment drive transmission
    hydrostatic


  • Productivity
    RT125 Quad
    Productivity

    Best-in-class ground clearance of 15.5 inches (394 mm) helps the RT125 Quad be more productive over rough terrain.

    Innovative, long-lasting chevron-pattern tracks provide superior traction.

    Dial control design gives the operator precise control of the ground drive speed and attachments, maximizing production.

    Large selection of hydrostatic attachments—trencher, plow, earth saw, trencher/plow combo, plus a choice of front-mount utility backhoe or reel carrier—for greater productivity.

    Cruise-control system senses engine load and automatically adjusts ground drive speed for maximum production.

    Custom designed backfill blade control with an electronic float provides excellent controllability at your fingertips.

  • Battery (2 used)



    Battery (2 used)








    Group 65, SAE res. Cap 165 min., SAE cold crank @ 0° F (-18° C), 875 amp





    Auxiliary power outlet - 12 volt, 10 amp



  • Rugged Design
    RT125 Quad
    Rugged Design

    The RT125 Quad’s heavy-duty undercarriage is built for durability and long life.

    Plow attachment’s heavy-duty lift arms that transfer the RT125 Quad’s tremendous power and drawbar to the plow blade.

    Standard tilt-frame configuration helps you dig a vertical trench on uneven ground.

    Rear steering gives the RT125 Quad a tighter turn radius, resulting in better jobsite maneuverability and increased versatility while digging.

  • Superior Support
    RT125 Quad
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Hydraulic System



    Hydraulic System

    U.S.
    Metric





    Ground drive pump capacity @ 2300 rpm
    47 gpm
    180 L/min



    Ground drive pump relief pressure @ 2300 rpm
    6300 psi
    434bar



    Attachment pump capacity @ 2300 rpm
    45 gpm
    170.5 L/min



    Attachment pump relief pressure @ 2300 rpm
    6500 psi
    448 bar



    Auxiliary pump capacity @ 2300 rpm
    5.1 gpm
    19.3 L/min



    Auxiliary pump relief pressure @ 2300 rpm
    3000 psi
    206 bar

  • Operation



    Operation

    U.S.
    Metric





    Forward speeds (Low)
    2.0 mph
    3.2 k/h



    Forward speeds (Medium)
    4.4 mph
    7.1 k/h



    Forward speeds (High)
    7.2 mph
    11.6 k/h



    Reverse speeds (Low)
    2.0 mph
    3.2 k/h



    Reverse speeds (Medium)
    4.4 mph
    7.1 k/h



    Reverse speeds (High)
    4.7 mph
    7.5 k/h



    Vehicle clearance circle (SAE) wall to wall with backfill blade (Front steer only)
    42.4 ft
    12.9 m



    Vehicle clearance circle (SAE) wall to wall with backfill blade (Front and rear steer)
    21.6 ft
    6.6 m



    Ground clearance
    15.5 in
    394 mm



    Basic unit weight
    15,300 lb
    6940 kg



    Maximum allowable tractor weight
    27,200 lb
    12338 kg



    Front counterweight
    1300 lb
    590 kg



    Side counterweight (each)
    250 lb
    114 kg

  • Dimensions



    Dimensions

    U.S.
    Metric





    Angle of approach
    34°
    34°



    Height
    120 in
    3048 mm



    Nose to rear mount length
    126.3in
    3208 mm



    Length - transport
    166 in
    4216 mm



    Wheelbase
    79 in
    2007 mm



    Width
    89 in
    2261 mm



    Tread
    71 in
    1803 mm

  • Noise Levels



    Noise Levels








    Operator 91 dBA sound pressure per ISO 6394





    Exterior 109 dBA sound power per ISO 6393.





    Unless otherwise specified, all figures are for standard equipment only.





    Specifications are called out according to SAE recommended procedures.





    Due to selected options, delivered equipment may not necessarily match that described.





    Specifications are general and subject to change without notice.





    If exact measurements are required, equipment should be weighed and measured.



  • Fluid Capacities



    Fluid Capacities

    U.S.
    Metric





    Fuel tank
    38 gal
    144 L



    Engine oil
    8.5 qt
    8 L



    Hydraulic reservoir
    25 gal
    95 L



    Hydraulic system
    30 gal
    114 L



    Cooling system
    4.25 gal.
    16.1 L



    DEF tank
    2.6 gal
    10 L

  • Vibrational Level



    Vibrational Level








    Average vibration transmitted to the operator’s hand during normal operation is 2.9 m/sec2.





    Average vibration transmitted to the operator’s whole body during normal operation does not exceed 0.5 m/sec2.





    Operator seat per ISO 7096.
