  • Durable Blades
    ">
    MT12
    Durable Blades

    Blades are easily changeable on a jobsite with standard hand tools, saving operators time on the job and improving productivity.

    The unit can be equipped with a variety of unique saw blades, each designed to cut precise, clean, narrow trenches in one quick, efficient pass.

    Ditch Witch offers a complete line up of saw blades ranging from standard carbide-tipped blades to the Ditch Witch-exclusive PDC blades with diamond embedded carbide.

    The Ditch Witch-exclusive PDC blades further enhance machine performance and ROI. The durable, maintenance-free design is proven to last up to 10 times longer than standard blades.

  • Superior System
    ">
    MT12
    Superior System

    The MT12 is part of a complete microtrenching system specifically designed and configured for the Ditch Witch RT45, RT55 and RT80 ride-on trenchers.

    Vacuum excavation is used to remove spoils created by the saw blade during trenching to reduce cleanup time and labor expense.

    The Ditch Witch FX65 vacuum excavator equipped with a cyclonic separator to handle the dry, dusty spoils produced by microtrenching can be positioned either in front of the trencher or to the rear depending on jobsite needs.

  • Efficient Cut
    ">
    MT12
    Efficient Cut

    A floating saw shroud follows the ground contour with constant pressure to help clean out spoils and produce a sharper-edged cut.

    The MT12 saw articulates/flexes up to 6 degrees when following the machine path to allow a tighter cut radius. This enables operators to effectively cut on a 90-degree street corner or cul-de-sac.

    Equipped with a standard hydraulic plunge, the MT12 provides infinite variable depth control from 6 to 12 in (152.4 to 304.8 mm), eliminating the need for manual adjustment.

    The unit can be manually tilted 6 degrees to the right or left, helping operators maintain a true vertical trench on uneven surfaces.

    The MT12 is designed to hydraulically traverse 24 in (610 mm) from the center of the machine to the right, for easier trenching next to curbs and gutters.

  • MT12 on RT45



    MT12 on RT45

    U.S.
    Metric





    Angle of departure
    19°




    Trench depth
    6.5-12.5 in
    165-318 mm



    Blade diameter
    34 in
    864 mm



    Attachment height, transport
    68 in
    1727 mm



    Ground clearance at wheel
    24 in
    610 mm



    Length, transport (from CL of rear axle)
    75 in
    1905 mm



    Length, transport (from front of attachment)
    64 in
    1626 mm



    Length, working
    81 in
    2057 mm



    Saw offset distance
    24 in
    610 mm



    CL saw to CL unit (minimum offset)
    5.3 in
    135 mm



    Width, transport
    60.5 in
    1537 mm



    Width, max.
    67 in
    1702 mm



    Trench width
    0.50-1.5 in
    13-38 mm



    Spoils chute extension
    8.5 in
    216 mm



    CL unit to outside left tire (28x9 solid tires)
    28.5 in
    724 mm



    CL unit to end of traverse frame
    29.2 in
    742 mm



    Saw tilt adjustment
    +/- 6°




    Attachment weight (includes mount kit)
    1,400 lb
    636 kg



    Approximate minimum sawing radius - offset to right*
    35 ft
    10.7 m



    Saw motor displacement
    40.55 in3
    664cc



    Blade speed, variable
    0-160 rpm




    Vibration transmitted to the operator’s during normal operation





       Hand/Arm
    5.6 m/sec2




       Feet/Seat
    .62 m/sec2


  • MT12 on RT80



    MT12 on RT80

    U.S.
    Metric





    Angle of departure
    19°




    Trench depth
    6.5-12.5 in
    165-318 mm



    Blade diameter
    34 in
    864 mm



    Attachment height, transport
    68 in
    1727 mm



    Ground clearance at wheel
    24 in
    610 mm



    Length, transport (from front of attachment)
    65. in
    1651 mm



    Length, transport (from CL of rear axle)
    78 in
    1981 mm



    Length, working
    84 in
    2134 mm



    Saw offset distance
    24 in
    610 mm



    CL saw to CL unit (minimum offset)
    7 in
    178 mm



    Width, transport
    67.5 in
    1715 mm



    Width, max.
    74 in
    1880 mm



    Trench width
    0.50-1.5 in
    13-38 mm



    Spoils chute extension
    8.5 in
    216 mm



    CL unit to outside left tire (31x10 solid tires)
    31.5 in
    800 mm



    CL unit to end of traverse frame
    27.7 in
    704 mm



    Saw tilt adjustment
    +/- 6°




    Attachment weight (includes mount kit)
    1,480 lb
    673 kg



    Approximate minimum sawing radius - offset to right*
    35 ft
    10.7 m



    Saw motor displacement
    40.55 in3
    664cc



    Blade speed, variable
    0-175 rpm




    Vibration transmitted to the operator’s during normal operation





    Hand/Arm
    5.2 m/sec2




    Feet/Seat
    .32 m/sec2


  • Innovative
    ">
    MT12
    Innovative

    Ditch Witch provides the most dedicated offerings to support the deployment of underground fiber installation, including microtrenching systems.

    Based on direct feedback from underground construction operators, Ditch Witch microtrenching equipment is the industry leader, helping you get fiber jobs done efficiently with less time and expense.

    The versatile MT12 can also be used for other roadway applications, including cutting expansion joints, utility repair and maintenance.

    If desired, the MT12 can include onboard chutes that deposit spoils along the side of the trench for easy cleanup without the use of a vacuum excavator on-site.

  • Productivity
    ">
    MT12
    Productivity

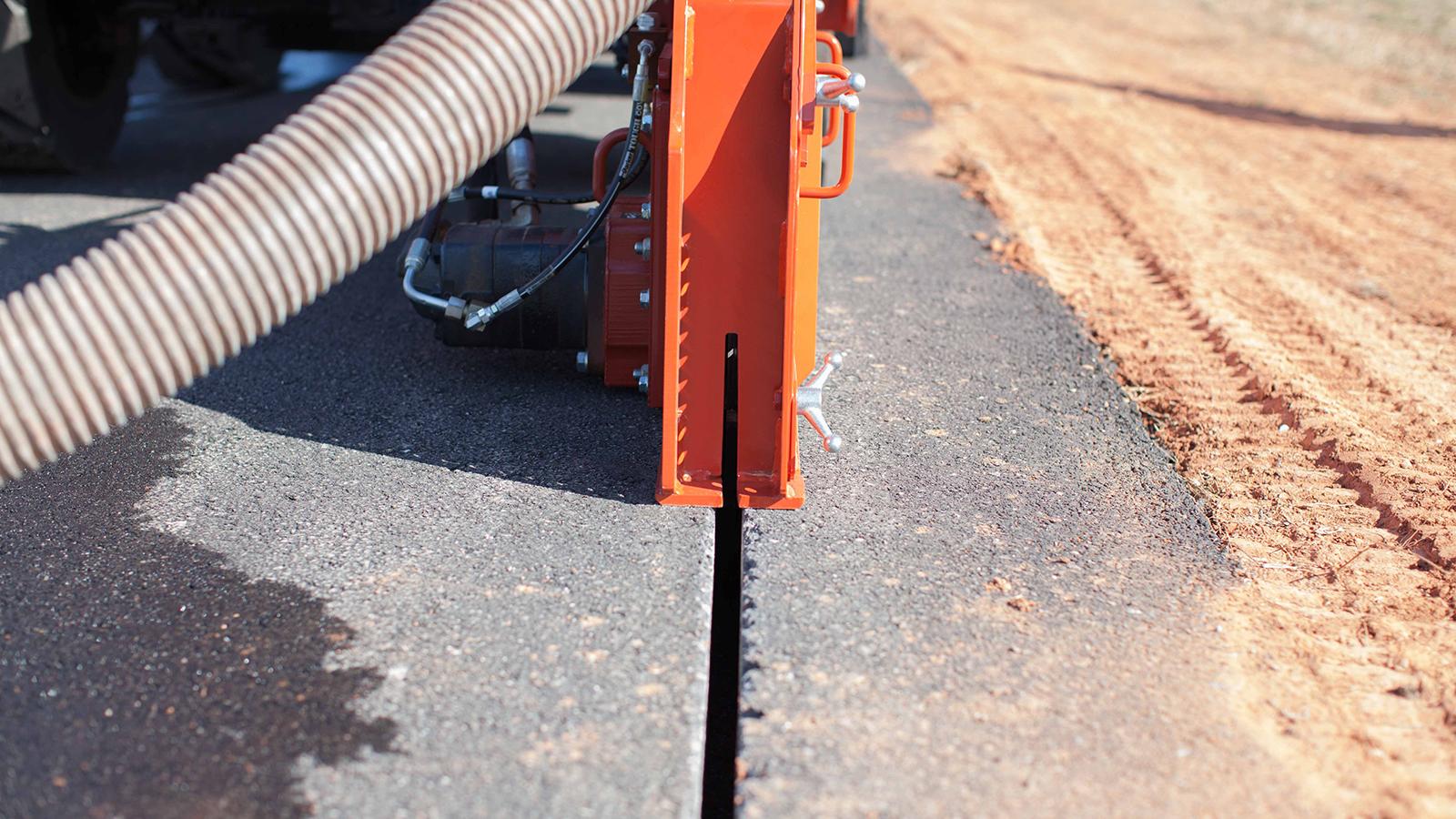

    The MT12 creates an ideal trench for fiber-optic cable installation – from 0.5 to 1.5 in (12.7 to 38.1 mm) wide, and up to 12 in (304.8 mm) deep.

    The narrow, small trench enables contractors to install fiber shallower than other utilities with minimal disruption to the surrounding infrastructure, improving safety and saving time and money.

    Designed specifically for faster fiber installation, the MT12 helps contractors reduce cost-per-foot beyond traditional installation methods.

    To meet each individual’s jobsite needs, the unit can be equipped with the choice of a proven, standard-speed motor for general asphalt conditions, or a high-speed motor for concrete applications.

  • Superior Support
    ">
    MT12
    Superior Support

    Part of a complete Ditch Witch microtrenching system that includes a specially configured Ditch Witch RT45 or RT55 trencher and an FX65 vacuum excavator equipped with a cyclonic separator to handle the dry, dusty spoils produced by microtrenching.

    The FX65 vacuum excavator, which can be positioned either in front of the trencher or to the rear, removes spoils as they are created by the saw blade, reducing cleanup time and labor expense.

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • MT12 on RT55



    MT12 on RT55

    U.S.
    Metric





    Angle of departure
    19°




    Trench depth
    6.5-12.5 in
    165-318 mm



    Blade diameter
    34 in
    864 mm



    Attachment height, transport
    68 in
    1727 mm



    Ground clearance at wheel
    24 in
    610 mm



    Length, transport (from CL of rear axle)
    78 in
    1981 mm



    Length, transport (from front of attachment)
    65. in
    1651 mm



    Length, working
    84 in
    2134 mm



    Saw offset distance
    24 in
    610 mm



    CL saw to CL unit (minimum offset)
    7 in
    178 mm



    Width, transport
    67.5 in
    1715 mm



    Width, max.
    74 in
    1880 mm



    Trench width
    0.50-1.5 in
    13-38 mm



    Spoils chute extension
    8.5 in
    216 mm



    CL unit to outside left tire (31x10 solid tires)
    31.5 in
    800 mm



    CL unit to end of traverse frame
    27.7 in
    704 mm



    Saw tilt adjustment
    +/- 6°




    Attachment weight (includes mount kit)
    1,480 lb
    673 kg



    Approximate minimum sawing radius - offset to right*
    35 ft
    10.7 m



    Saw motor displacement
    40.55 in3
    664cc



    Blade speed, variable
    0-175 rpm




    Vibration transmitted to the operator’s during normal operation





    Hand/Arm
    5.2 m/sec2




    Feet/Seat
    .32 m/sec2
